1. The CK80CNC Fully Automatic Punching Machine (Single-Station) is designed for automatic punching processing of zinc alloy fence tubes, steel pipes, and various metal profiles. It is suitable for large-diameter tube punching applications with stable and efficient operation.

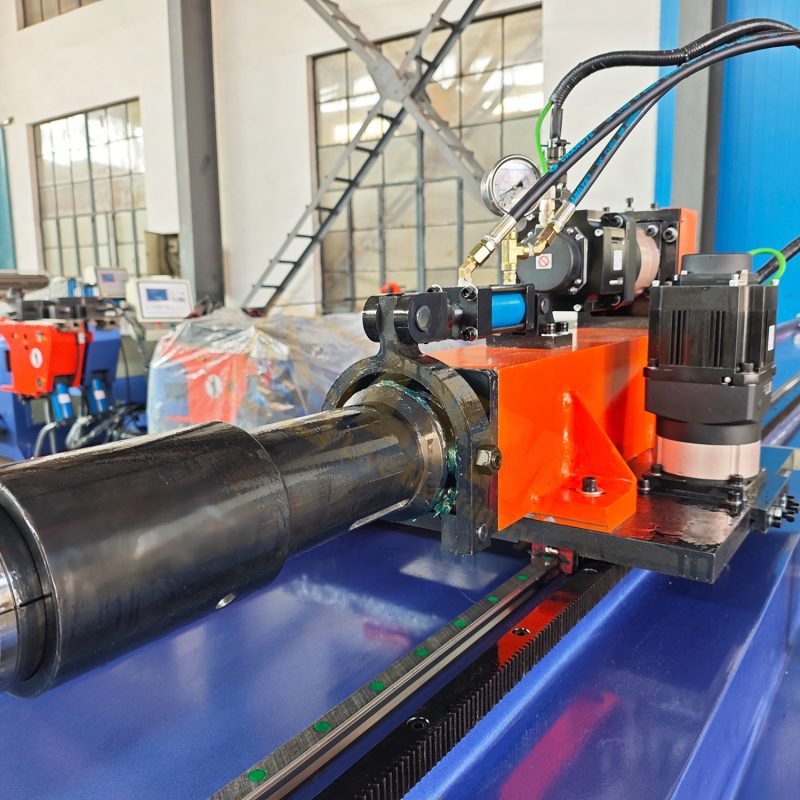

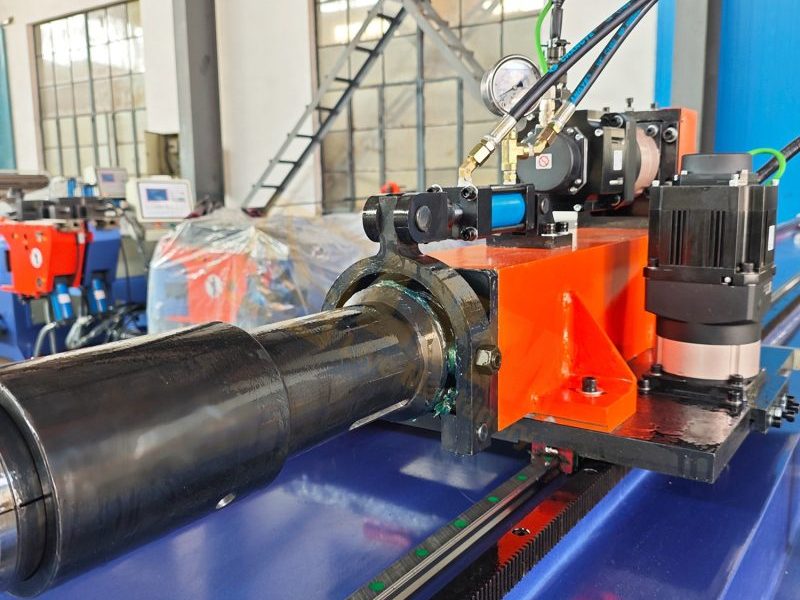

2. The machine adopts a CNC automatic control system with servo motor transmission, providing accurate pipe feeding, precise pipe rotation, and stable punching performance during continuous production.

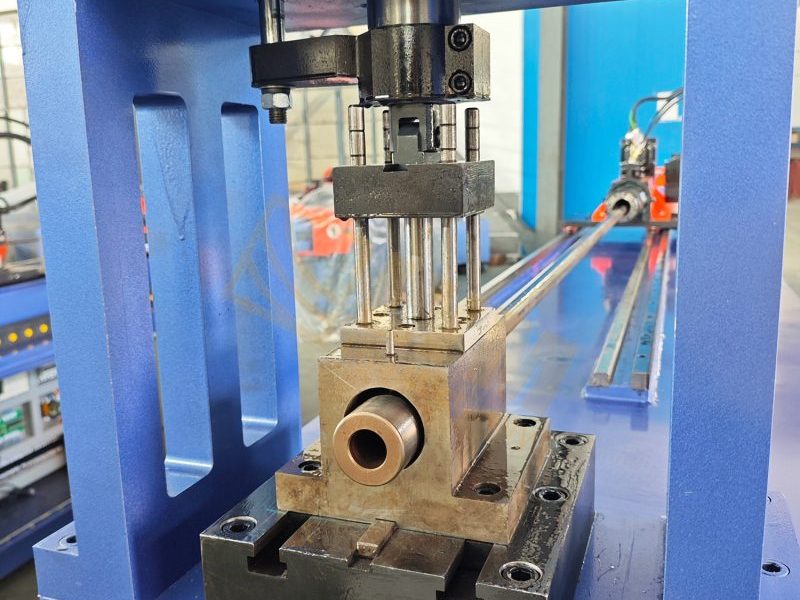

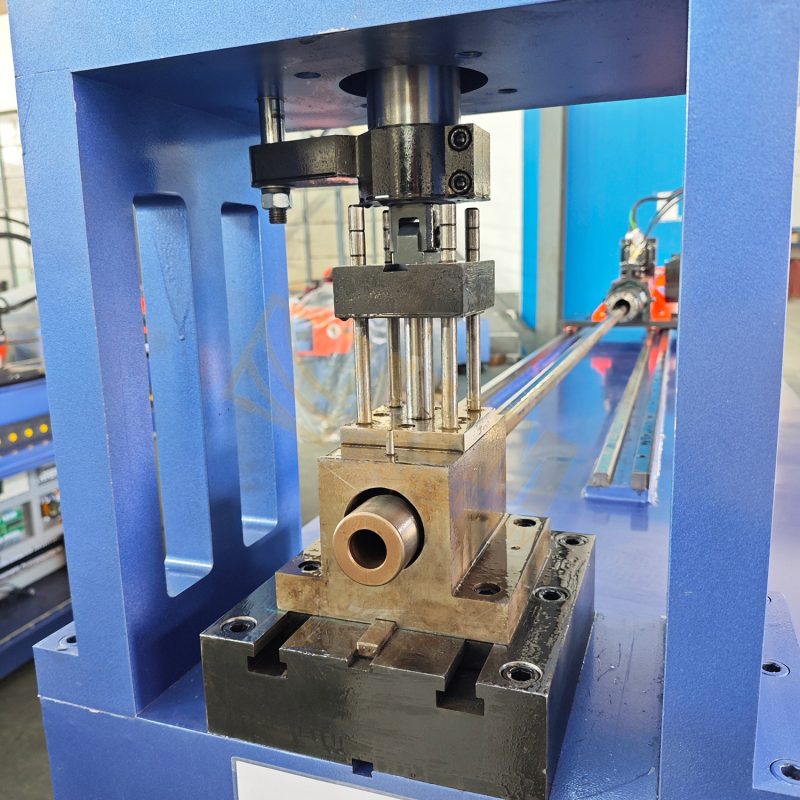

3. Equipped with a hydraulic punching system and hydraulic clamping structure, the machine delivers strong punching force, stable positioning, and reliable processing quality for different metal tube materials.
4. The machine supports automatic feeding, automatic rotation, and multi-group parameter storage functions, significantly improving production efficiency while reducing manual labor requirements.

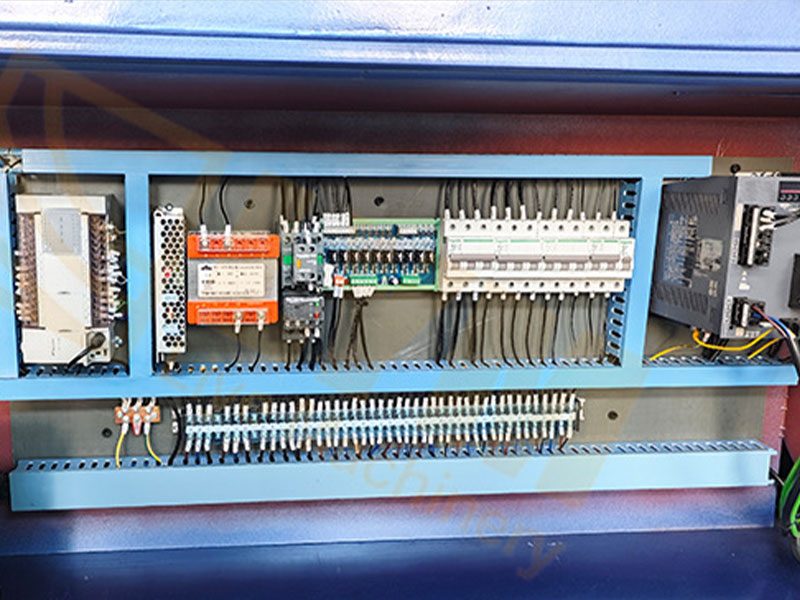

5. With high positioning accuracy, multilingual operation support, and customizable electrical configuration, the machine is suitable for industrial fence, guardrail, and metal tube processing applications.
| CK80CNC Fully Automatic Punching Machine (Single-Station) | |
| Maximum Punching Pipe Diameter (Steel Pipe): 80×3.5MM | Hydraulic Working Pressure: 12MPA |
| Maximum Single Pipe Feeding Length: 6000MM (customizable) | Number of Storable Programs: 20 Groups |
| Maximum Hole Types: One | Machine Dimensions: 8240×1120×1900MM |
| Maximum Pipe Rotation Speed: 90°/s | Machine Weight: 2880KG |
| Maximum Pipe Feeding Speed: 500MM/s | Punching Method: Hydraulic Cylinder |
| Pipe Rotation Accuracy: ±0.1° | Pipe Clamping Method: Hydraulic Cylinder |
| Pipe Feeding Accuracy: ±0.1MM | Pipe Feeding Method: Servo Motor + Reducer |
| Pipe Rotation Servo Motor Power: 1KW | Pipe Rotation Method: Servo Motor + Reducer |
| Feeding Servo Motor Power: 1.5KW | Operating Language: Chinese/English |
| Motor Power: 7.5KW | Power Supply: 380V 50HZ Three-Phase (customizable) |

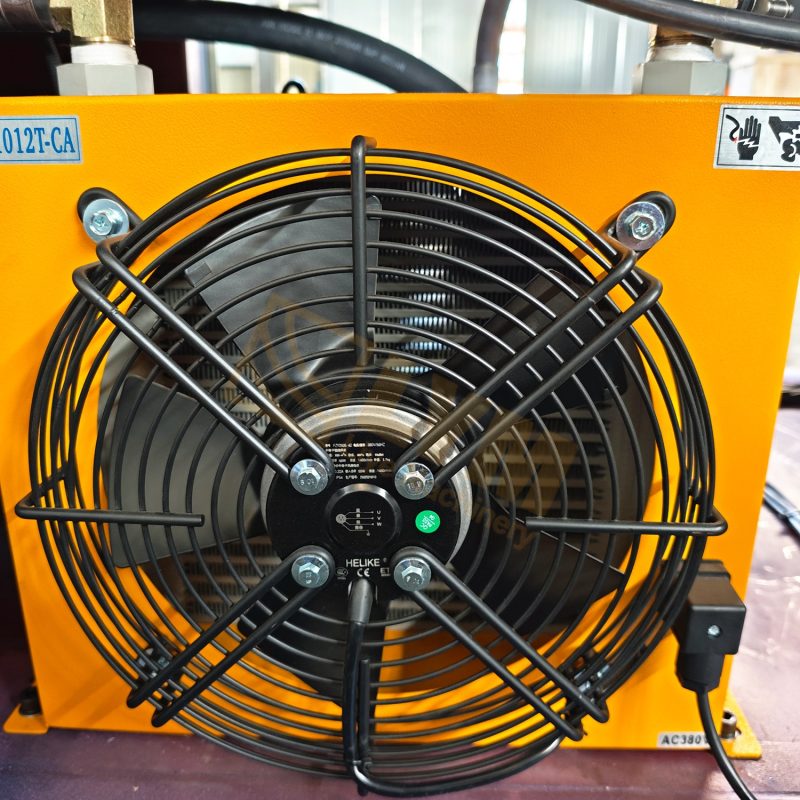

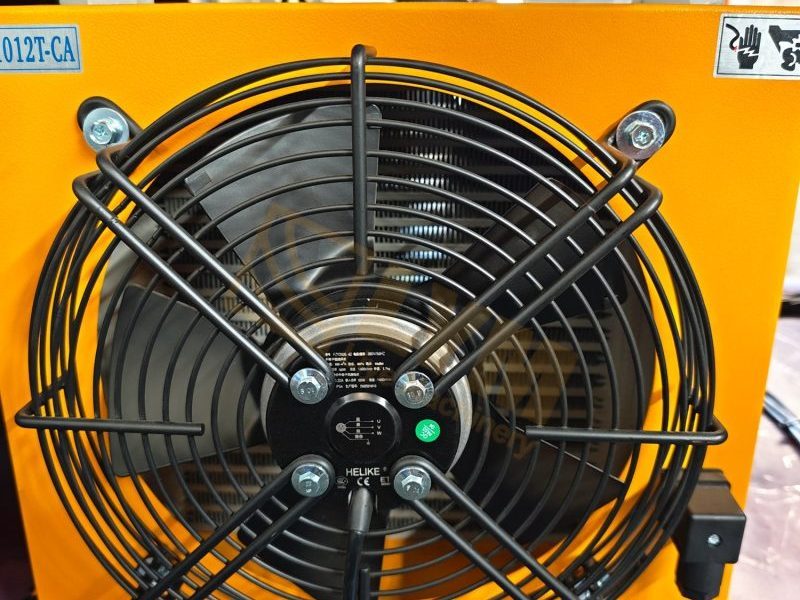

| Air Source: 0.7-0.8MPA (Air) | Hydraulic Oil Cooling Method: Air Cooler |
