1. The CK60CNC Integrated Cutting, Arc Punching, and Hole Punching Machine is designed for fully automatic processing of zinc alloy fence tubes, steel pipes, and various metal profiles. It integrates cutting, arc notching, and punching functions into one machine.

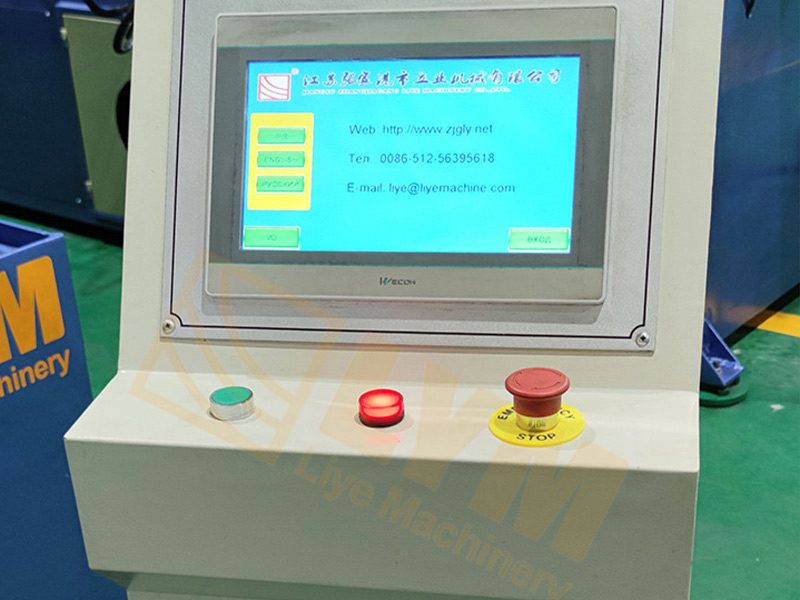

2. The machine adopts a fully automatic CNC control system with servo motor transmission, providing high-speed feeding, precise positioning, and stable processing performance for continuous industrial production.

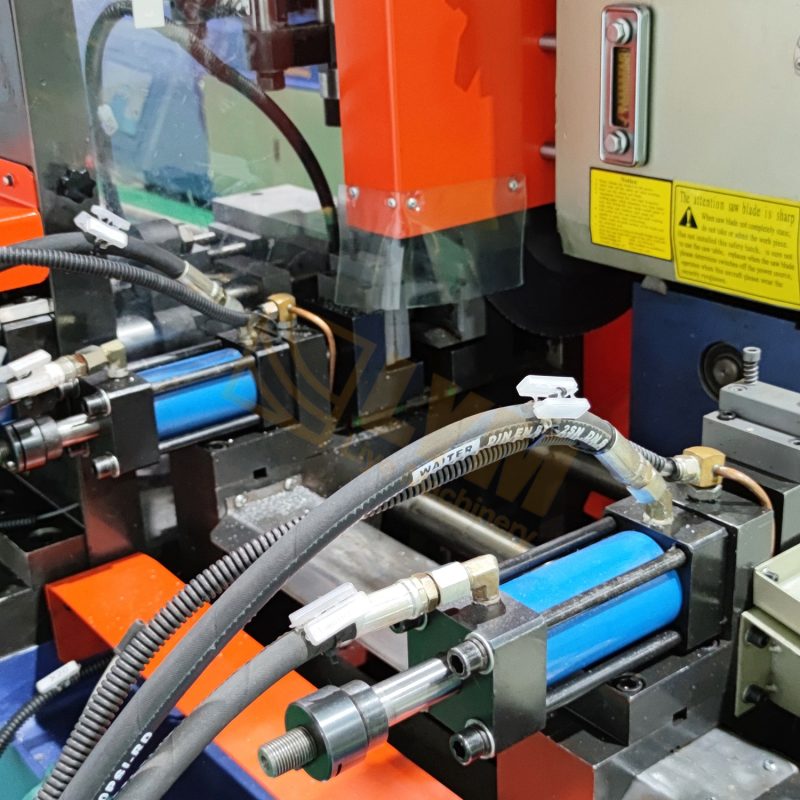

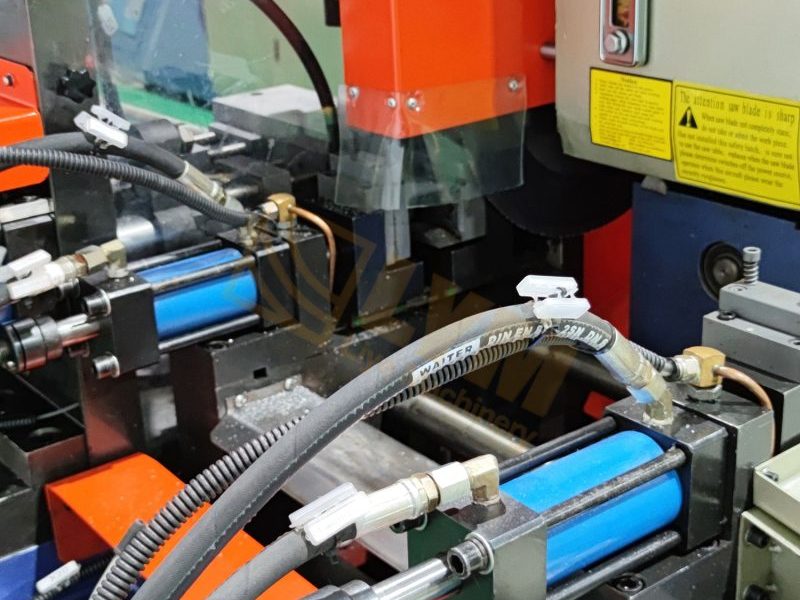

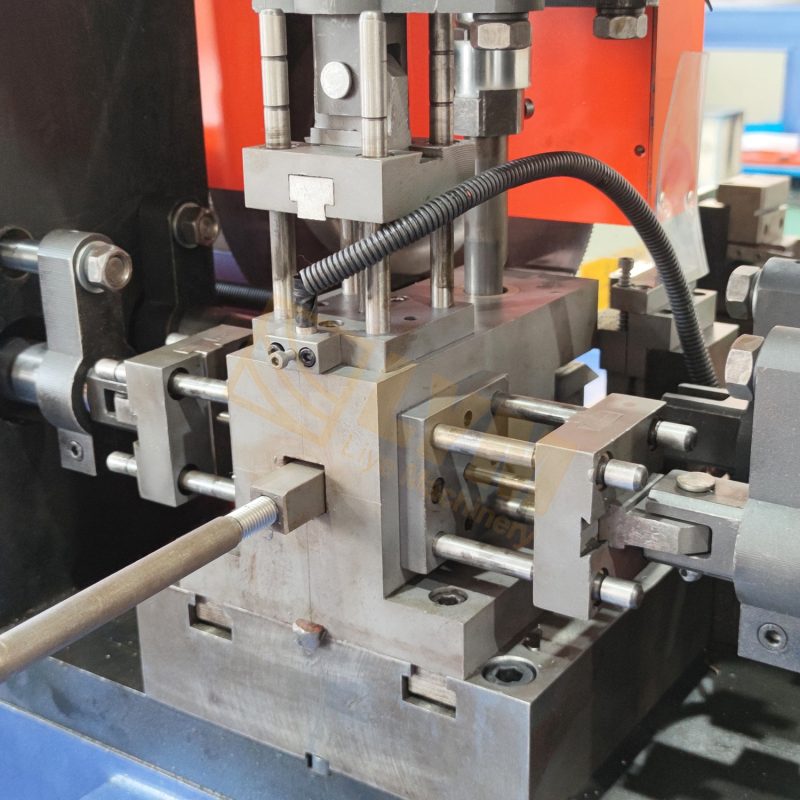

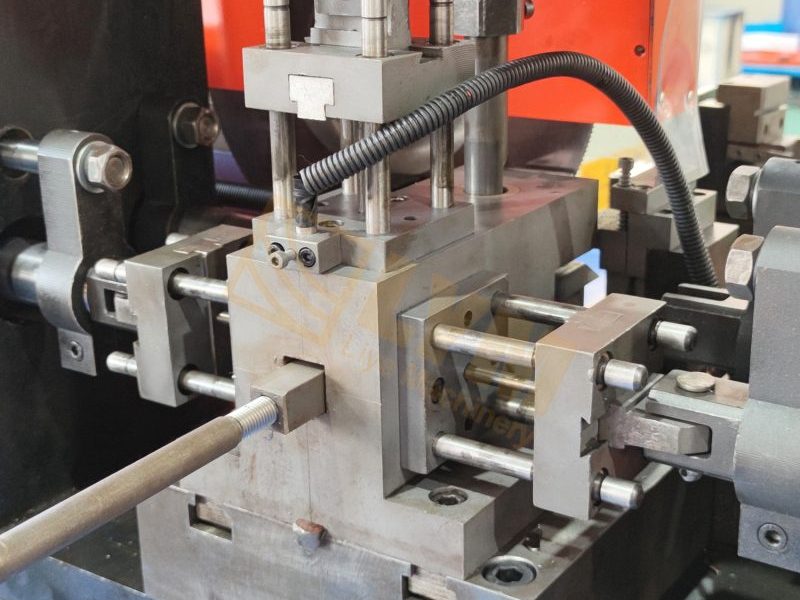

3. Equipped with hydraulic punching and arc punching systems, the machine ensures strong processing force, accurate forming quality, and stable operation for different metal tube applications.
4. The machine supports multi-group parameter storage, automatic pipe rotation, automatic feeding, and tail material pulling functions, greatly improving production efficiency and reducing labor costs.

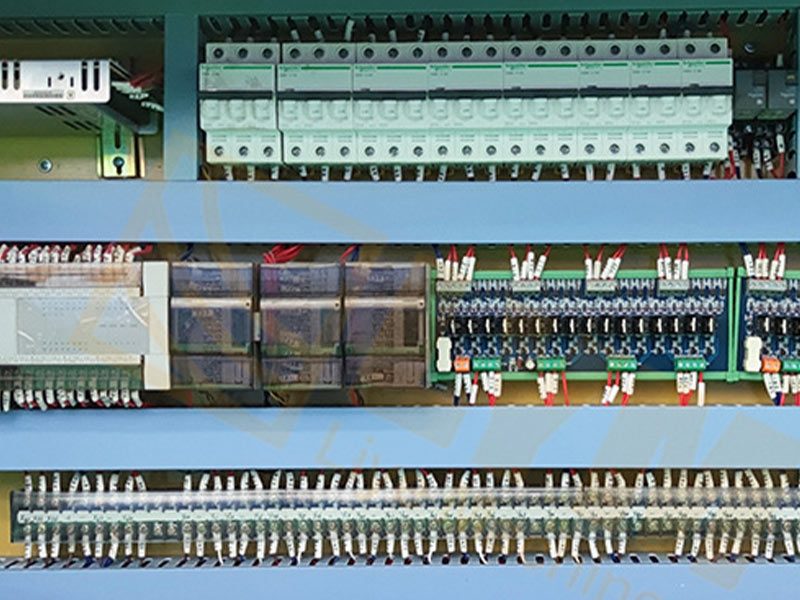

5. With high processing precision, low operating noise, multilingual operation support, and customizable electrical configuration, the machine is suitable for large-scale intelligent tube processing applications.
| CK60CNC Cutting, Arc Punching & Hole Punching Integrated Machine | |
| Maximum Punching Pipe Diameter (Steel Pipe): 60×2MM | Maximum Pipe Rotation Speed: 160°/s |
| Maximum Pipe Feeding Length: 6500MM (customizable) | Pipe Feeding Method: Servo Motor + Reducer |
| Hydraulic Working Pressure: 12MPA | Maximum Tail Material Pulling Speed: 300MM/s |
| Applicable Saw Blade: Φ300-Φ350×Φ32MM | Pipe Rotation Method: Servo Motor + Reducer |
| Number of Storable Programs: 20 Groups | Product Length Accuracy: ±0.15MM |
| Cutting Head Motor: 3.3/4.0KW Dual-Speed Motor | Tail Material Pulling Method: Servo Motor |
| Machine Dimensions: 9600×1550×2050MM | Hole Distance Accuracy: ±0.15MM |
| Saw Blade Speed: 35/70RPM, 60/120RPM | Operating Language: Chinese/English/Russian |
| Machine Weight: 5000KG | Arc Punching Accuracy: ±0.15MM |
| Punching Speed: 15 times/min | Working Noise: ≤60DB |
| Punching Method: Hydraulic Cylinder | Cutting Head Feeding Servo Motor Power: 1KW |
| Arc Punching Speed: 1.55 times/min | Power Supply: 380V 50HZ Three-Phase (customizable) |
| Arc Punching Method: Hydraulic Cylinder | Pipe Feeding Servo Motor Power: 1KW |
| Maximum Pipe Cutting Speed: 50MM/s | Air Source: 0.7-0.8MPA (Air) |
| Pipe Clamping Method: Hydraulic Cylinder | Pipe Rotation Servo Motor Power: 750W |
| Maximum Pipe Feeding Speed: 800MM/s | Hydraulic Oil Cooling Method: Air Cooler |
| Cutting Head Feeding Method: Servo Motor + Reducer | Tail Material Servo Motor Power: 450W |
| Motor Power: 5.5KW | Saw Blade Cooling Method: Coolant Atomization |
