1. The CK60CNC Fully Automatic Punching Machine (Four-Station) is designed for automatic punching processing of zinc alloy fence tubes, steel pipes, and various metal profiles. It supports multi-hole punching operations with high efficiency and precision.

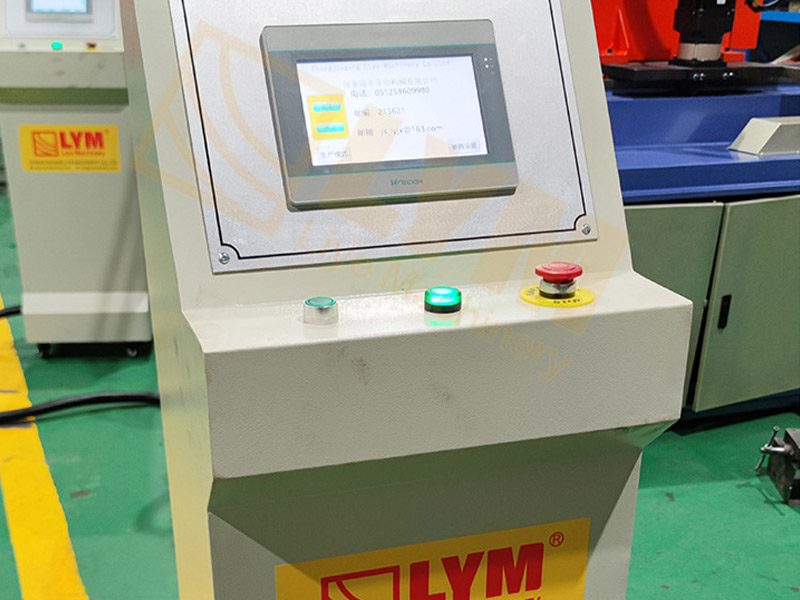

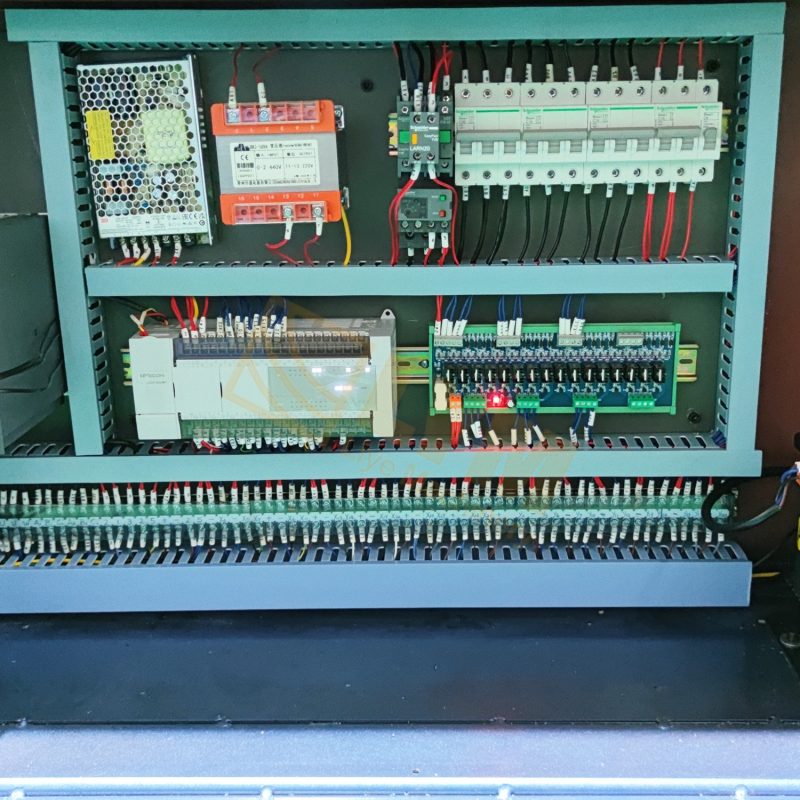

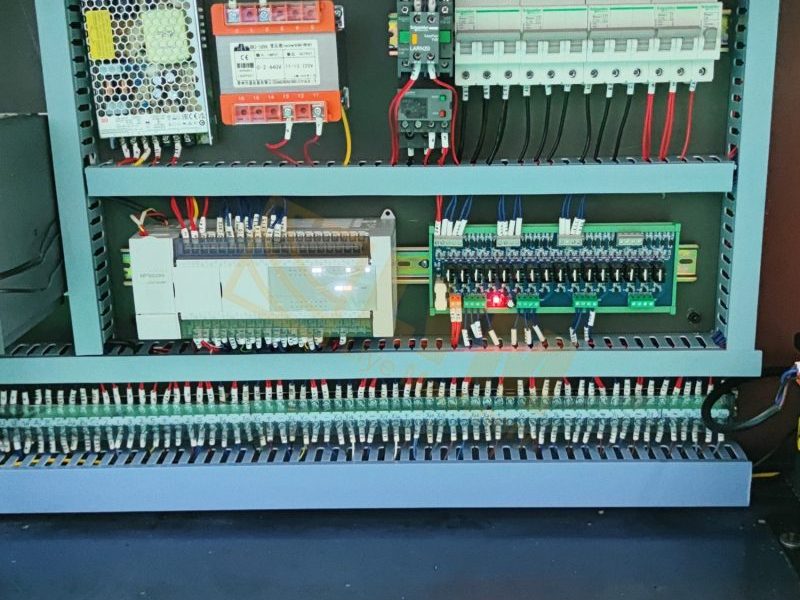

2. The machine adopts a CNC automatic control system with servo motor transmission, providing accurate pipe feeding, precise rotation control, and stable punching performance during continuous production.

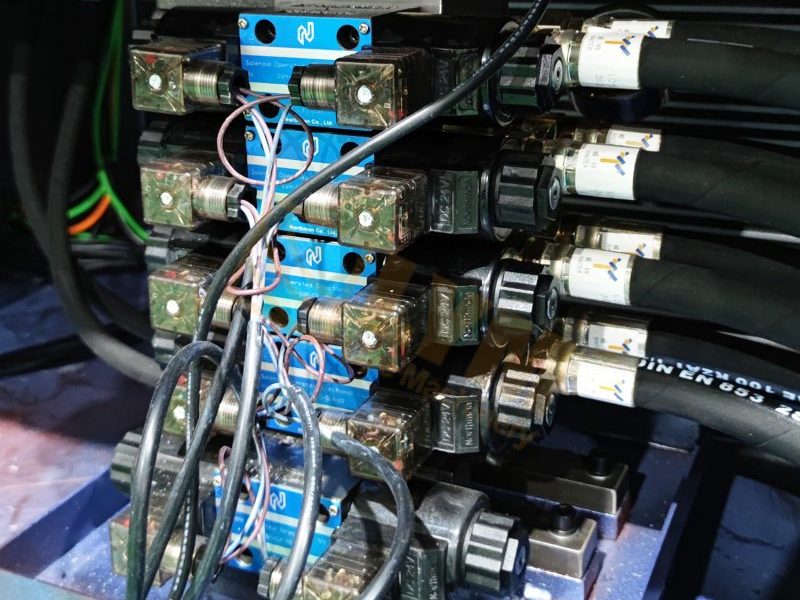

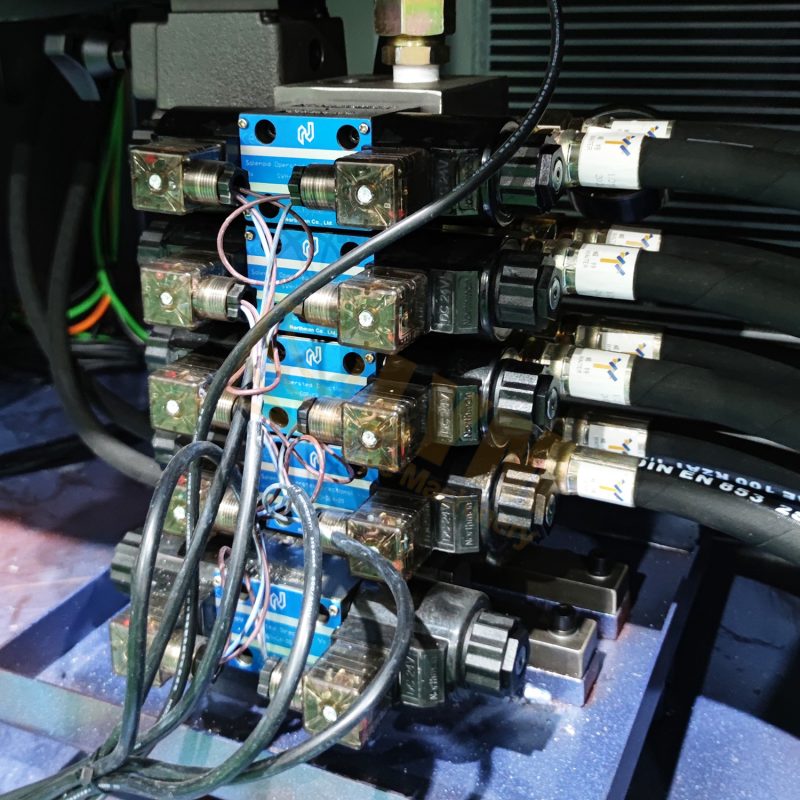

3. Equipped with a hydraulic punching system and hydraulic clamping structure, the machine delivers strong punching force, stable positioning, and reliable processing quality for different metal tube materials.
4. The machine supports automatic pipe feeding, automatic pipe rotation, and multi-group parameter storage functions, significantly improving production efficiency while reducing manual labor costs.
5. With high positioning accuracy, multilingual operation support, and customizable electrical configuration, the machine is suitable for industrial fence, guardrail, and metal tube processing applications.
| CK60CNC Fully Automatic Punching Machine (Four-Station) | |
| Maximum Punching Pipe Diameter (Steel Pipe): 60×3MM | Machine Dimensions: 3380×1160×1800MM |
| Maximum Single Pipe Feeding Length: 1500MM (customizable) | Machine Weight: 1680KG |
| Maximum Hole Types: Four | Punching Method: Hydraulic Cylinder |

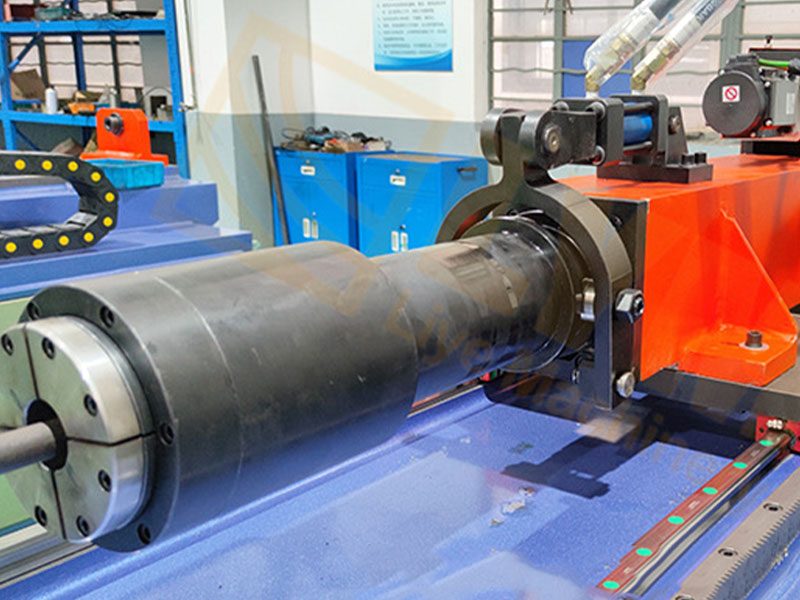

| Maximum Pipe Rotation Speed: 160°/s | Pipe Clamping Method: Hydraulic Cylinder |
| Maximum Pipe Feeding Speed: 800MM/s | Pipe Feeding Method: Servo Motor + Reducer |

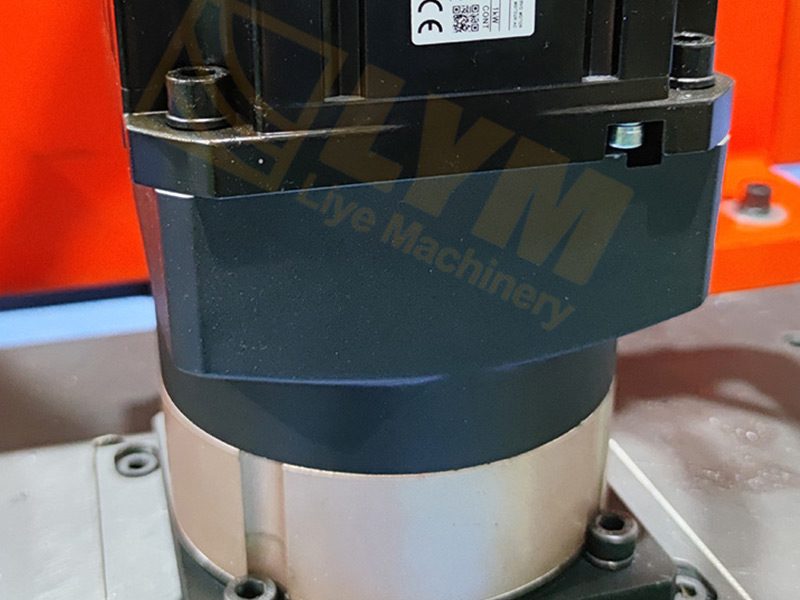

| Pipe Rotation Accuracy: ±0.1° | Pipe Rotation Method: Servo Motor + Reducer |
| Pipe Feeding Accuracy: ±0.1MM | Operating Language: Chinese/English |
| Pipe Feeding Servo Motor Power: 1KW | Power Supply: 380V 50HZ Three-Phase (customizable) |
| Pipe Rotation Servo Motor Power: 750W | Air Source: 0.7-0.8MPA (Air) |
| Motor Power: 5.5KW | Hydraulic Oil Cooling Method: Air Cooler |
| Hydraulic Working Pressure: 12MPA | Number of Storable Programs: 20 Groups |
