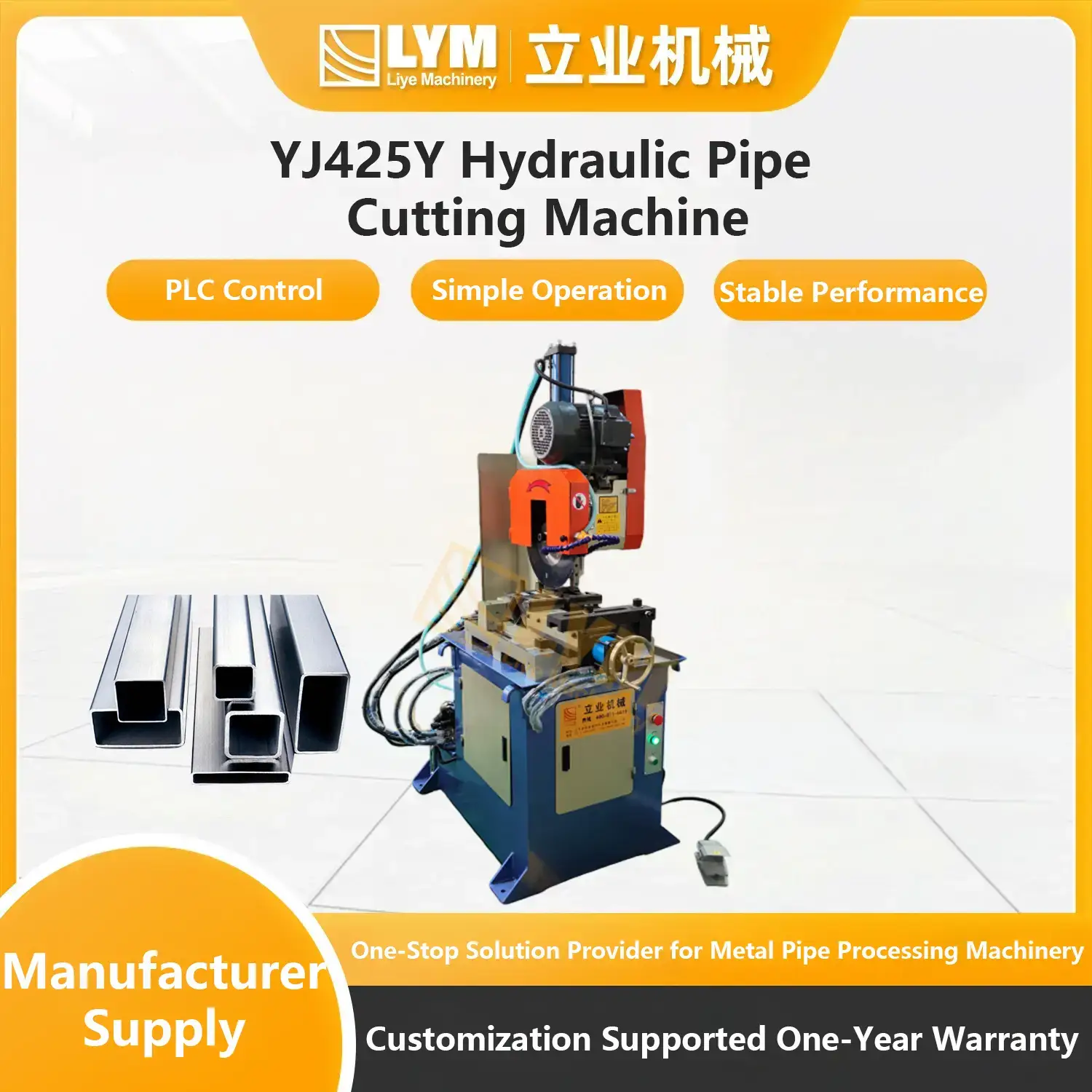

YJ425Y Hydraulic Pipe Cutting Machine

YJ425Y Hydraulic Pipe Cutting Machine

  • YJ425Y Hydraulic Pipe Cutting Machine is a robust and efficient metal pipe cutting solution designed for stable and precise processing.
Order phone:+86-13812981723
E-mail:liye@liyemachine.com

Detail

Features

1. YJ425Y Hydraulic Pipe Cutting Machine is a robust and efficient metal pipe cutting solution designed for stable and precise processing. Powered by a hydraulic cutting system, the machine delivers strong and consistent cutting force, ensuring smooth operation and reliable performance in industrial environments.

2. Equipped with a durable structure and adjustable cutting angle capability, the YJ425Y can handle various metal pipes and profiles with high stability. The machine also features hydraulic clamping to firmly secure the material during cutting, while the cooling system helps extend saw blade life and maintain cutting quality.

3. With its simple operation, stable performance, and reliable hydraulic power, the YJ425Y is widely used in metal fabrication, construction materials processing, automotive components, and general manufacturing industries where efficient pipe cutting is required.


YJ425Y Hydraulic Pipe Cutting Machine Specifications
Gearbox Type Model 425 (Full Gear Transmission)
Maximum Cutting Capacity Φ140mm (Iron Pipe, 90° Straight Cut)
Applicable Saw Blade Φ315 – Φ450mm
Saw Blade Speed 36 / 72 RPM or 60 / 120 RPM
Angle Adjustment Range Right Cut 35° / Left Cut 45°
Angle Cutting Accuracy ±1°
Clamping Type Front & Rear Clamping
Cooling Pump Motor 90 W
Main Motor Power 3.3 / 4.0 kW
Hydraulic System Motor 1.5 kW
Working Pressure 70 MPa
Machine Dimensions 1380 × 900 × 1980 mm
Machine Weight 700 kg
Power Supply 380V 50Hz Three-Phase (Customizable)
Cutting Method Hydraulic Cylinder
Clamping Method Hydraulic Cylinder
Saw Blade Cooling System Circulating Water
Cutting Feed Speed Stepless Speed Adjustment

Details

YJ425Y Hydraulic Pipe Cutting Machine插图

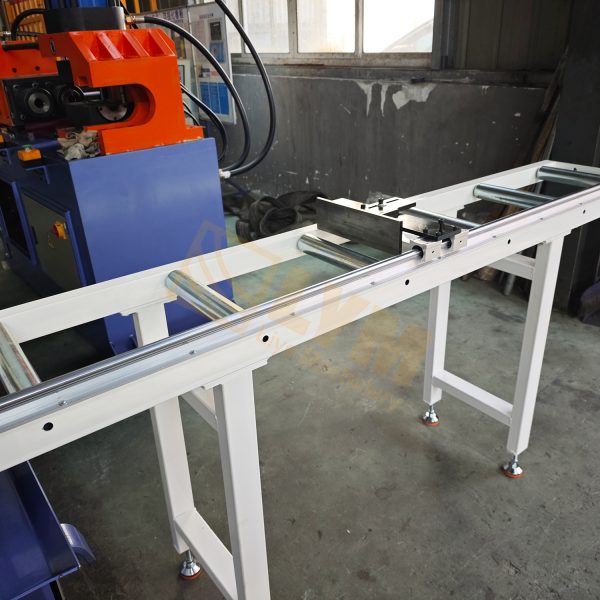

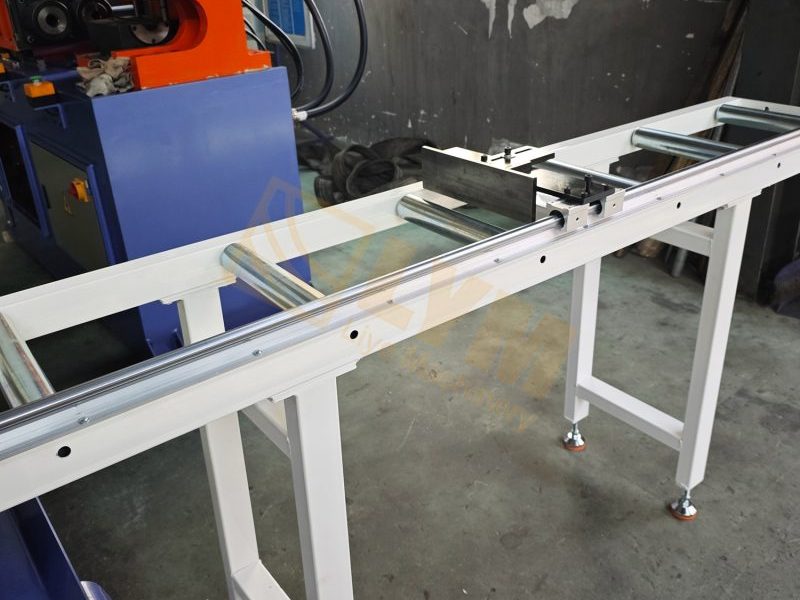

Material unloading rack (with positioning)

YJ425Y Hydraulic Pipe Cutting Machine插图1

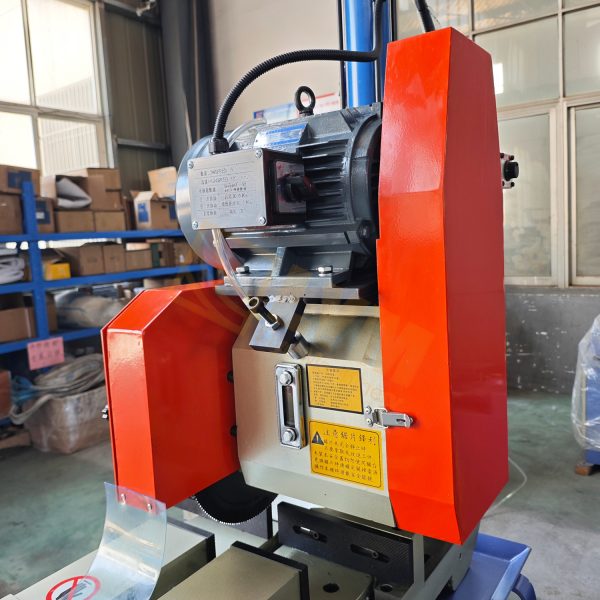

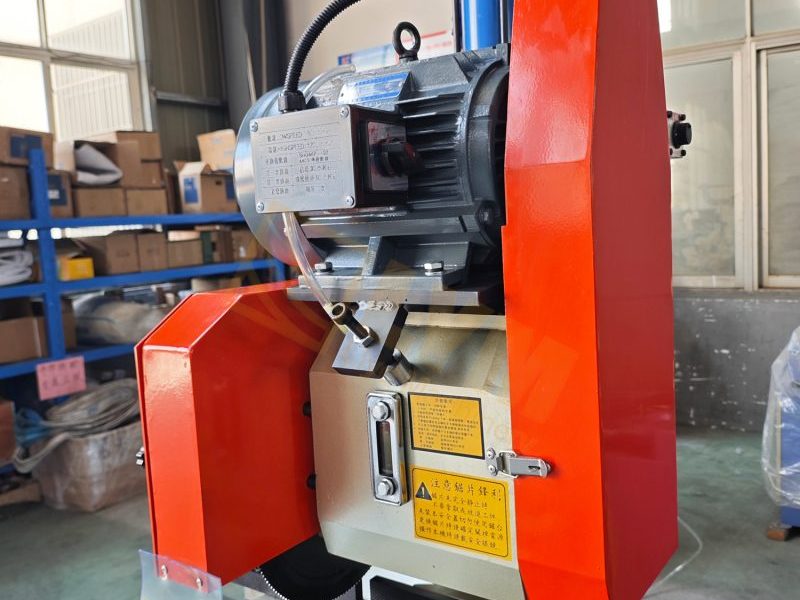

Head unit Components

YJ425Y Hydraulic Pipe Cutting Machine插图2

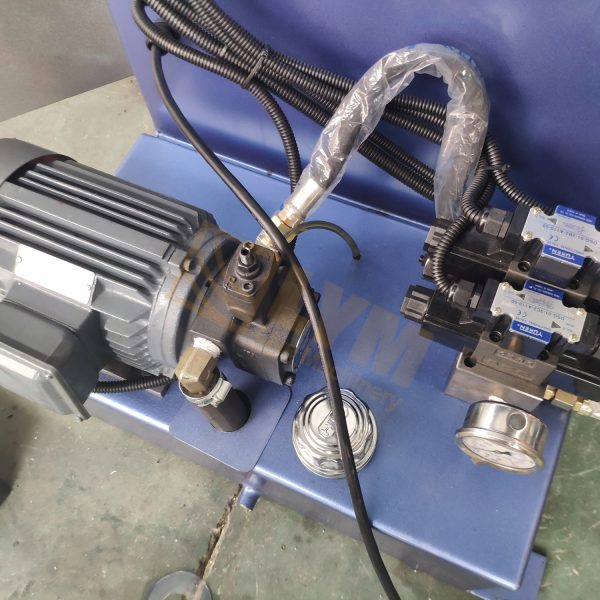

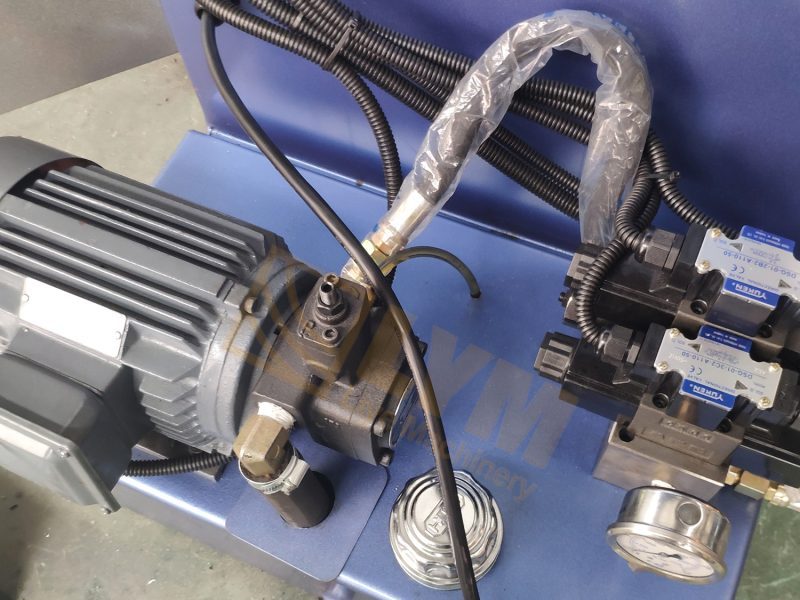

Hydraulic system motor + valve group

YJ425Y Hydraulic Pipe Cutting Machine插图3

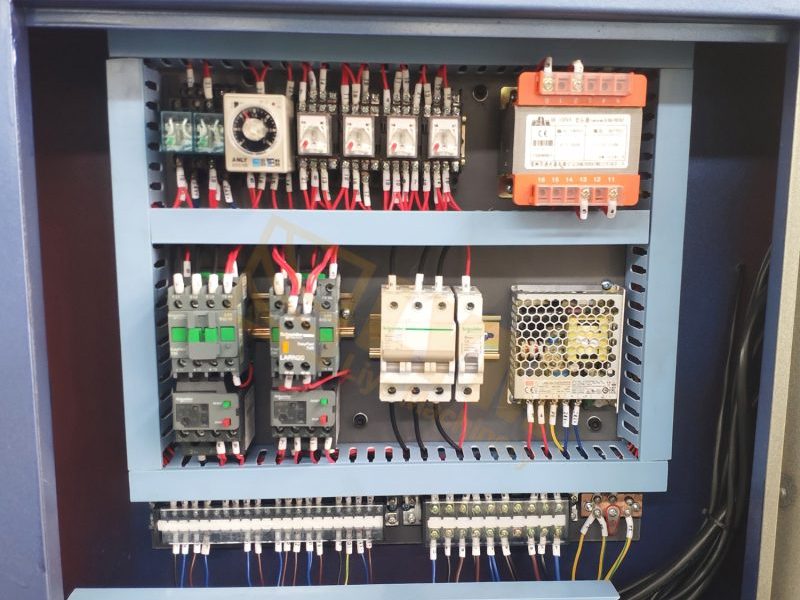

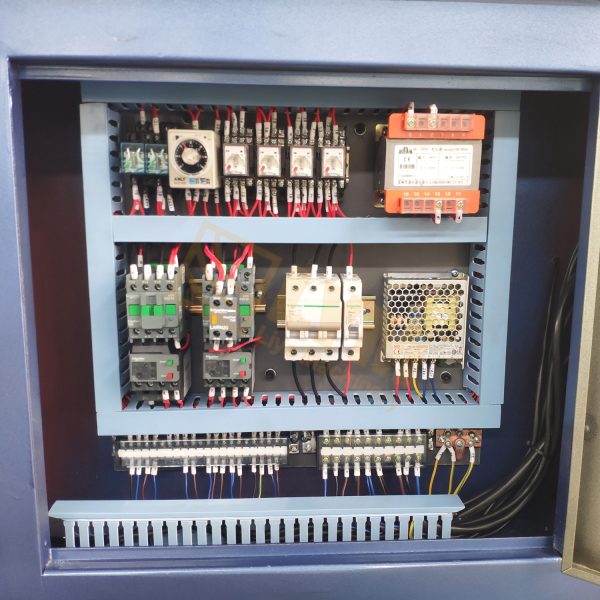

Main control circuit board

YJ425Y Hydraulic Pipe Cutting Machine插图4

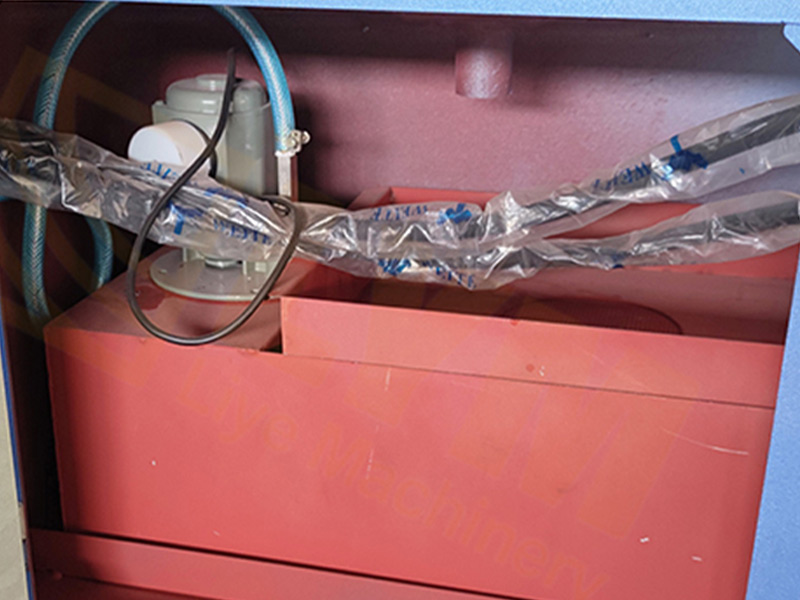

Circulating water tank

YJ425Y Hydraulic Pipe Cutting Machine插图5

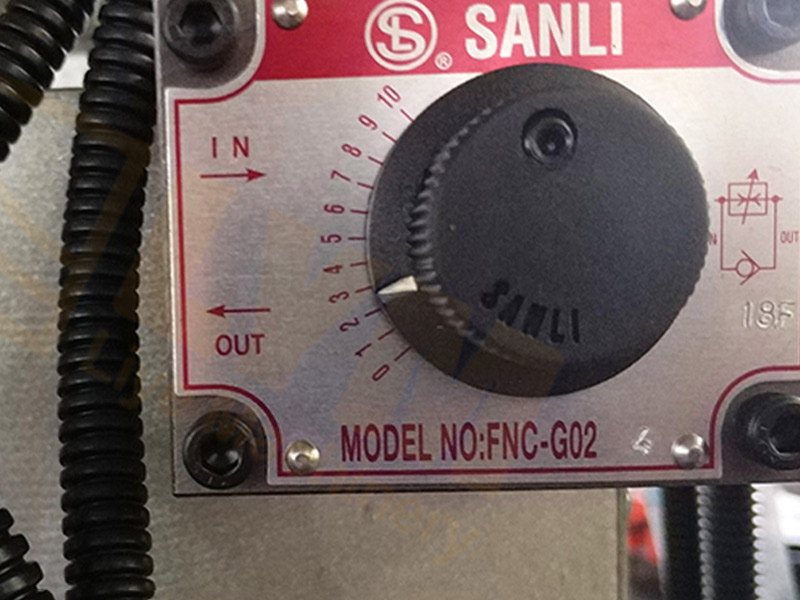

Machine head lifting speed control valve
