1. The SG80-C Tube Shrinking Machine is a multifunctional metal tube processing equipment designed for shrinking, expanding, flaring, and punching operations on steel pipes. It is widely used in scaffolding, automotive, and metal fabrication industries.

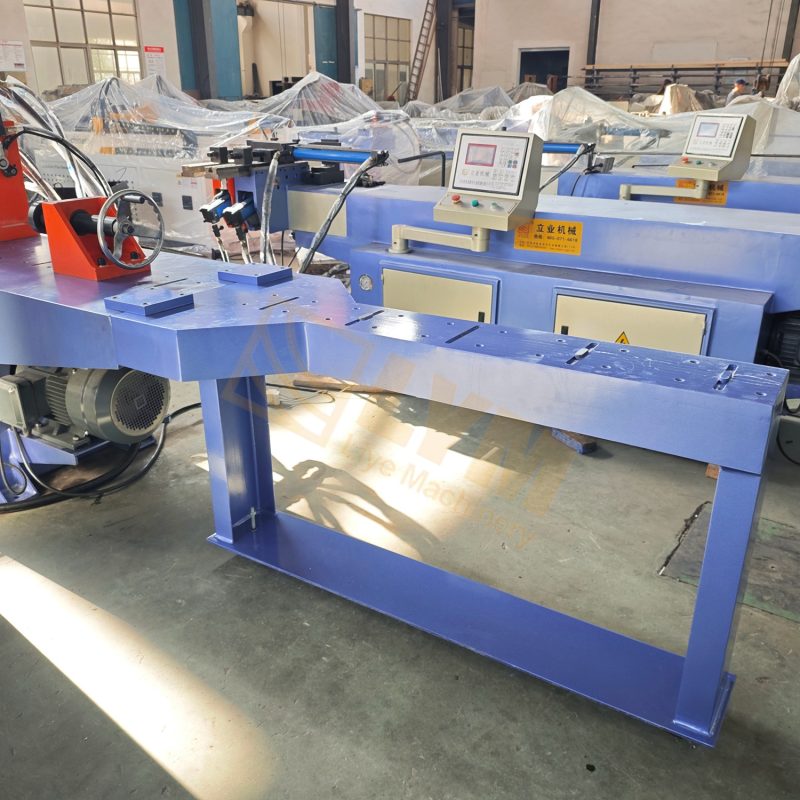

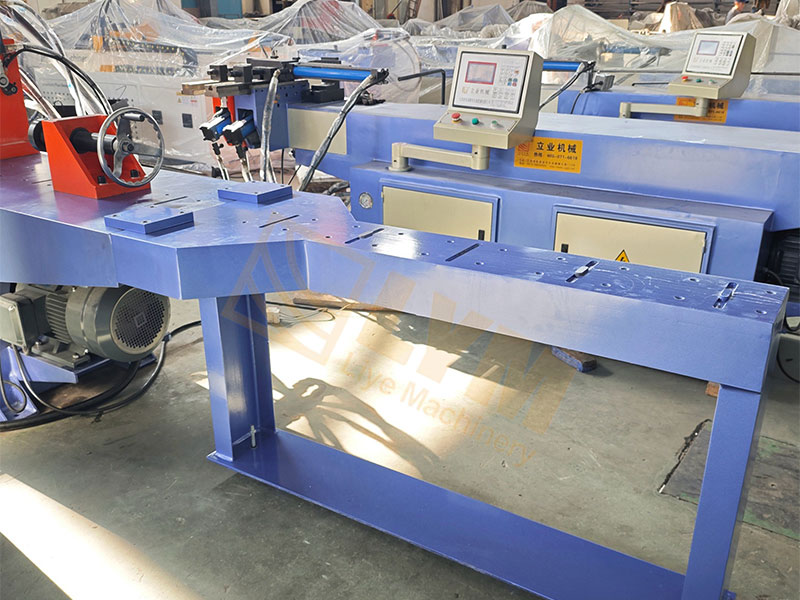

2. Equipped with a dual-station structure, the machine allows efficient processing of multiple tubes, improving productivity while maintaining stable forming quality.

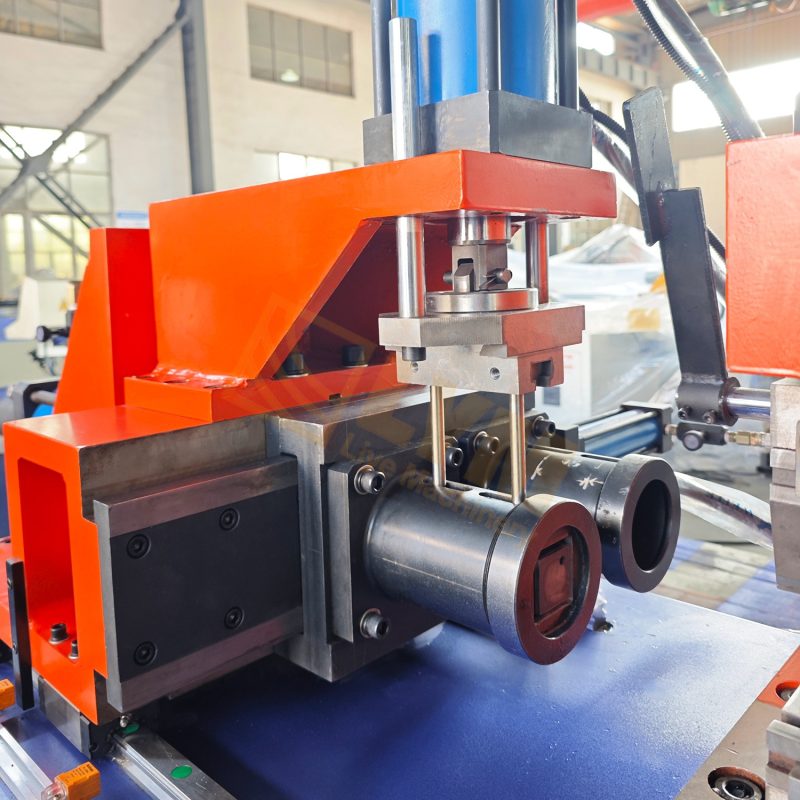

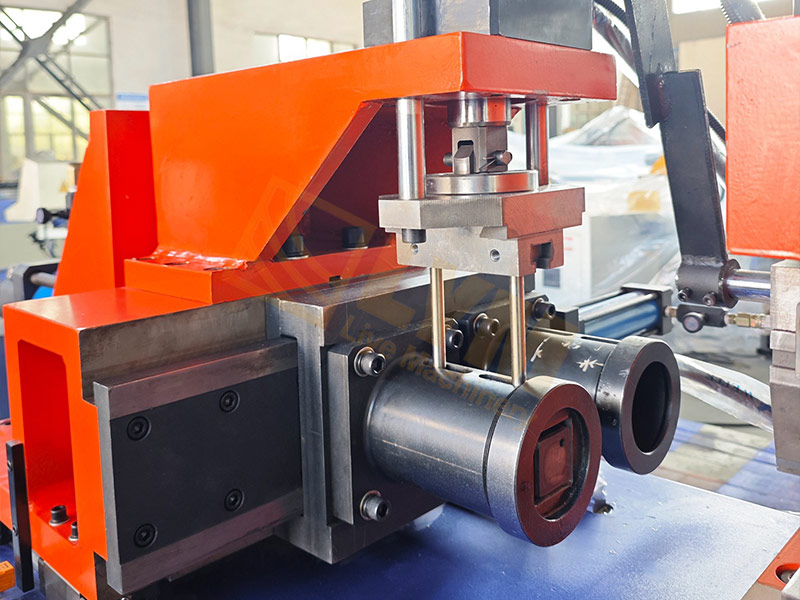

3. The machine integrates a hydraulic punching system, enabling simultaneous tube shrinking and punching operations, reducing secondary processing and improving overall efficiency.
4. Powered by a 7.5kW motor and 25L oil pump, the system operates under a stable pressure of 14MPa, ensuring a strong forming force and reliable performance.
5. With hydraulic-driven clamping, shrinking, positioning, and mold shifting systems, combined with water cooling, the machine ensures long-term stable operation, high precision, and extended service life.
| SG80-C Tube Shrinking Machine (with Punching Function) | |
| Maximum Shrinking Capacity (Steel Pipe): 80×3MM | Operating Language: Chinese/English |
| Maximum Working Stroke: 150MM | Clamping Method: Hydraulic Cylinder |
| Number of Stations: Two-Station | Shrinking Method: Hydraulic Cylinder |
| Oil Pump: 25L | Punching Method: Hydraulic Cylinder |
| Motor Power: 7.5KW | Mold Shifting Method: Hydraulic Cylinder |
| Hydraulic Working Pressure: 14MPA | Front Positioning Method: Hydraulic Cylinder |
| Machine Dimensions: 2500×1000×1580MM | Power Supply: 380V 50HZ Three-Phase (customizable) |
| Machine Weight: 1900KG | Cooling System: Water Cooler |
| Punching Function: Included | |
