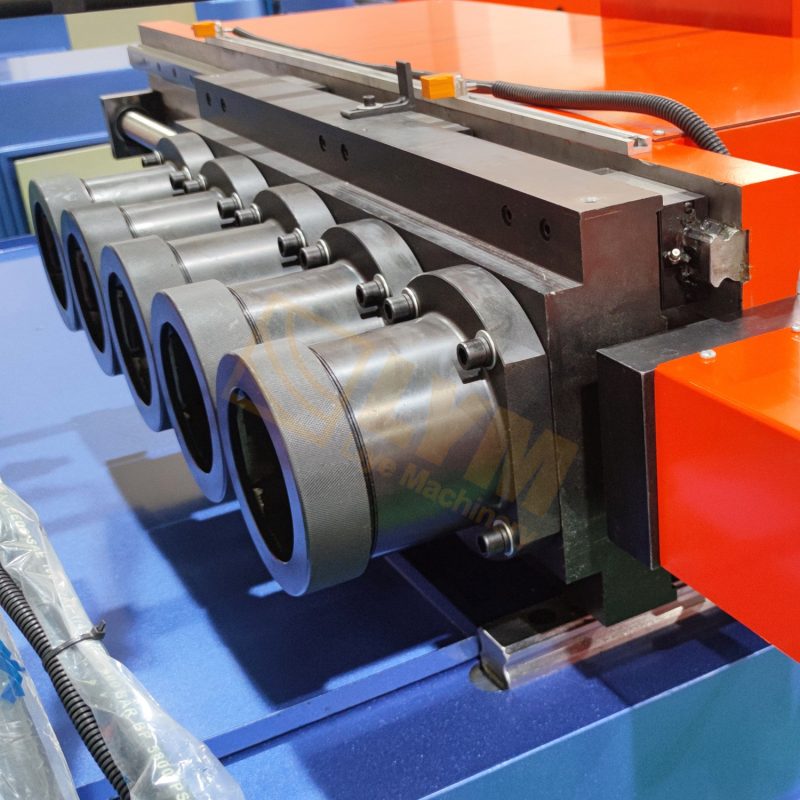

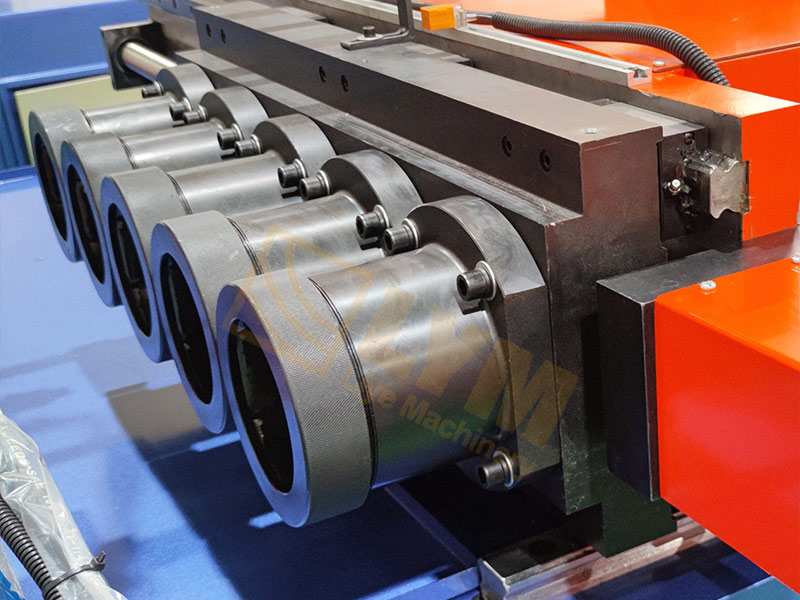

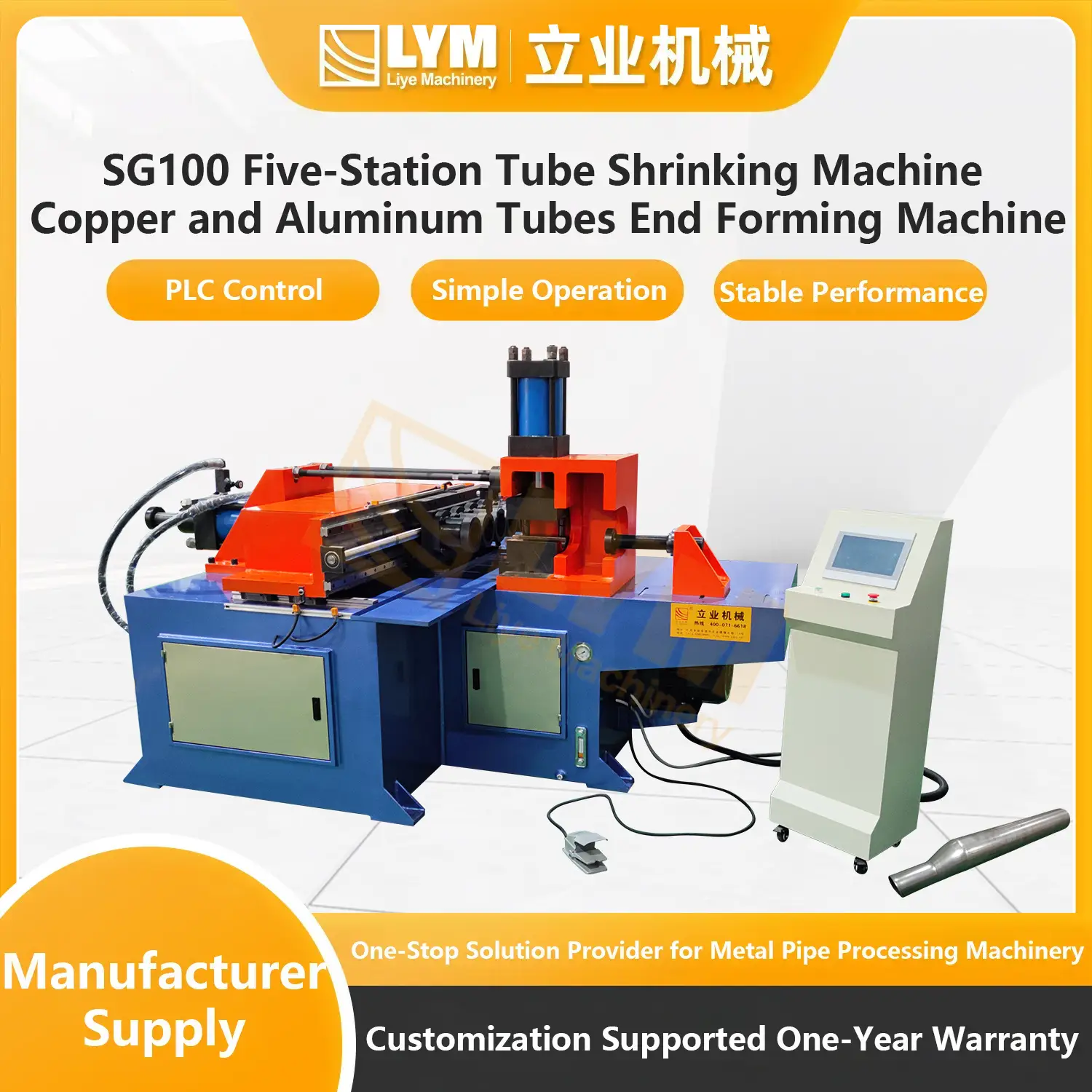

1. The SG100 Five-Station Tube Shrinking Machine is designed for precise end-forming and shrinking of medium to large-diameter metal tubes, including steel, copper, and aluminum. Its five-station design allows multiple tubes to be processed simultaneously, significantly improving production efficiency.

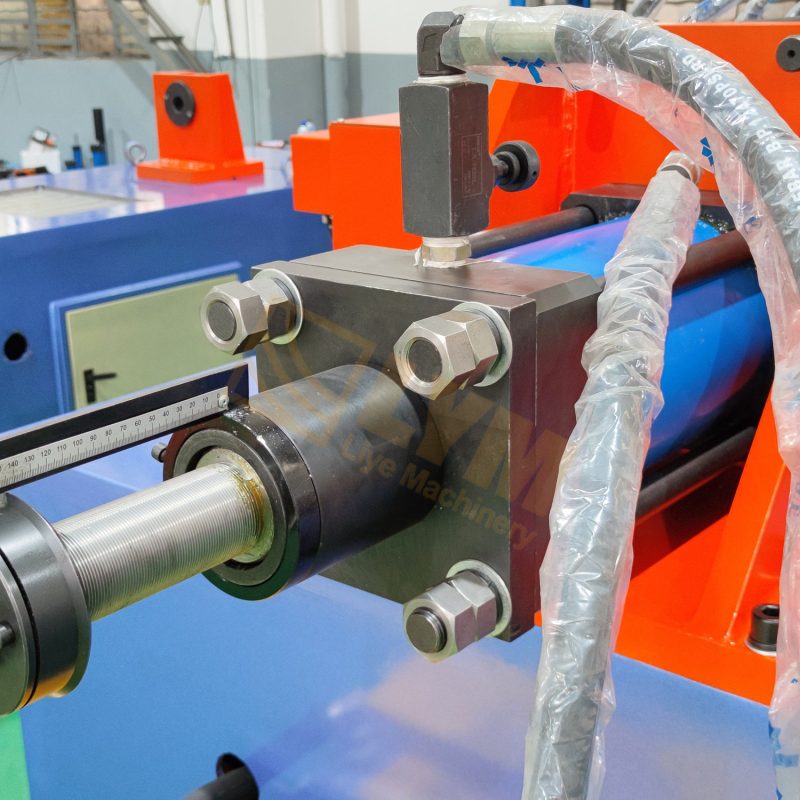

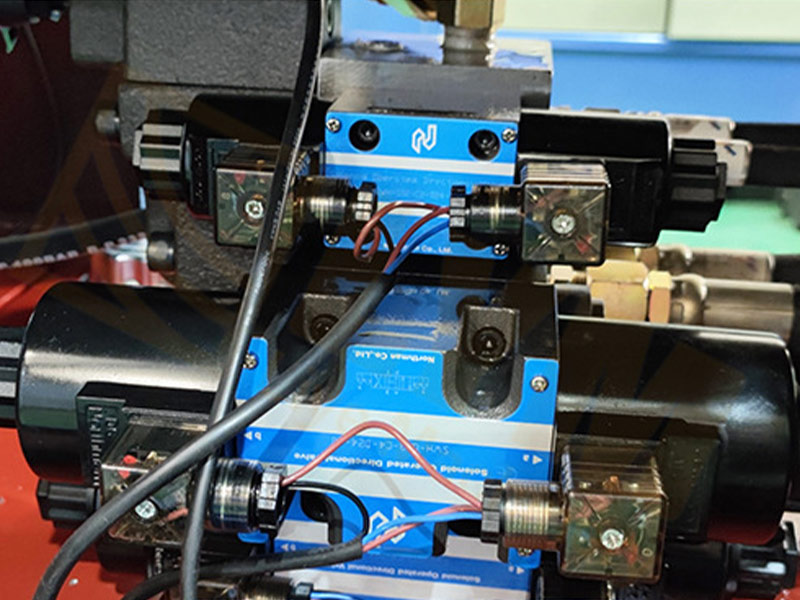

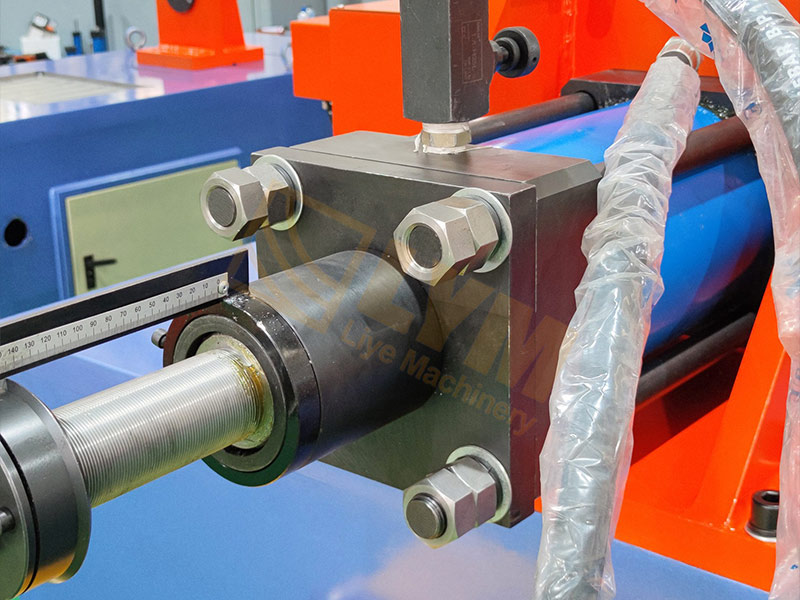

2. The machine features a hydraulic-driven shrinking and clamping system, providing stable and accurate tube end forming. Hydraulic cylinders control clamping, shrinking, and front positioning, while mold changing is operated via a servo motor for fast and precise adjustments. The interface supports both Chinese and English for operator convenience.

3. Powered by an 11kW motor and 33L hydraulic pump, the SG100 maintains a stable hydraulic pressure of 14MPa. Its modular design allows customization of the maximum working stroke to accommodate different tube diameters and wall thicknesses.

4. Integrated with an air-cooled hydraulic oil system, this machine ensures continuous operation without overheating. Its robust frame minimizes vibration and noise while guaranteeing long-term reliability and precision, making it ideal for manufacturers requiring high-volume, high-precision tube processing.
