GY60 Horizontal Bidirectional Servo Rolling Machine

GY60 Horizontal Bidirectional Servo Rolling Machine

  • Factory direct sales
Order phone:+86-13812981723
E-mail:liye@liyemachine.com

Detail

Features

1. The GY60 Horizontal Bidirectional Servo Rolling Machine is designed for efficient rolling and bending of stainless steel, steel, copper, and aluminum tubes. It is suitable for producing circular frames, S-shape bends, spiral bends, and various curved metal structures.

2. The machine adopts a bidirectional servo rolling system, providing precise feeding control, stable bending performance, and high forming accuracy during continuous operation.

3. Equipped with servo motor driving systems for both pushing and rolling functions, the machine ensures smooth transmission, fast response speed, and stable processing quality for different metal tube materials.

4. The machine supports high-speed rolling and bending processing, improving production efficiency while maintaining stable arc shaping accuracy and dimensional consistency.

5. With multilingual operation support and customizable electrical configuration, the machine is suitable for various industrial pipe forming applications requiring high precision and automation.

GY60 Horizontal Bidirectional Servo Rolling Machine
Maximum Processing Pipe Diameter (Steel Pipe): 60×2MM Machine Dimensions: 1550×1600×1150MM
Bending Radius: 26× Pipe Diameter Machine Weight: 1200KG
Bending Speed: 150MM/S Pushing Method: Servo Motor + Reducer
Pushing Servo Motor Power: 2KW Rolling Method: Servo Motor + Reducer
Rolling Servo Motor Power: 4.4KW System Language: Chinese/English
Power Supply: 380V 50HZ Three-Phase (customizable)

Details

主图_02

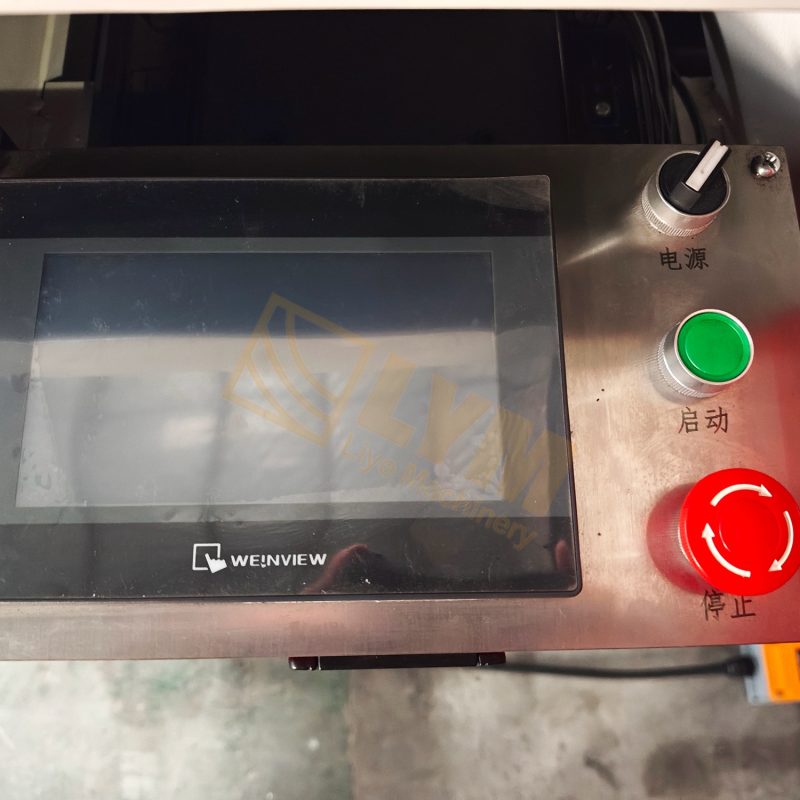

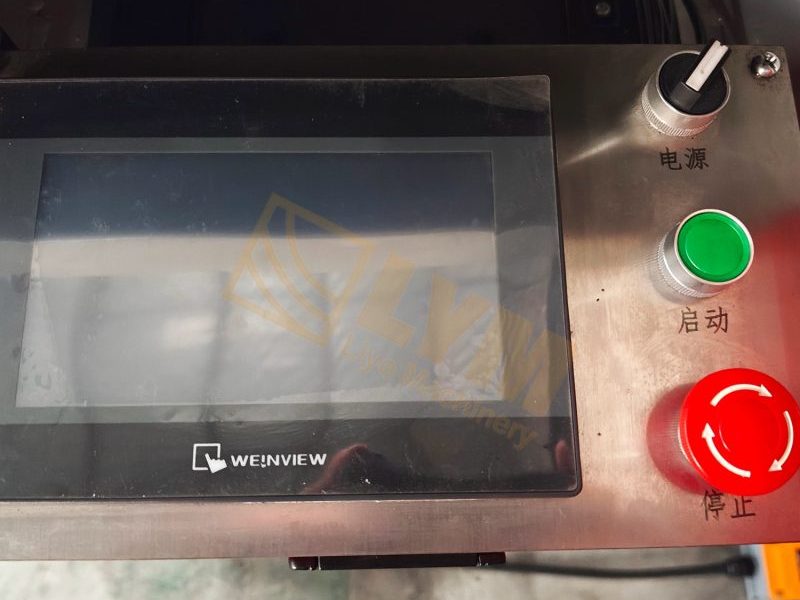

Touchscreen controller

主图_03

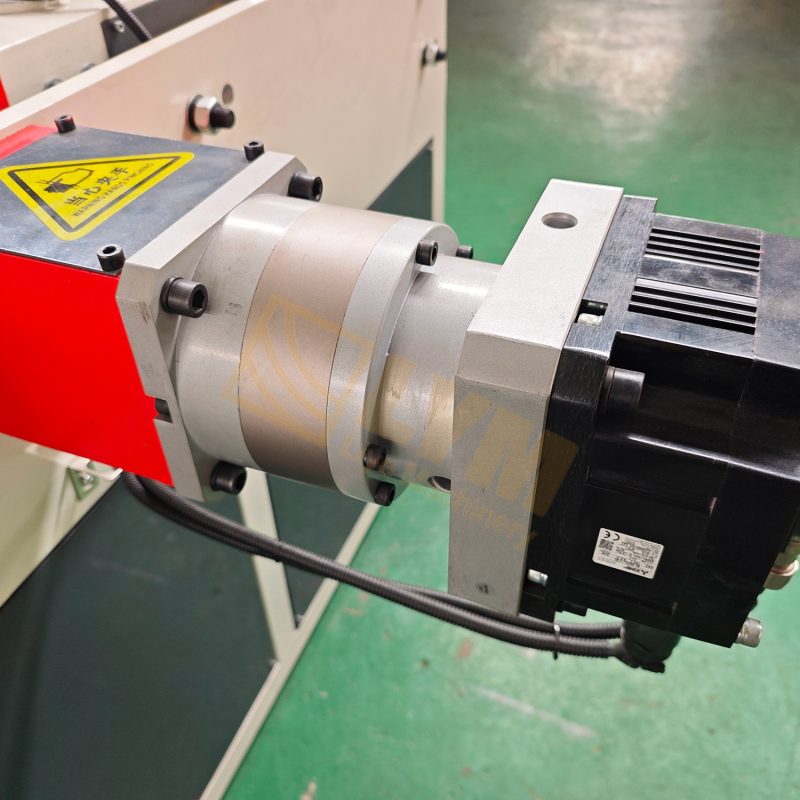

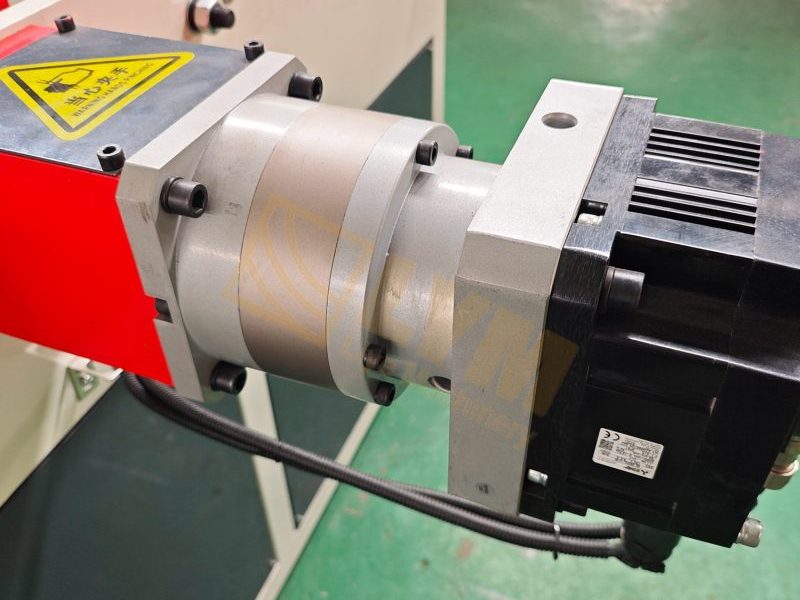

Push-up servo motor + reducer

主图_04

Head mold component

jyx

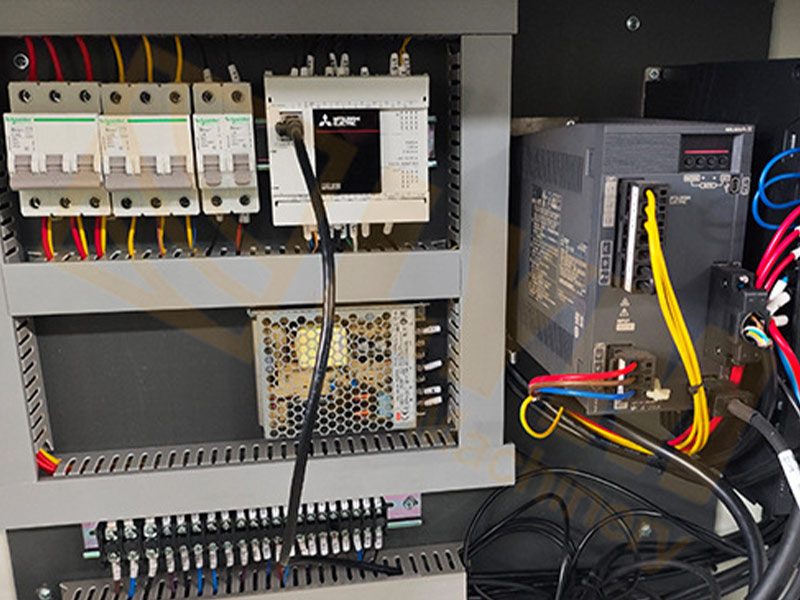

Main control circuit board

Samples
