GY60 Seven-Wheel Vertical Rolling Machine

GY60 Seven-Wheel Vertical Rolling Machine

  • Factory direct sales
Order phone:+86-13812981723
E-mail:liye@liyemachine.com

Detail

Features

1. The GY60 Seven-Wheel Vertical Rolling Machine is designed for efficient rolling and bending of stainless steel, steel, copper, and aluminum tubes. It is suitable for producing circular frames, spiral bends, S-shape bends, and curved pipe structures.

2. The machine adopts a vertical seven-wheel rolling structure, providing stable feeding performance, accurate bending control, and smooth forming quality during continuous operation.

3. Equipped with a hydraulic pushing system and motor-driven rolling mechanism, the machine delivers strong driving force and stable processing performance for various metal tube materials.

4. The machine supports high-speed rolling and bending processing, improving production efficiency while maintaining precise arc shaping and dimensional consistency.

5. With multilingual operation support and customizable power configuration, the machine is suitable for a wide range of industrial pipe forming applications.

GY60 Seven-Wheel Vertical Rolling Machine
Maximum Processing Pipe Diameter (Steel Pipe): 60×2MM Pushing Method: Hydraulic Cylinder
Machine Weight: 1380KG Rolling Method: Motor + Reducer
Bending Radius: 26× Pipe Diameter System Language: Chinese/English
Bending Speed: 150MM/S Power Supply: 380V 50HZ Three-Phase (customizable)
Rolling Motor Power: 5.5KW
Machine Dimensions: 1500×1150×2150MM

Details

cky

Microcomputer controller

主图_04

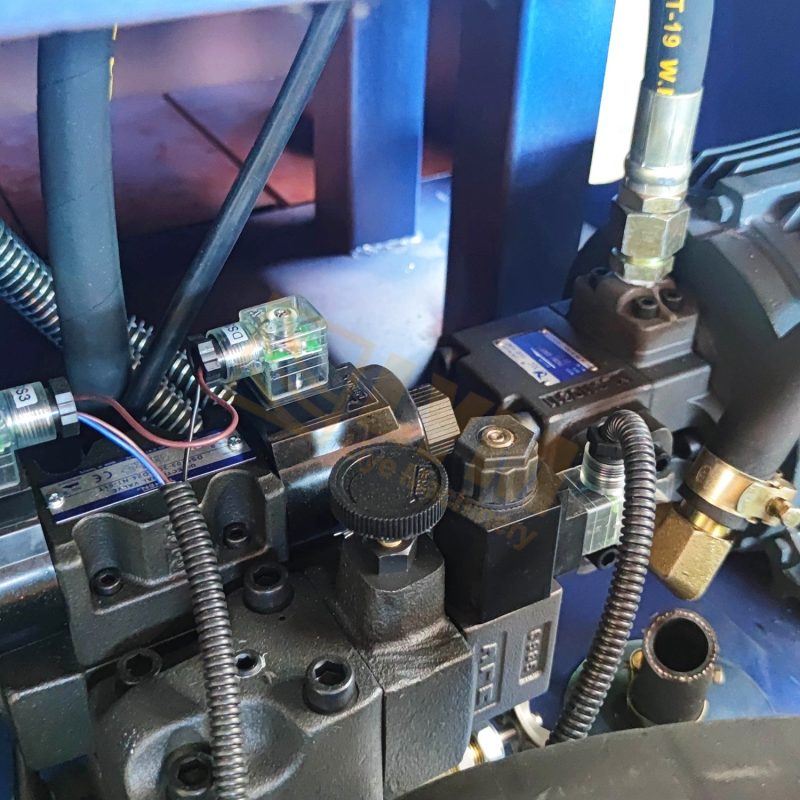

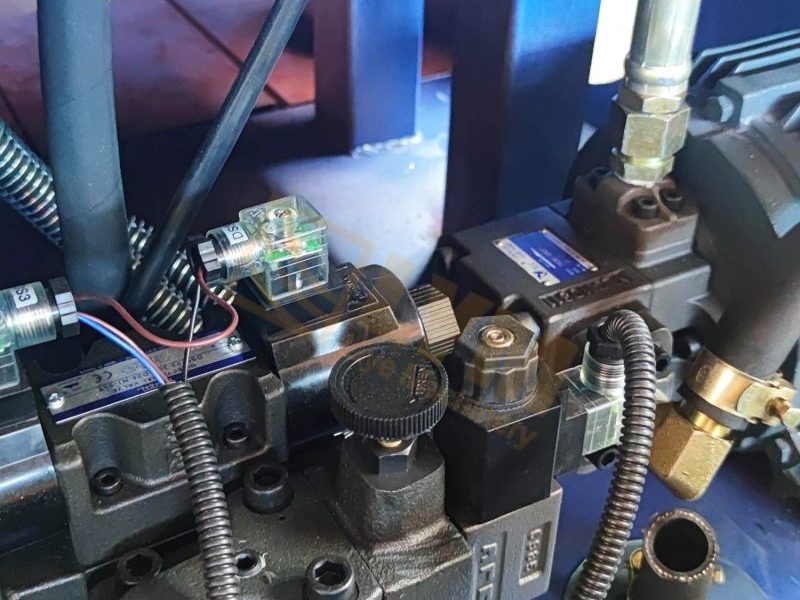

Hydraulic system component

rxsj

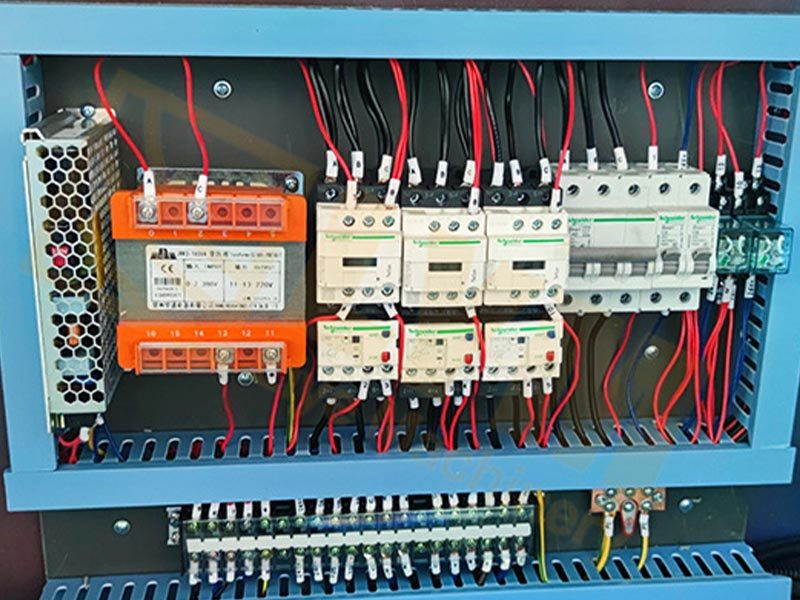

Main control circuit board

主图_02

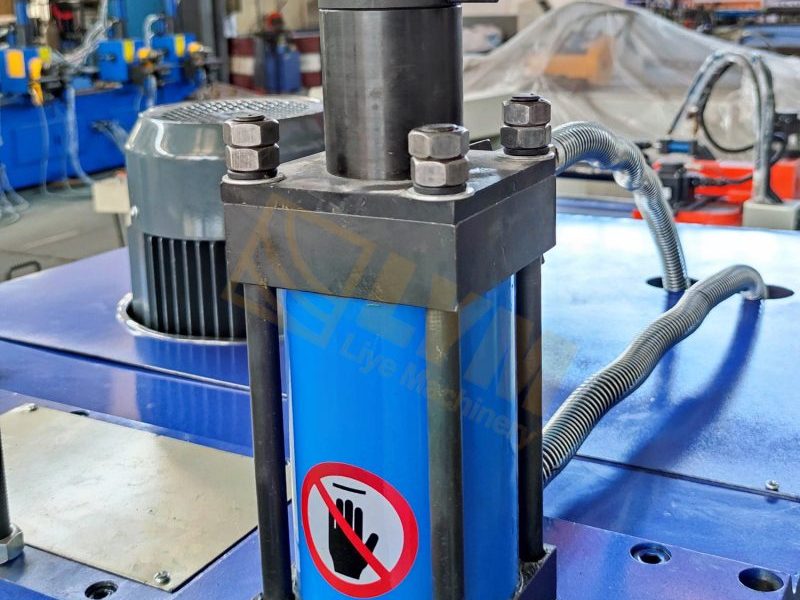

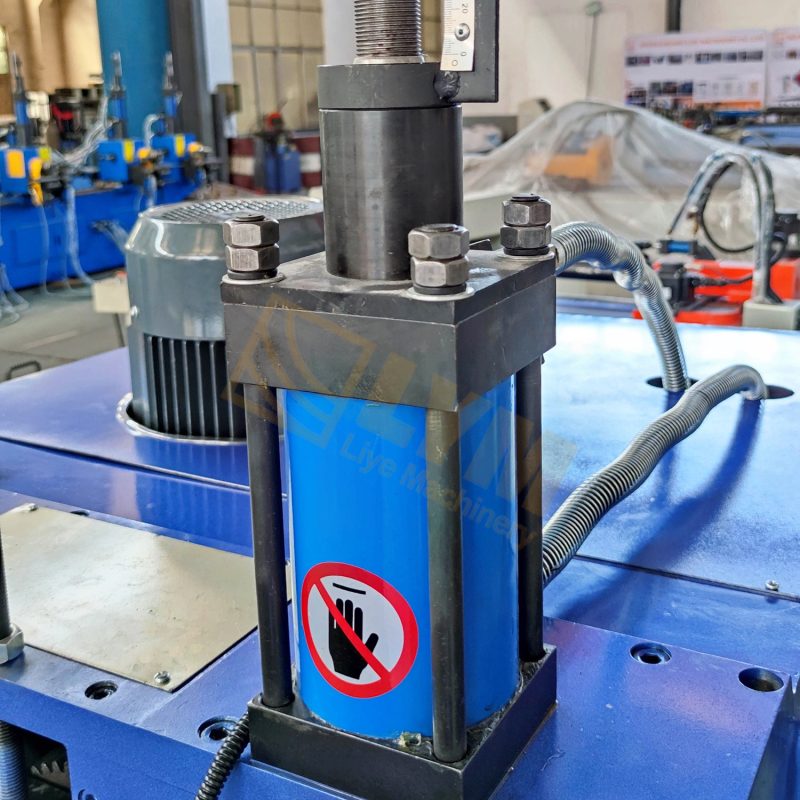

Hydraulic cylinder

Samples

Related Products

Applications

GY60 Seven-Wheel Vertical Rolling Machine插图13

Construction Industry

GY60 Seven-Wheel Vertical Rolling Machine插图14

Automotive Industry

GY60 Seven-Wheel Vertical Rolling Machine插图15

Medical Equipment

GY60 Seven-Wheel Vertical Rolling Machine插图16

Furniture Industry

GY60 Seven-Wheel Vertical Rolling Machine插图17

DID Not

GY60 Seven-Wheel Vertical Rolling Machine插图18

Shipbuilding
