FK40NC Tube End Sealing Machine

FK40NC Tube End Sealing Machine

  • Factory direct sales
Order phone:+86-13812981723
E-mail:liye@liyemachine.com

Detail

Features

1. The FK40NC Tube End Sealing Machine is designed for automatic sealing and closing processing of steel pipes, stainless steel pipes, copper pipes, and other metal tube materials. It is suitable for high-efficiency tube end forming applications.

2. The machine adopts a microcomputer control system with hydraulic driving and high-frequency heating technology, enabling one-time sealing forming with stable processing quality and high production efficiency.

3. Equipped with a hydraulic chuck clamping system and hydraulic cylinder plus gear-rack sealing structure, the machine provides strong clamping force, stable rotation, and reliable sealing performance without damaging the tube surface.

4. The machine supports both manual and automatic operating modes, with positioning and counting functions for convenient operation and improved production management.

5. The automatic cooling circulation system ensures stable long-term operation, while multilingual operation support and customizable electrical configuration make the machine suitable for various industrial tube sealing applications.

FK40NC Tube End Sealing Machine
Maximum Sealing Capacity: 40×2MM Machine Weight: 850KG
Hydraulic Chuck: 40MM Clamping Method: Hydraulic Chuck
Hydraulic Motor Power: 4KW Sealing Method: Hydraulic Cylinder + Gear Rack
Chuck Rotation Motor Power: 3KW High Frequency Machine Moving Method: Air Cylinder
High Frequency Heating Machine Power: 15KW System Language: Chinese/English
Hydraulic System Pressure: 12MPA Power Supply: 380V 50HZ Three-Phase (customizable)
Machine Dimensions: 1990×1190×1200MM Sealing Capacity: Steel Pipe, Stainless Steel Pipe, Copper Pipe and Other Metal Tubes

Details

主图_02

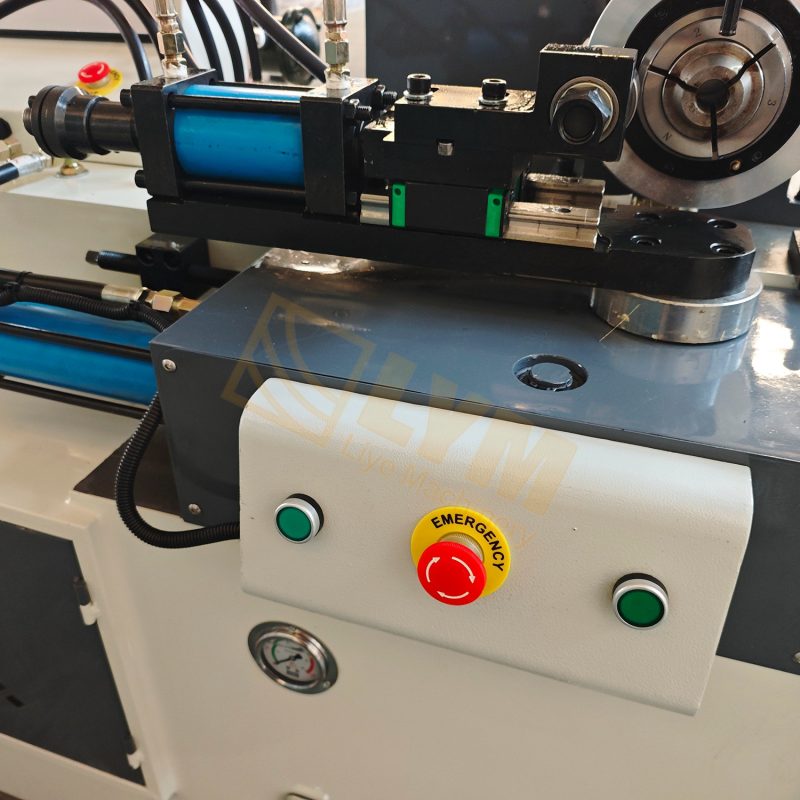

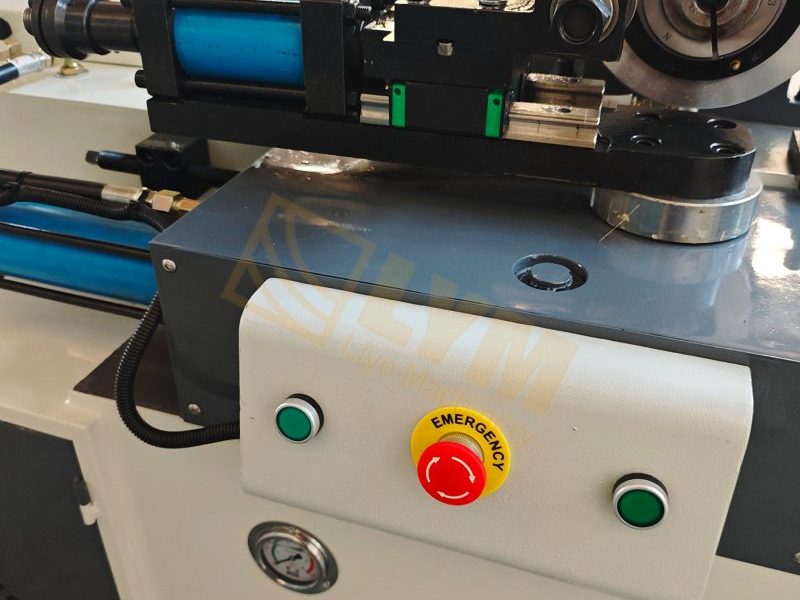

start button

主图_03

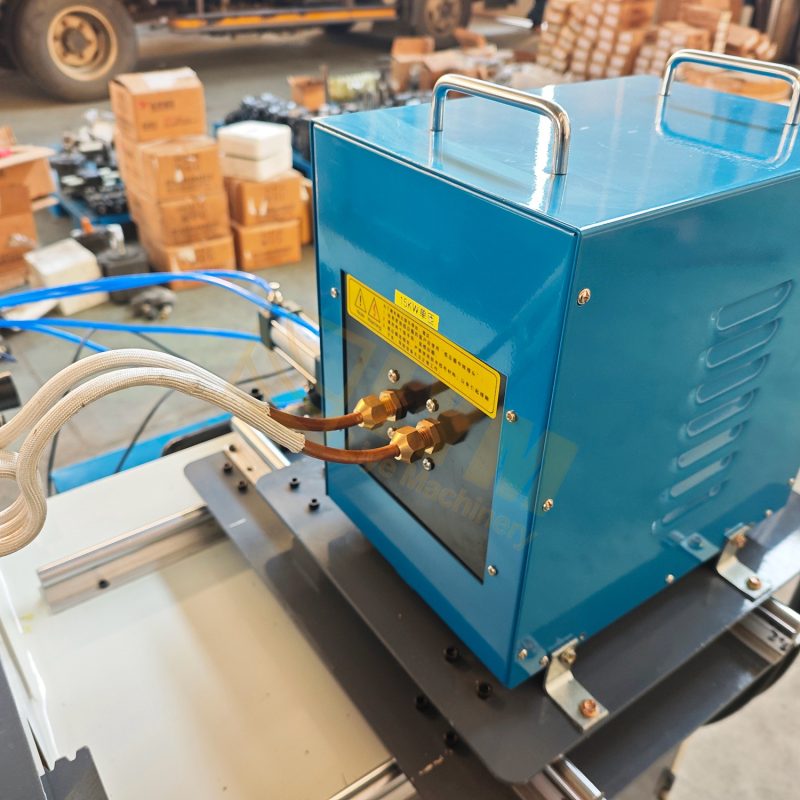

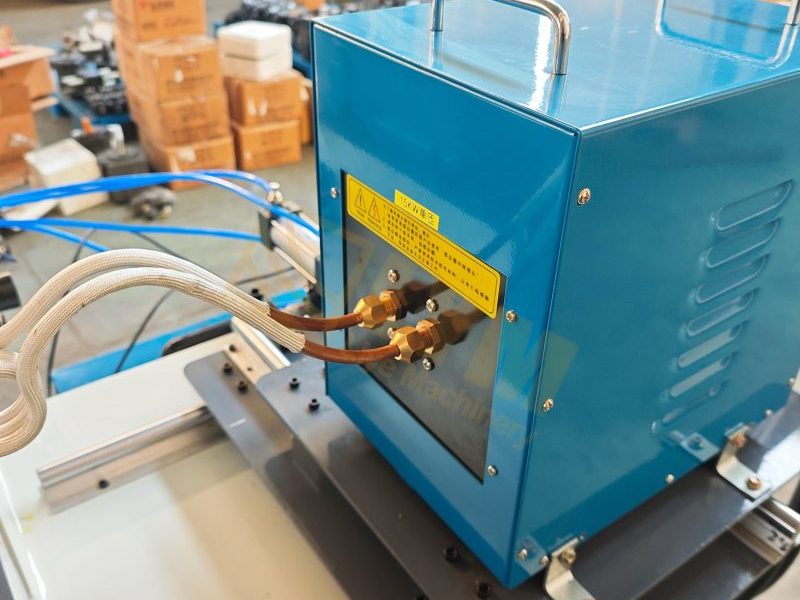

High-frequency heating machine

主图_04

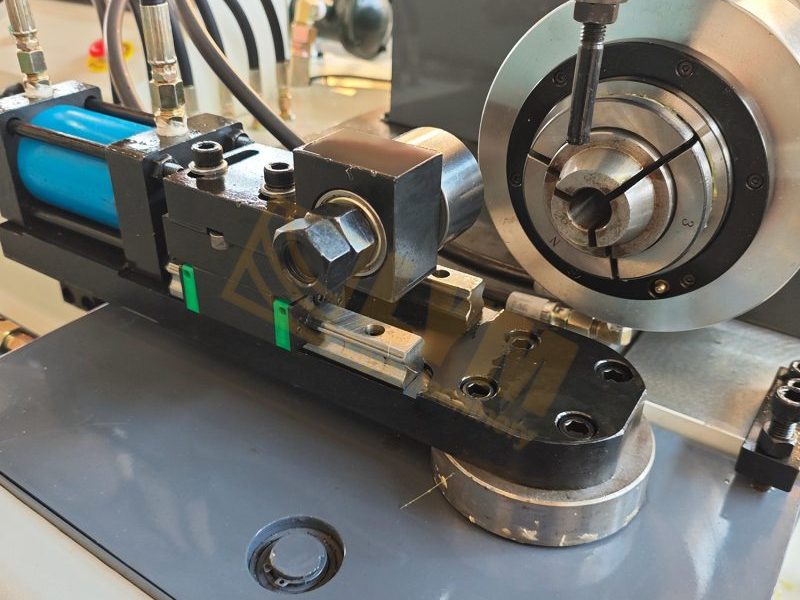

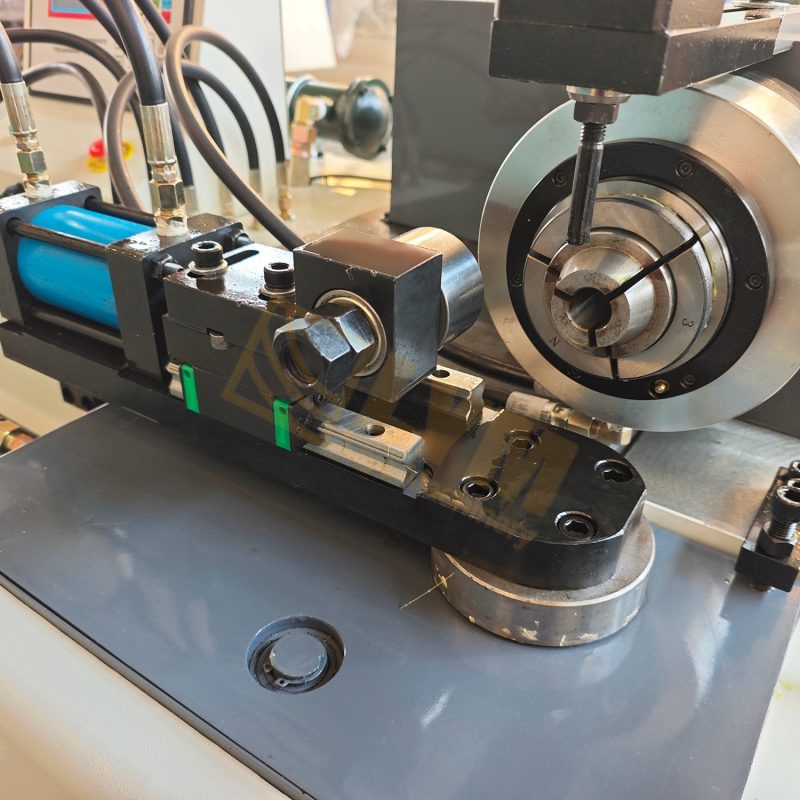

Machine head parts

s

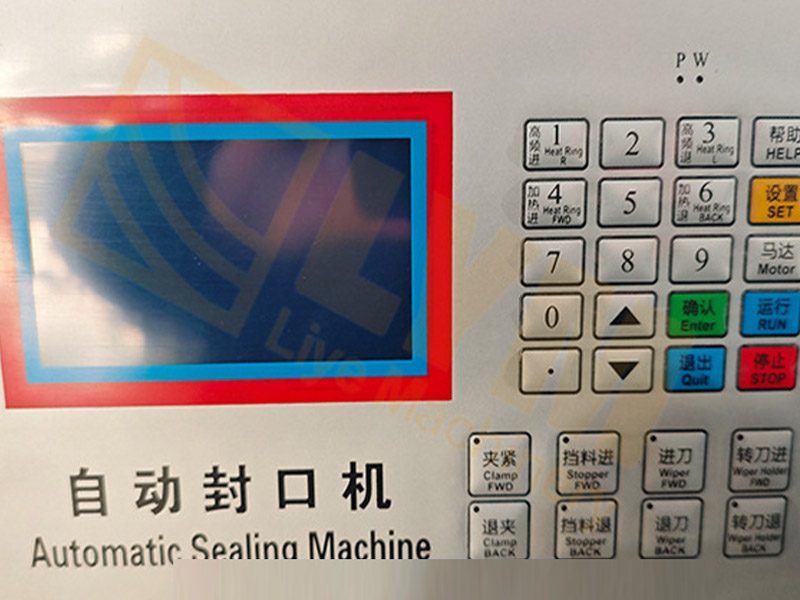

Microcomputer control panel

dteu

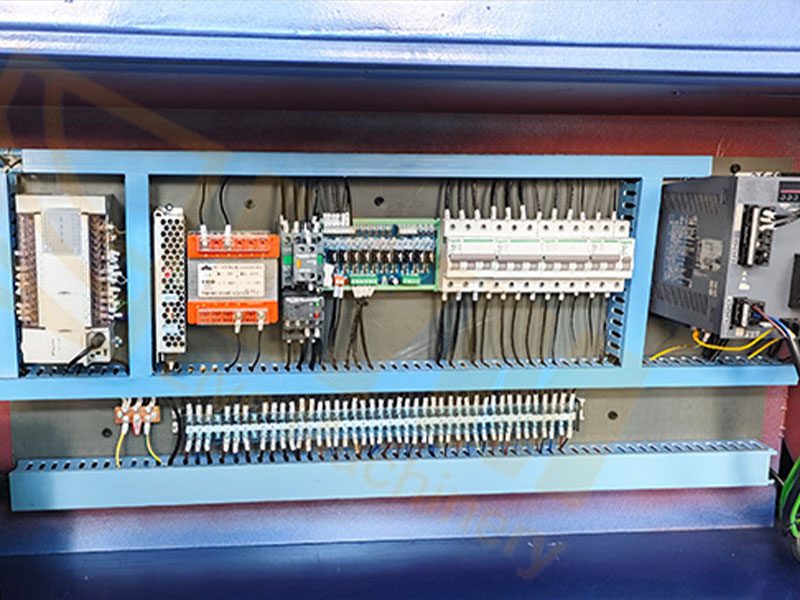

Main control circuit board

djyt

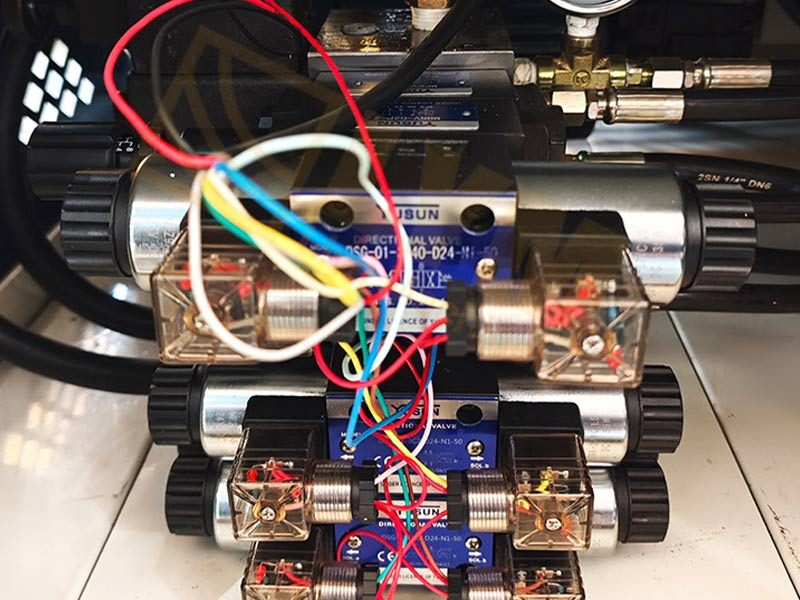

Hydraulic solenoid valve assembly

Related Products

Applications

FK40NC Tube End Sealing Machine插图9

Construction Industry

FK40NC Tube End Sealing Machine插图10

Automotive Industry

FK40NC Tube End Sealing Machine插图11

Medical Equipment

FK40NC Tube End Sealing Machine插图12

Furniture Industry

FK40NC Tube End Sealing Machine插图13

DID Not

FK40NC Tube End Sealing Machine插图14

Shipbuilding
