XG60NC Round Tube Grooving Machine

XG60NC Round Tube Grooving Machine

  • Factory direct sales
Order phone:+86-13812981723
E-mail:liye@liyemachine.com

Detail

Features

1. The XG60NC Round Tube Grooving Machine is designed for automatic grooving, slotting, and drilling processing of round metal tubes, widely used in furniture, pipe connection, and metal frame manufacturing industries.

2. The machine adopts a CNC servo feeding system, providing accurate positioning, stable feeding performance, and high processing efficiency for continuous tube grooving applications.

3. Equipped with a powerful rotating head motor and hydraulic clamping structure, the machine ensures stable machining force, precise groove forming, and reliable operation during processing.

4. The hydraulic clamping system provides strong and stable tube holding performance, improving machining accuracy while protecting the tube surface from damage.

5. With multilingual operation support and customizable electrical configuration, the machine is suitable for steel tube, stainless steel tube, and various metal tube grooving applications.

XG60NC Round Tube Grooving Machine
Maximum Processing Capacity (Steel Pipe): 60×2MM Oil Pump: 17L
Feeding Stroke: 250MM System Pressure: 12MPA
Clamping Stroke: 65MM Machine Dimensions: 2300×1160×1350MM
Feeding Servo Motor Power: 750W Machine Weight: 1450KG
Head Rotation Motor Power: 4KW Clamping Method: Hydraulic Cylinder
Hydraulic Motor Power: 4KW Feeding Method: Servo Motor
Operating Language: Chinese/English Power Supply: 380V 50HZ Three-Phase (customizable)

Details

主图_02

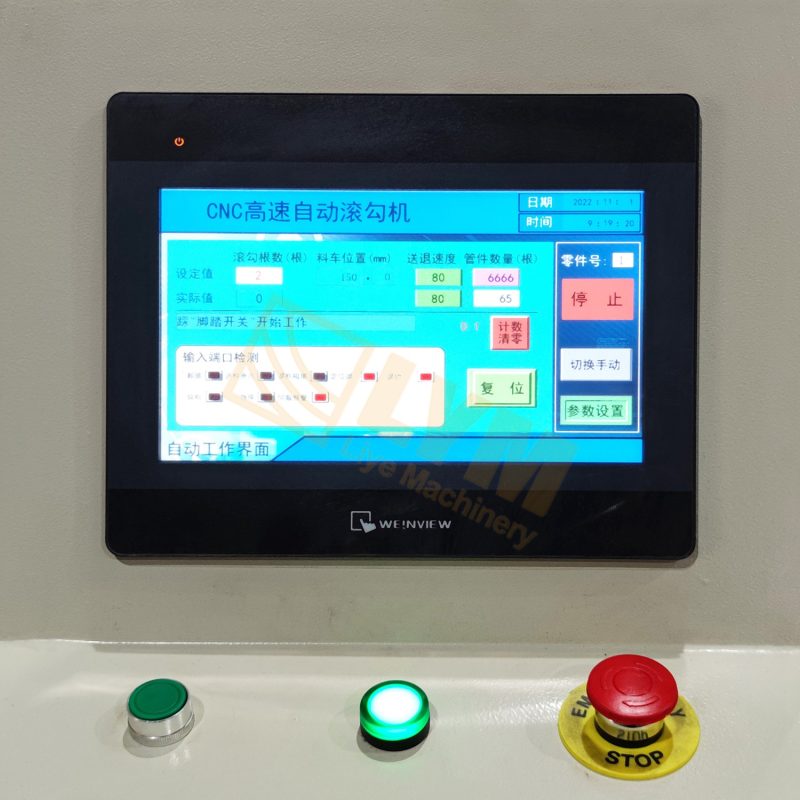

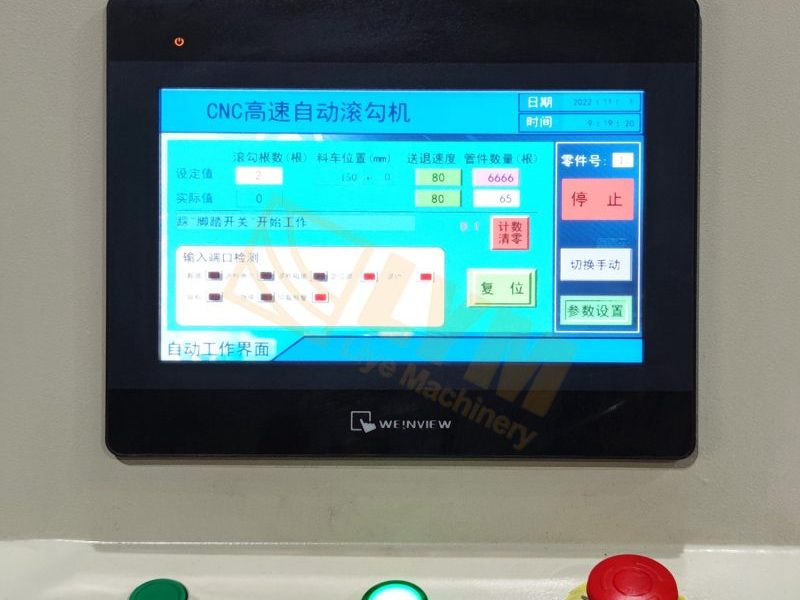

touch screen controller

dytj

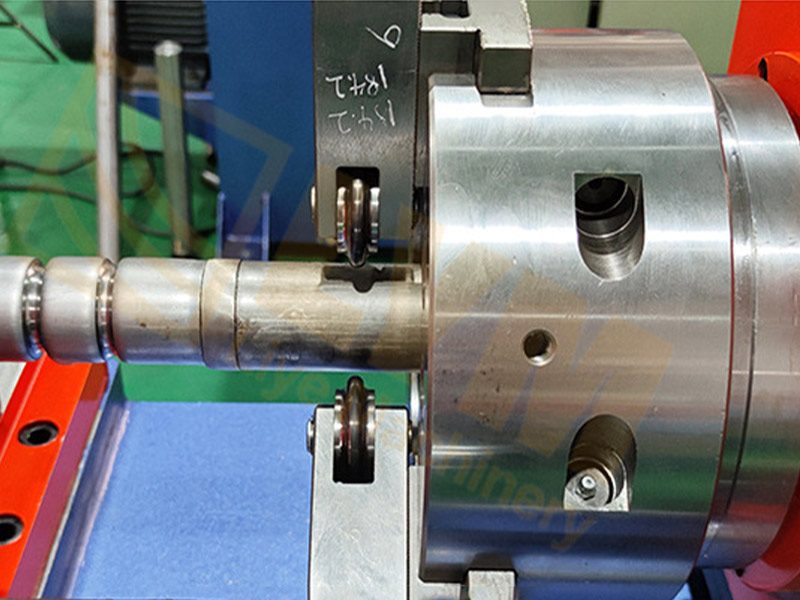

Rotary chuck

htde

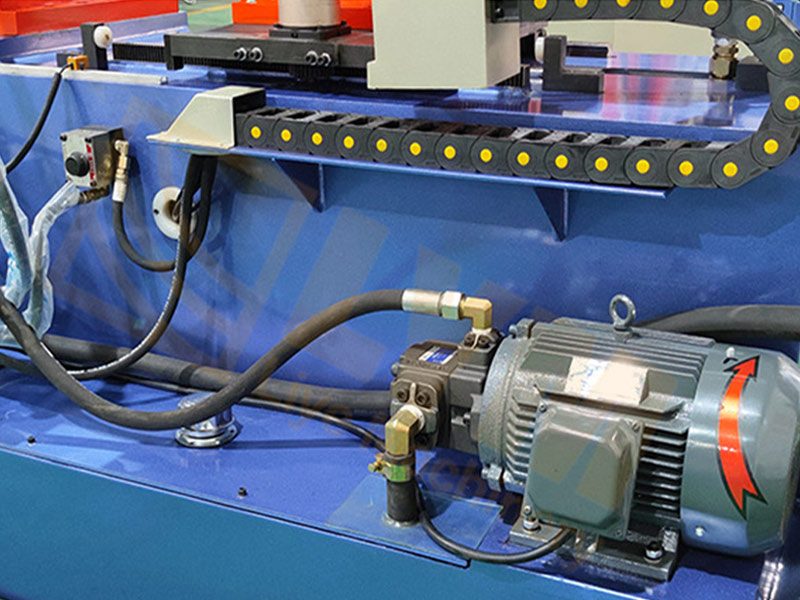

Hydraulic system components

主图_04

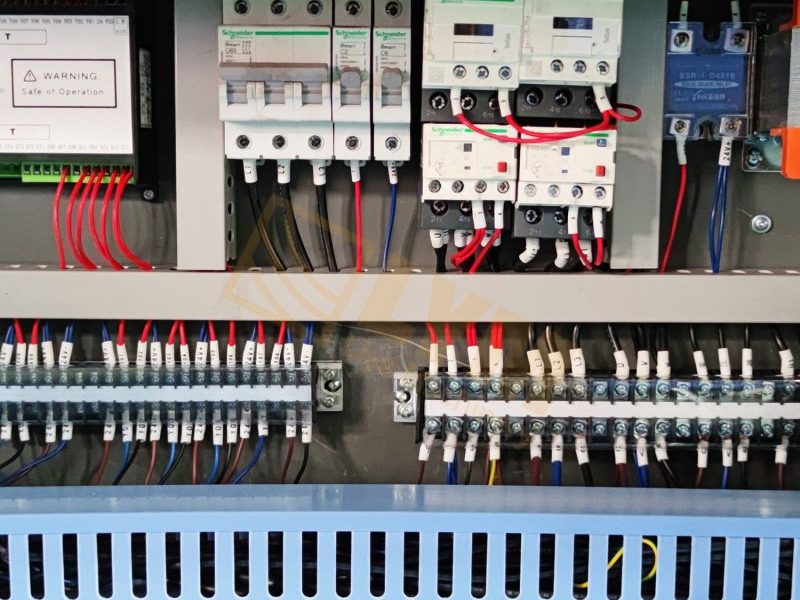

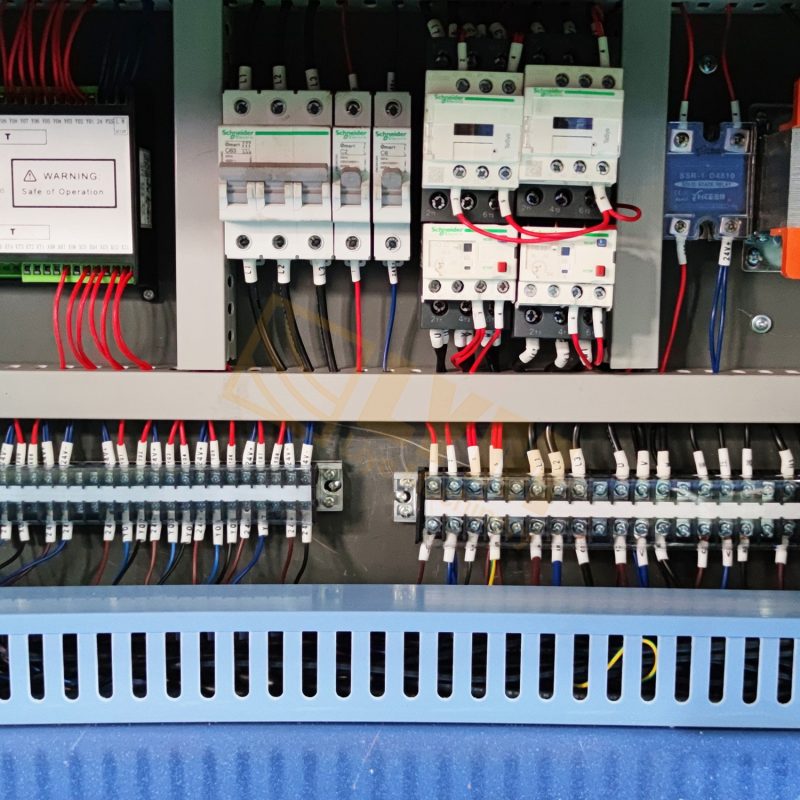

Main control circuit board

主图_03

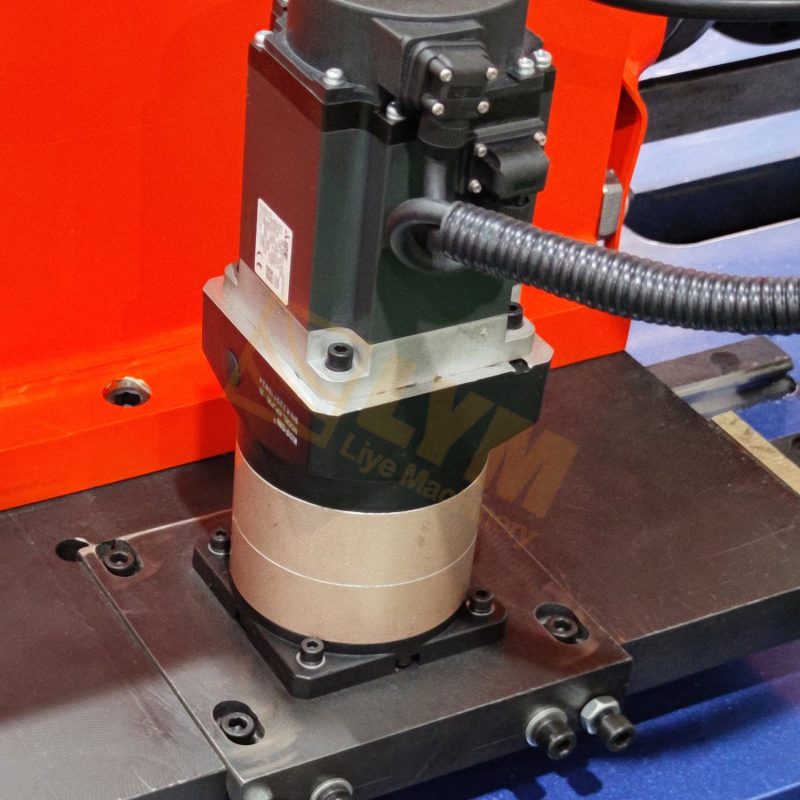

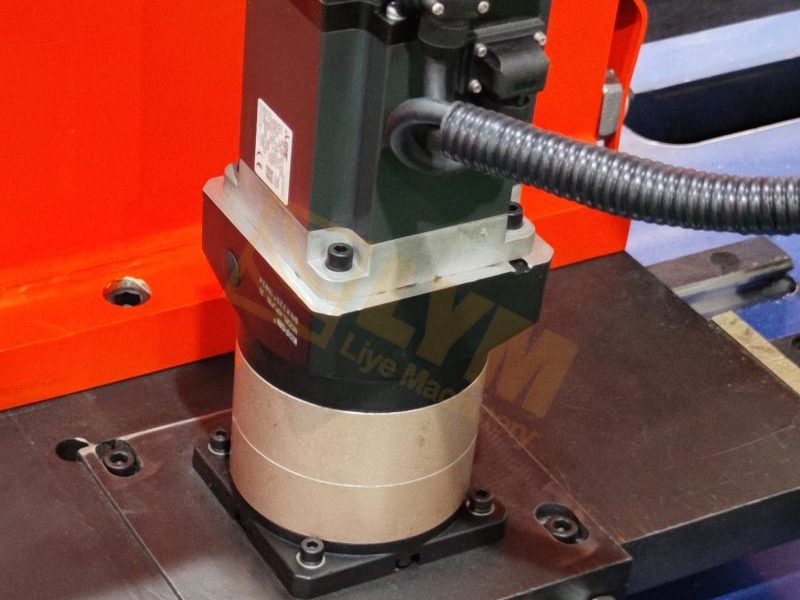

Mitsubishi servo motor + gear reducer
