Double-Head Deburring Machine

Double-Head Deburring Machine

  • Factory direct sales
Order phone:+86-13812981723
E-mail:liye@liyemachine.com

Detail

Features

1. The double-head deburring machine is specially designed for automatic deburring and surface finishing of metal round tubes after cutting, punching, or tube processing operations.

2. The machine adopts a dual wire-brush structure, allowing simultaneous processing from both ends to improve production efficiency and ensure uniform deburring quality.

3. Equipped with powerful wire brush motors and an automatic feeding system, the machine provides stable operation, efficient burr removal, and smooth tube surface finishing.

4. The adjustable working stroke supports different tube lengths, making the machine suitable for various metal tube processing requirements.

5. With stable performance, high efficiency, and customizable electrical configuration, the machine is widely used in steel tube, stainless steel tube, and metal pipe processing industries.

Double-Head Deburring Machine
Maximum Tube Brushing Capacity: 80×3MM Working Stroke: 140–1000MM
Wire Brush Motor Power: 4KW × 2 Machine Weight: 1400KG
Feeding Motor Power: 750W Power Supply: 380V 50HZ Three-Phase (customizable)
Machine Dimensions (L×W×H): 3100×1700×1200MM

Details

主图_03

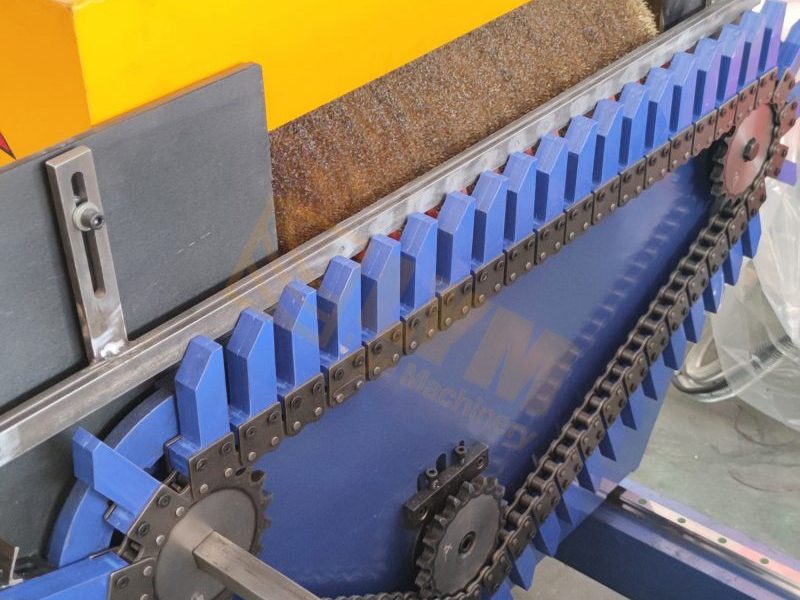

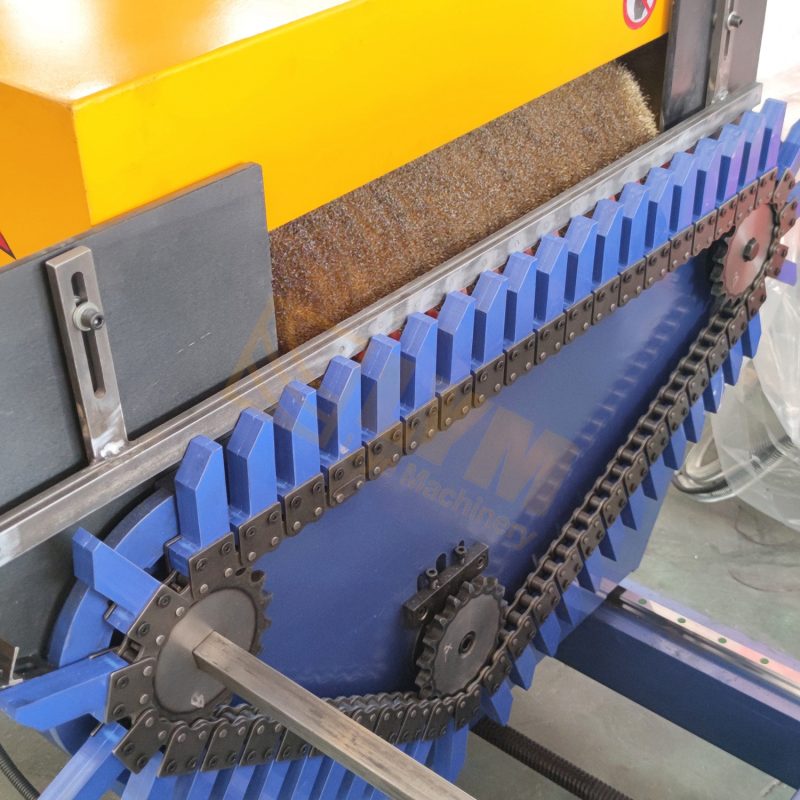

Machine head parts

主图_04

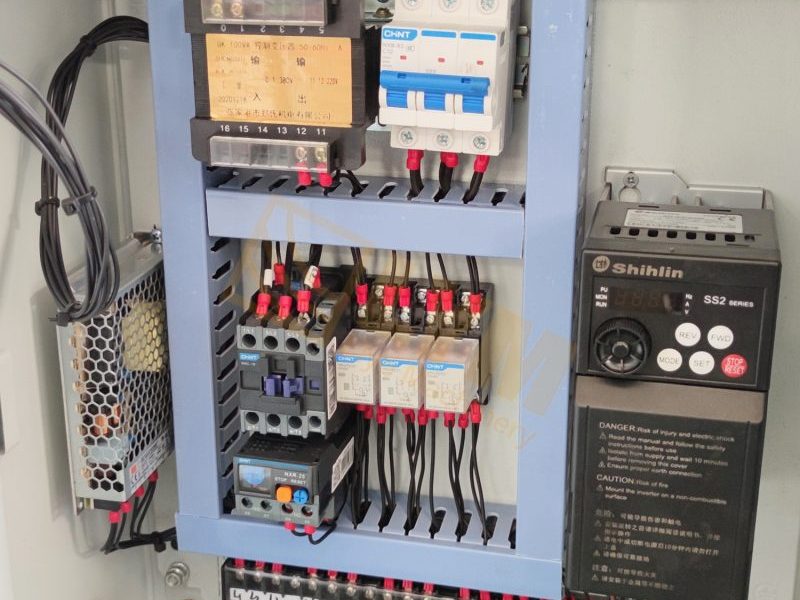

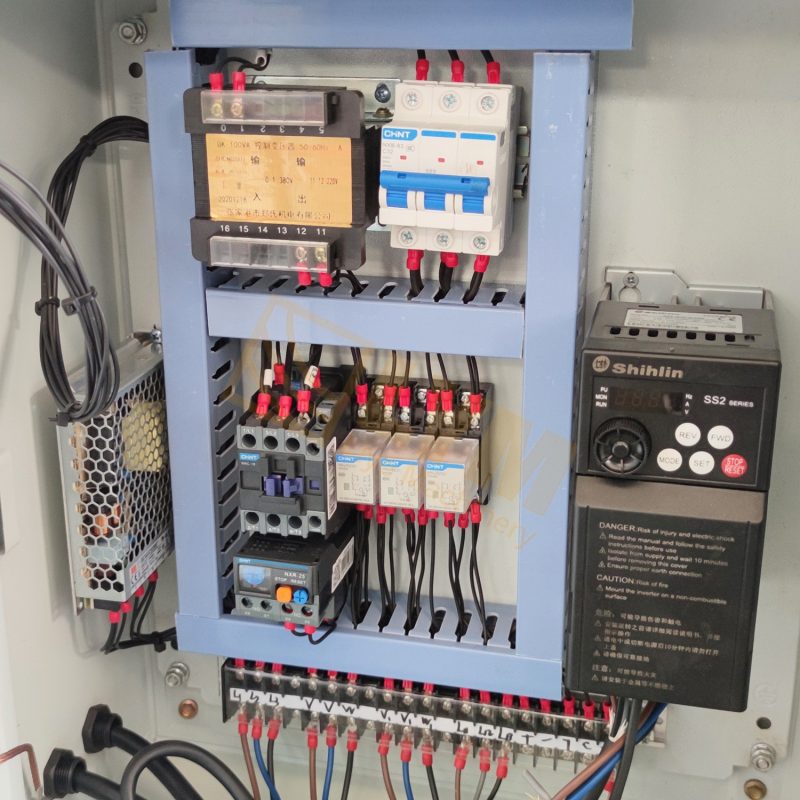

Main control circuit board

主图_02

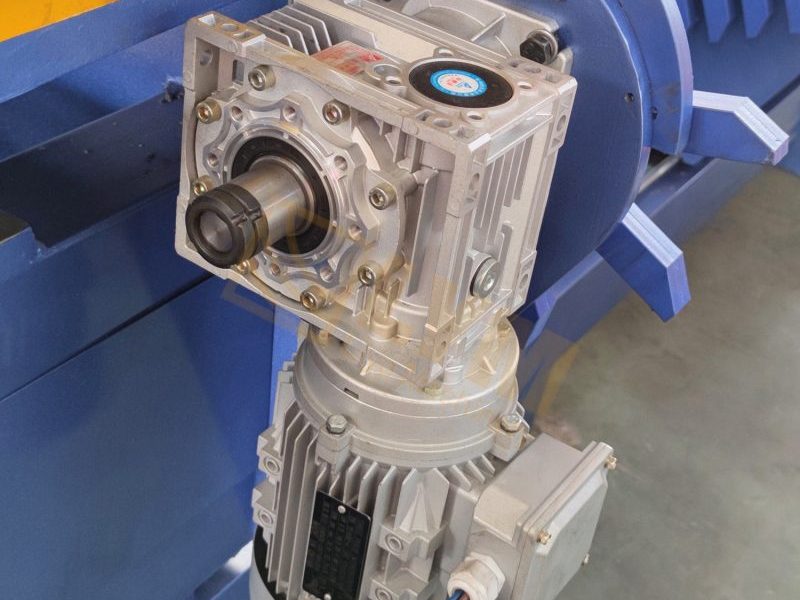

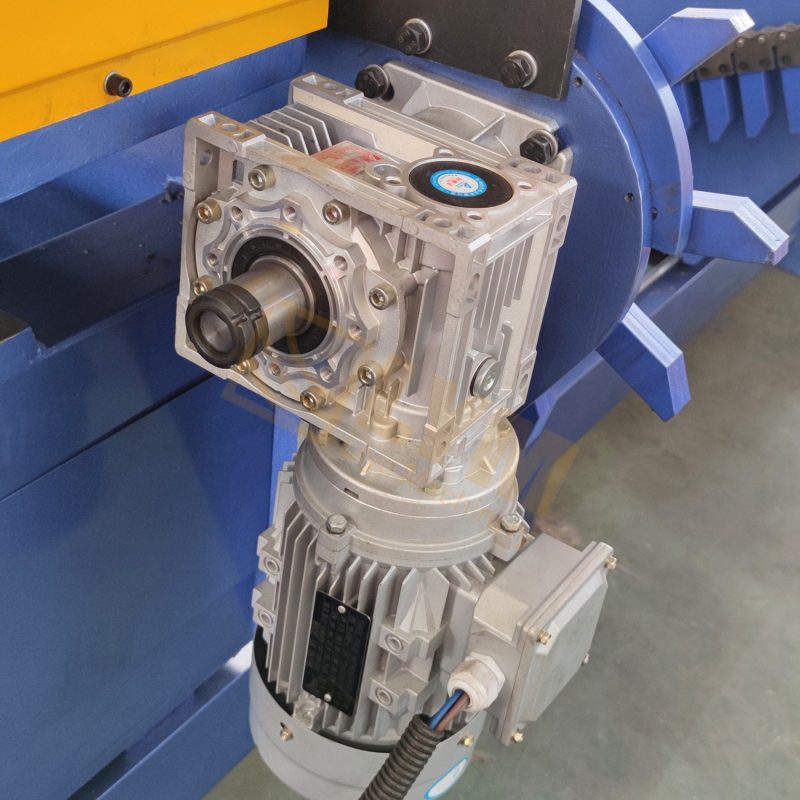

motor + reducer

Related Products

Applications

Double-Head Deburring Machine插图6

Construction Industry

Double-Head Deburring Machine插图7

Automotive Industry

Double-Head Deburring Machine插图8

Medical Equipment

Double-Head Deburring Machine插图9

Furniture Industry

Double-Head Deburring Machine插图10

DID Not

Double-Head Deburring Machine插图11

Shipbuilding
