YJ425CNC Fully Automatic Pipe Cutting Machine (Servo Feeding, Upper and Lower Clamping)

YJ425CNC Fully Automatic Pipe Cutting Machine (Servo Feeding, Upper and Lower Clamping)

  • YJ425CNC Fully Automatic Pipe Cutting Machine is a high-precision industrial pipe cutting machine designed for efficient and reliable straight cutting.
Order phone:+86-13812981723
E-mail:liye@liyemachine.com

Detail

Features

1. YJ425CNC Fully Automatic Pipe Cutting Machine (Servo Feeding, Upper and Lower Clamping) is a high-precision industrial pipe cutting solution designed for efficient straight cutting of metal pipes and profiles. The machine features a 425-type full-gear gearbox for stable power transmission and long-term durability. Its servo-controlled feeding system ensures accurate positioning and consistent material movement, while upper and lower hydraulic clamping firmly holds the pipe during cutting to maintain high accuracy.

2. Supporting Φ315–Φ450mm saw blades, the machine can cut pipes up to 130mm wide × 60mm high at 90° straight cuts, achieving a cutting accuracy of ±0.15mm and tail material precision of ±0.5mm. The hydraulic cutting system, combined with stepless feed speed adjustment and a circulating water cooling system, ensures smooth operation, reduced blade wear, and reliable performance in continuous production. With Chinese and English CNC operation and customizable power supply options, the YJ425CNC is ideal for metal fabrication, construction material processing, automotive component manufacturing, and furniture production.


YJ425CNC Fully Automatic Pipe Cutting Machine Specifications
Gearbox Type Model 425 (Full Gear Transmission)
Applicable Saw Blade Φ315 – Φ450mm
Maximum Cutting Capacity 130mm (Width) × 60mm (Height), 90° Straight Cutting Only
Maximum Feeding Stroke (Single Feed) 1400mm (Customizable Extended Length)
Cutting Accuracy ±0.15mm
Tail Material Cutting Accuracy ±0.5mm
Main Motor Power 3.3 / 4.0 kW
Saw Blade Speed 35 / 70 RPM or 60 / 120 RPM
Clamping Type Upper & Lower Clamping
Feeding Servo Motor 1 kW
Cooling Pump Motor 90 W
Hydraulic Pump Motor 4.0 kW
Working Pressure 70 MPa
Machine Dimensions 2700 × 1300 × 1950 mm
Machine Weight 1300 kg
Feeding Method Servo Motor
Cutting Method Hydraulic Cylinder
Clamping Method Hydraulic Cylinder
Tail Material Pulling Method Hydraulic Cylinder
Saw Blade Cooling System Circulating Water
Cutting Feed Speed Stepless Speed Adjustment
Operating Language Chinese / English
Power Supply 380V 50Hz Three-Phase (Customizable)
Hydraulic Oil Cooling System Air Cooler

Details

YJ425CNC Fully Automatic Pipe Cutting Machine (Servo Feeding, Upper and Lower Clamping)插图

Fan cooler

YJ425CNC Fully Automatic Pipe Cutting Machine (Servo Feeding, Upper and Lower Clamping)插图1

Touchscreen Control Panel

YJ425CNC Fully Automatic Pipe Cutting Machine (Servo Feeding, Upper and Lower Clamping)插图2

Main control circuit board

YJ425CNC Fully Automatic Pipe Cutting Machine (Servo Feeding, Upper and Lower Clamping)插图3

Machine head lifting speed control valve

YJ425CNC Fully Automatic Pipe Cutting Machine (Servo Feeding, Upper and Lower Clamping)插图4

Hydraulic system valve group

YJ425CNC Fully Automatic Pipe Cutting Machine (Servo Feeding, Upper and Lower Clamping)插图5

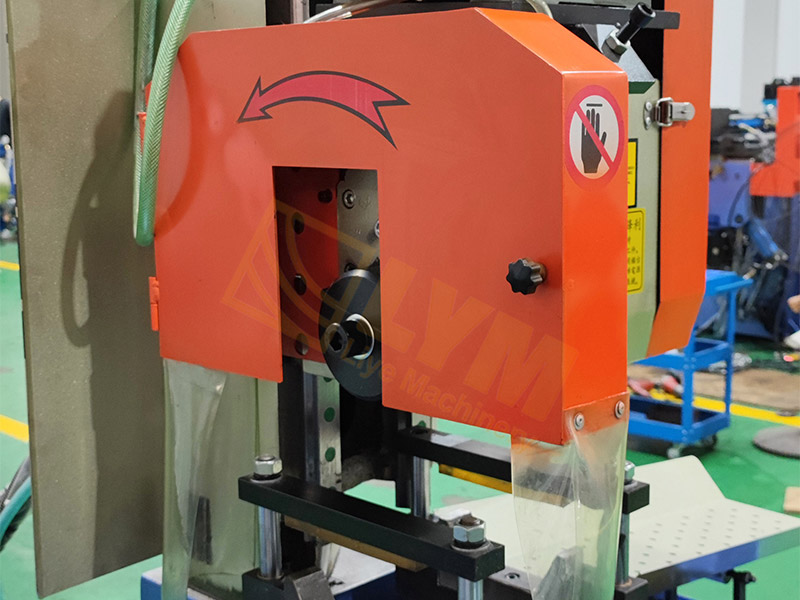

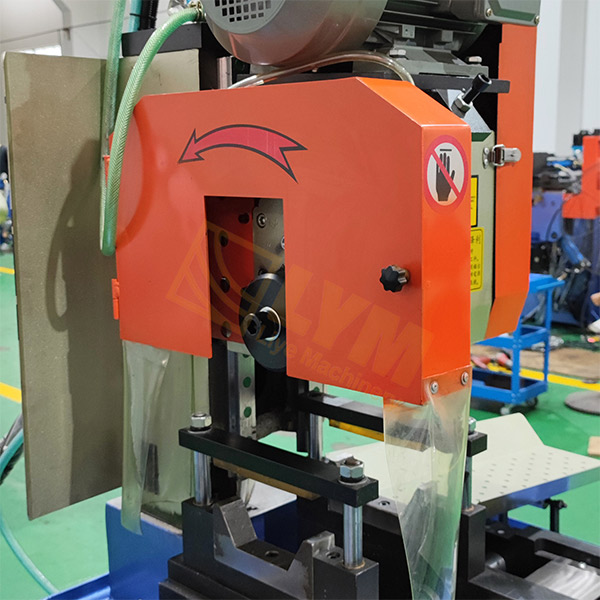

Machine head Components

YJ425CNC Fully Automatic Pipe Cutting Machine (Servo Feeding, Upper and Lower Clamping)插图6

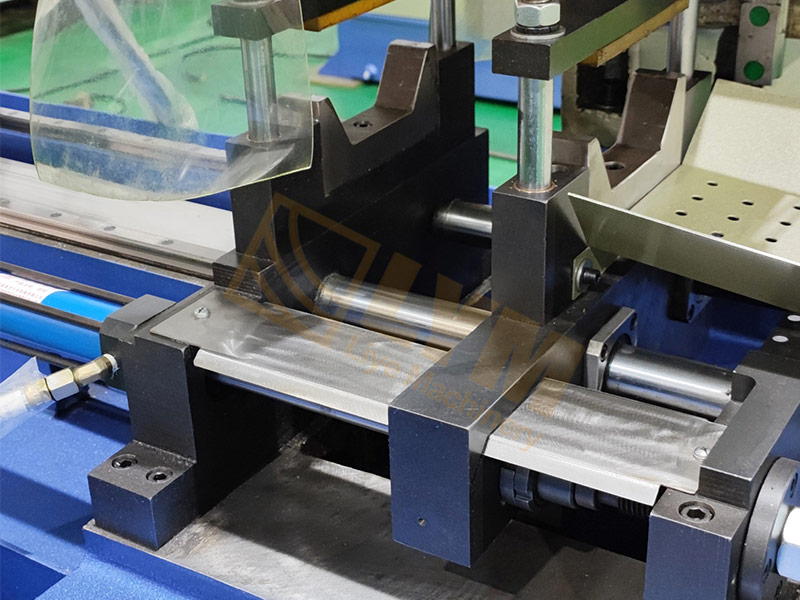

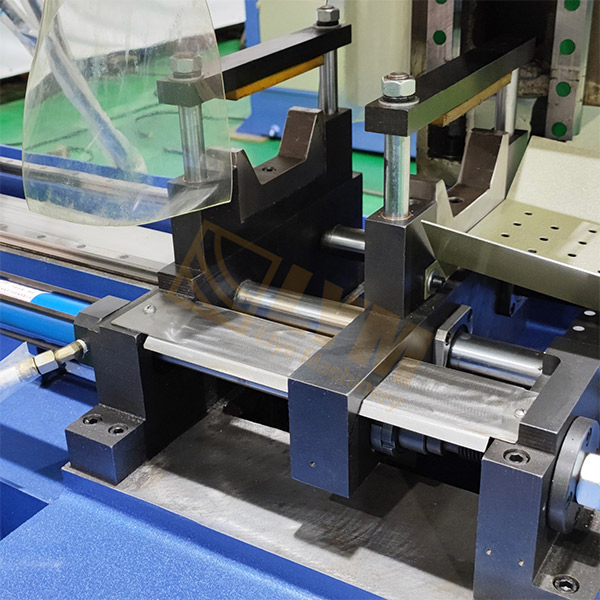

Upper and lower type clamps

YJ425CNC Fully Automatic Pipe Cutting Machine (Servo Feeding, Upper and Lower Clamping)插图7

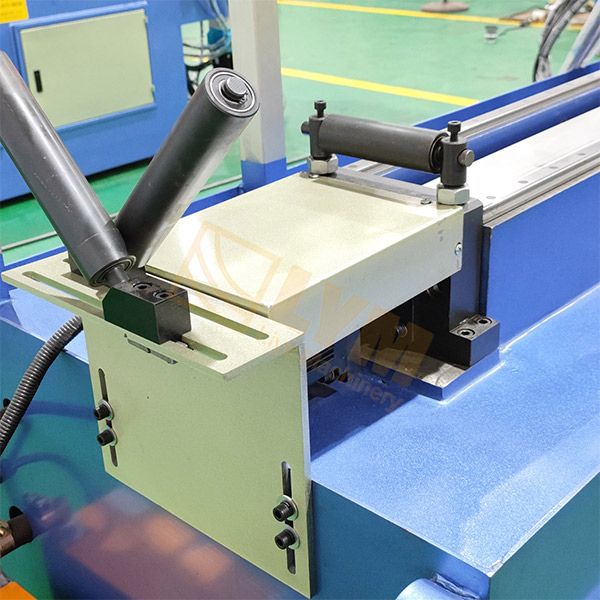

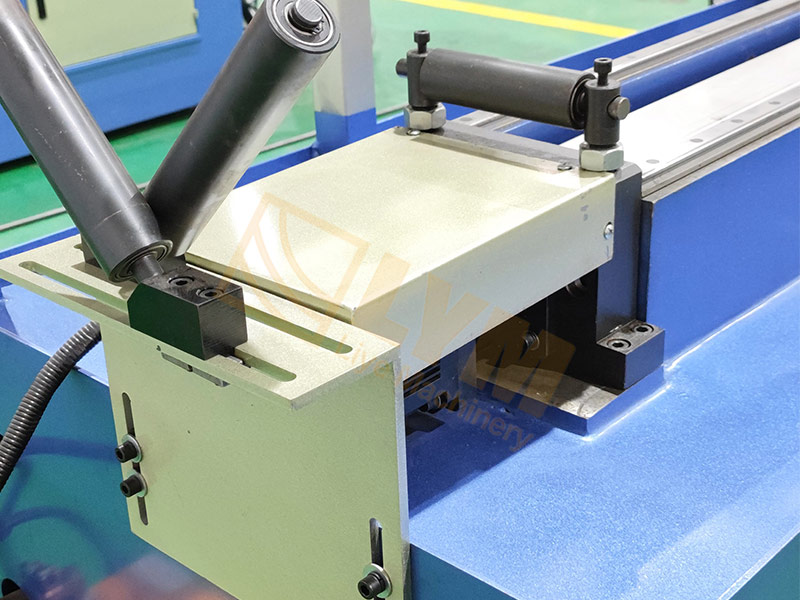

Material support roller

Samples

Related Products

Applications

YJ425CNC Fully Automatic Pipe Cutting Machine (Servo Feeding, Upper and Lower Clamping)插图17

Construction Industry

YJ425CNC Fully Automatic Pipe Cutting Machine (Servo Feeding, Upper and Lower Clamping)插图18

Automotive Industry

YJ425CNC Fully Automatic Pipe Cutting Machine (Servo Feeding, Upper and Lower Clamping)插图19

Medical Equipment

YJ425CNC Fully Automatic Pipe Cutting Machine (Servo Feeding, Upper and Lower Clamping)插图20

Furniture Industry

YJ425CNC Fully Automatic Pipe Cutting Machine (Servo Feeding, Upper and Lower Clamping)插图21

DID Not

YJ425CNC Fully Automatic Pipe Cutting Machine (Servo Feeding, Upper and Lower Clamping)插图22

Shipbuilding
