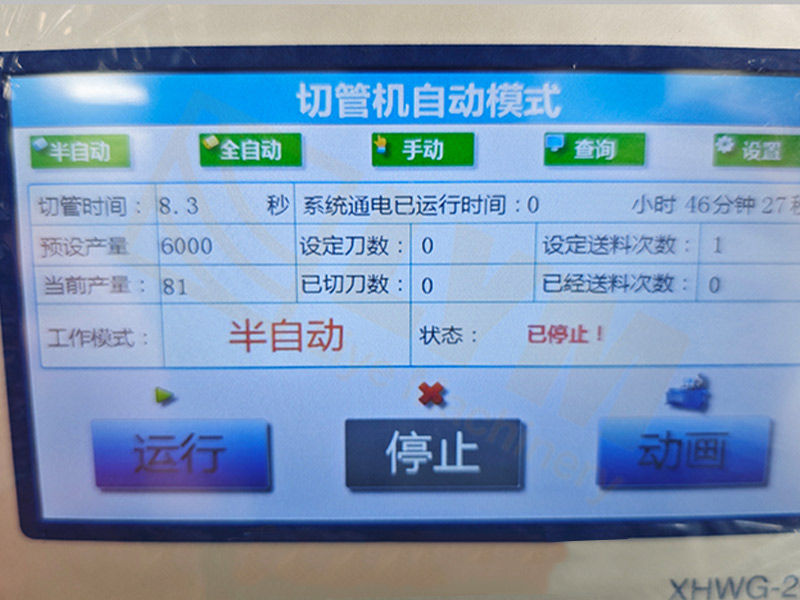

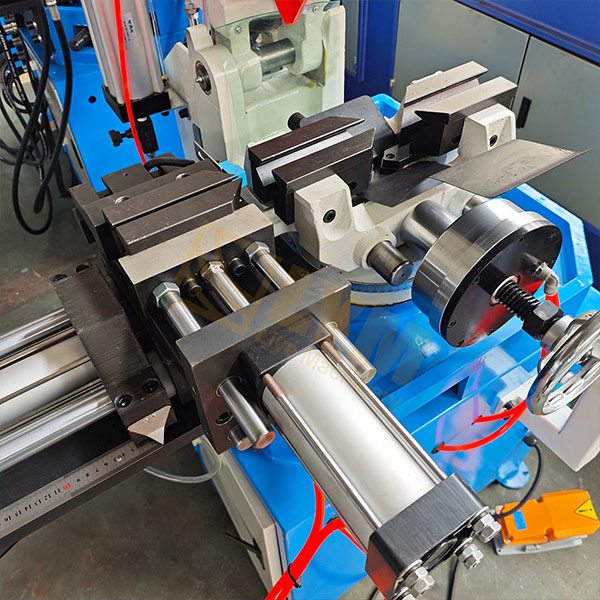

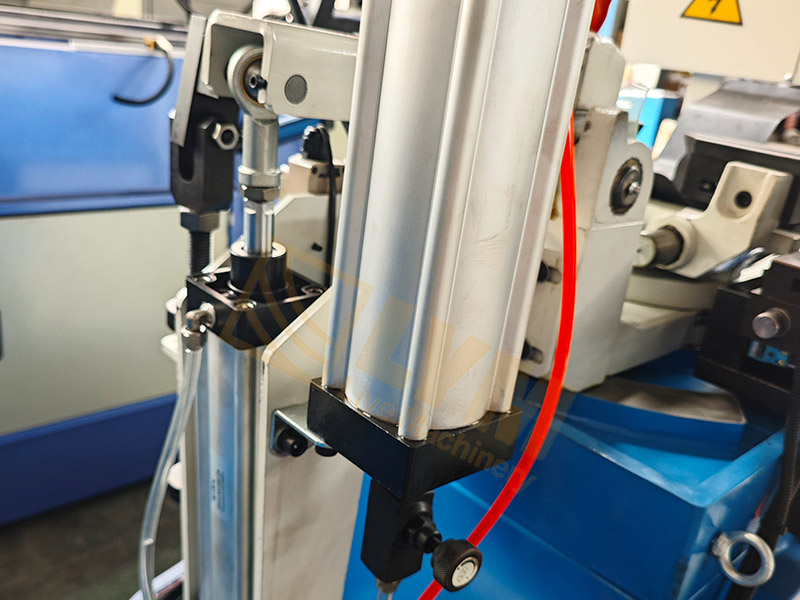

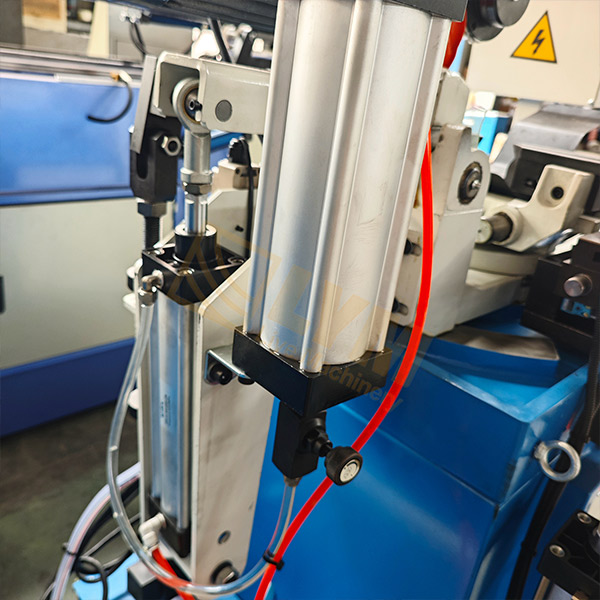

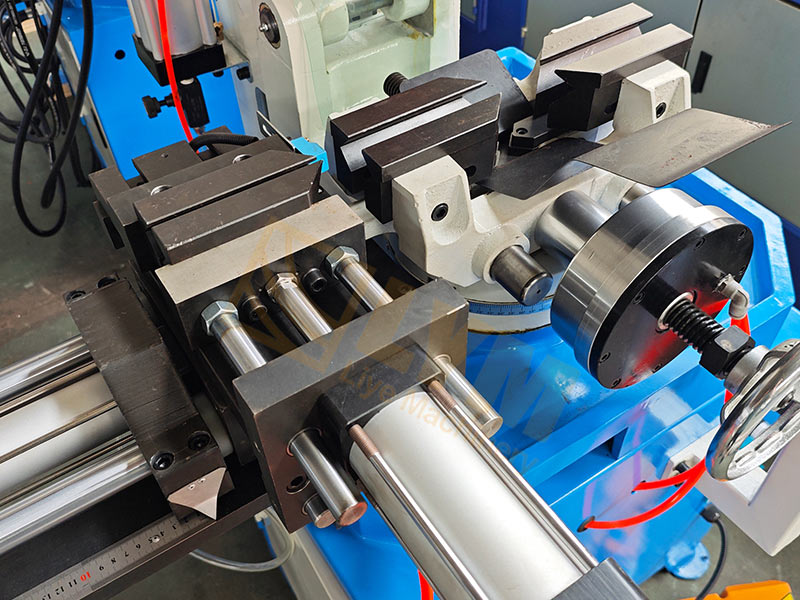

1. Automatic clamping, feeding, and cutting; single feed length 350mm (customizable extension available). Clamping, feeding, and cutting are pneumatically powered. Semi-automatic mode is available. Accurate, fast, and smooth cutting; cutting speed faster than band saws and hacksaws. Smooth, clean cut without overheating, saving on secondary processing.
2. The saw head can be adjusted arbitrarily from 45-90° on one side with precise angle control.

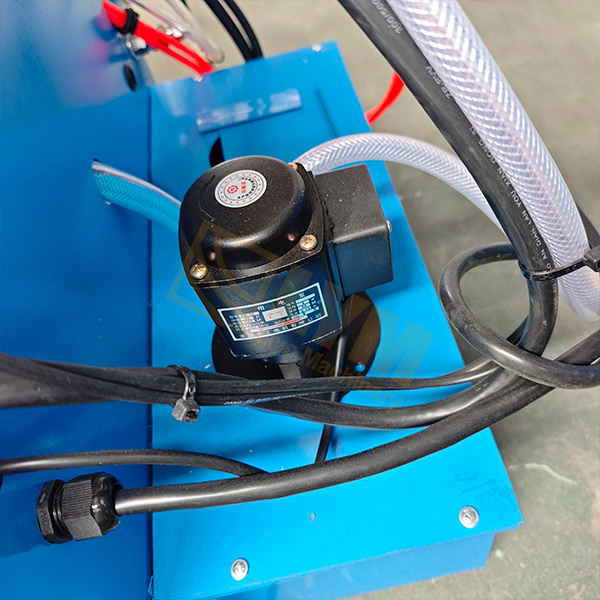

3. A robust cooling water circulation system with a cooling water pump automatically operates to ensure saw blade lifespan. Dull saw blades can be finely sharpened and reused.

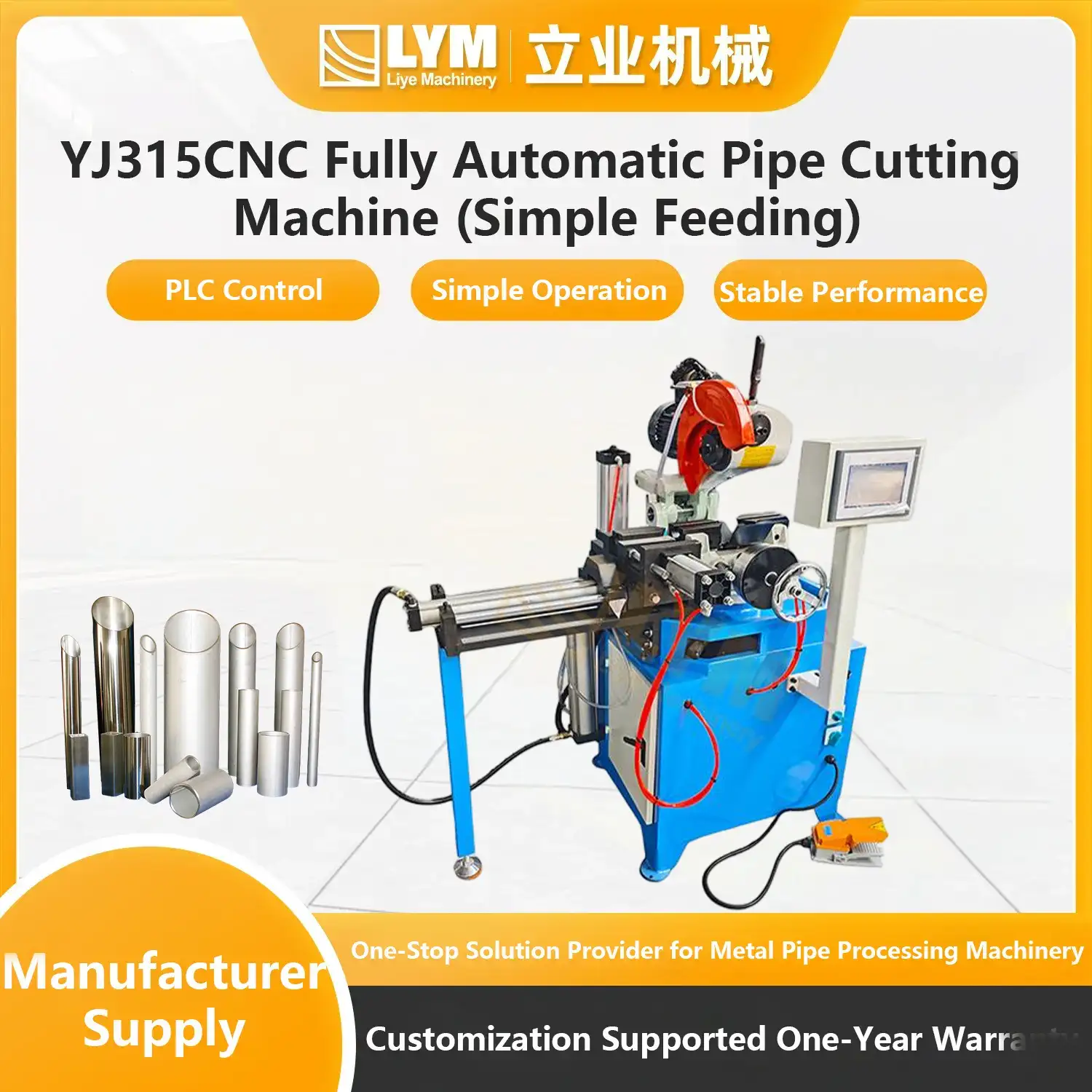

| Metal Circular Saw Cutting Machine | |
| Maximum Cutting Capacity |
Φ90mm Hollow Round Pipe 80 × 80mm Hollow Square Tube 80 × 100mm Rectangular Tube Φ35mm Solid Round Bar 30 × 30mm Solid Square Bar |
| Single Feeding Length | 350mm (Customizable) |
| Feeding Length Accuracy | ±0.2mm |

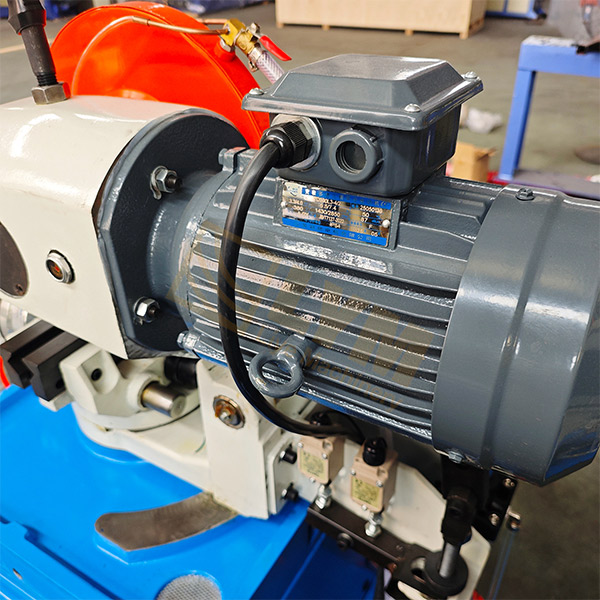

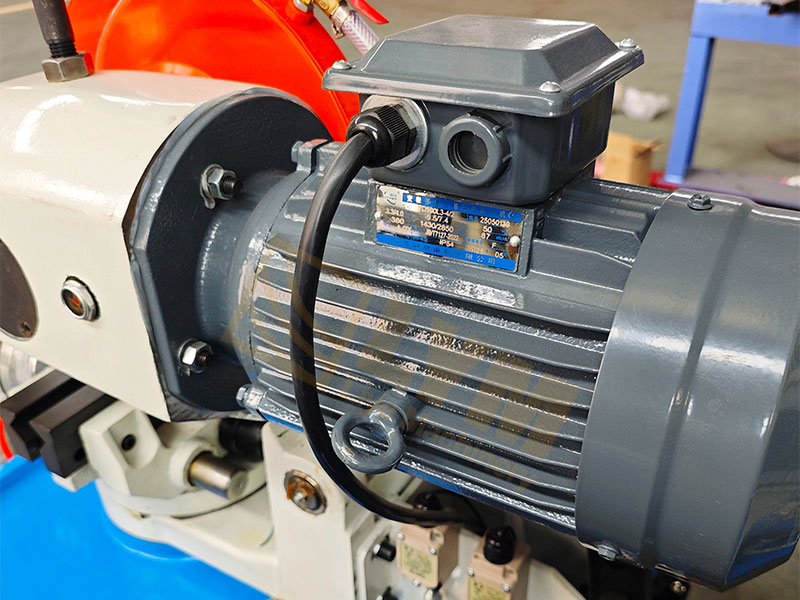

| Main Motor Power | 3.3 / 4.0 kW |
| Cooling Pump Power | 40W |
| Saw Head Rotation Angle | 45° – 90° |
| Spindle Speed | 60 / 120 rpm |
| Applicable Saw Blade | Φ275 / 300 / 315 / 325mm |
| Machine Dimensions | 1300 × 1060 × 1480mm |
| Machine Weight | 385kg |
