The LYM TEF Tube End Former Series is widely used in numerous end forming applications and industries, such as automotive exhausts, furniture, air conditioning, among others. These machines are different than conventional end forming machines, due to their low setup, high flexibility, superior precision, and compact design.

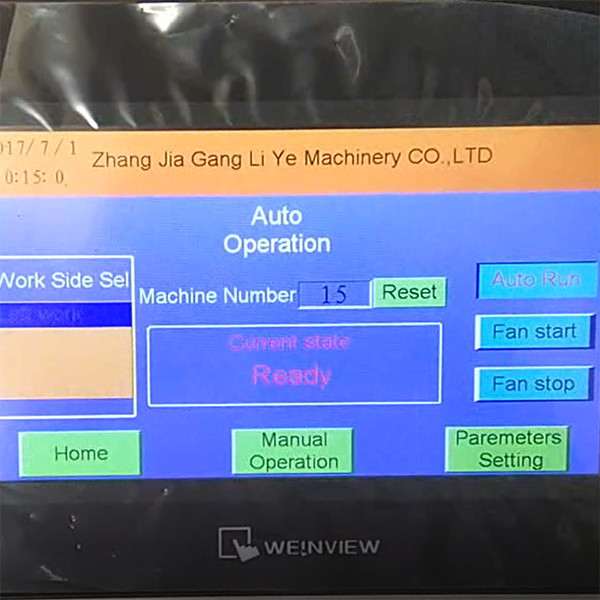

• LYM tube end forming machine is controlled by microcomputer and driven hydraulically. It applies Chinese character display and man-machine conversation operation, and can be operated manually or semi-automatically. One-point foot switch has two functions, startup and emergency stop.
• With Single-station arrangement, pipe end forming machine can shrink or expand the tube end. Applying linear guideway as the carrier, the product can ensure action without abrasion and ensure good repeatability.
• Processing shapes: convex-shaped, concavity-shaped, nodular shape, long partial shape, square shape, topological shape, oblique shape, V-shape, cracking type and flat type. The shape of the mould shall be subject to the object to be processed.
• The product has characteristics including easy operation, stable performance, high work efficiency and high safety factor and it is an ideal device for tube processing industry.
| Brand Name: | LYM |
|---|---|
| Model Number | SG120-Ⅰ |
| Type | Single station forming Vertical Type |
| Certification | CE / SGS / TUV / ISO |
| Place of Origin | China |
| Application | Pipes or solid bars, various materials such as steel, stainless, aluminum and copper |
| Packaging Details | Packed in stretch film firstly, and then reinforced with plywood for outer packing |

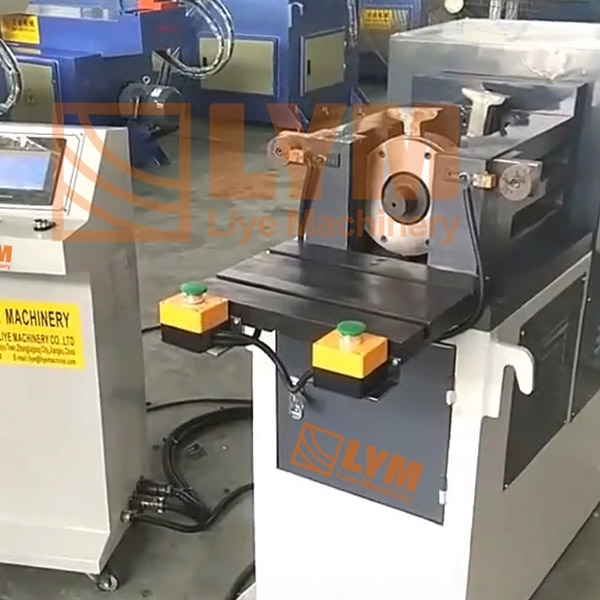

Tube diameter up to 120mm in size, 1 operating station

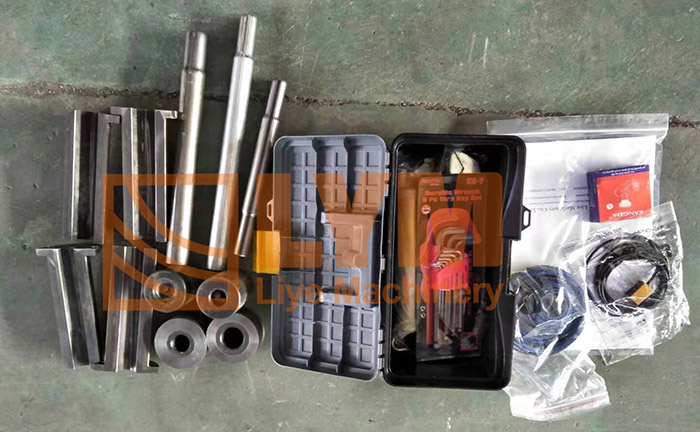

Standard accessories

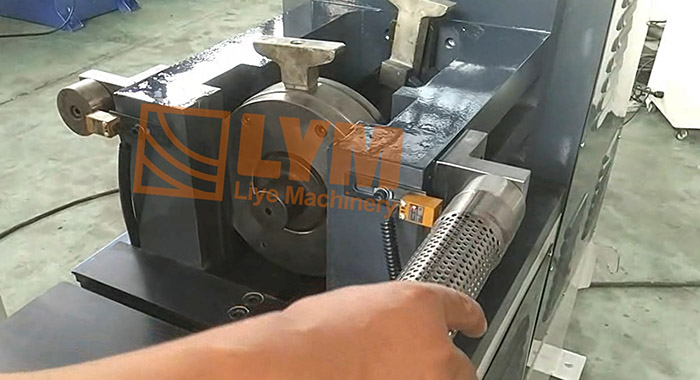

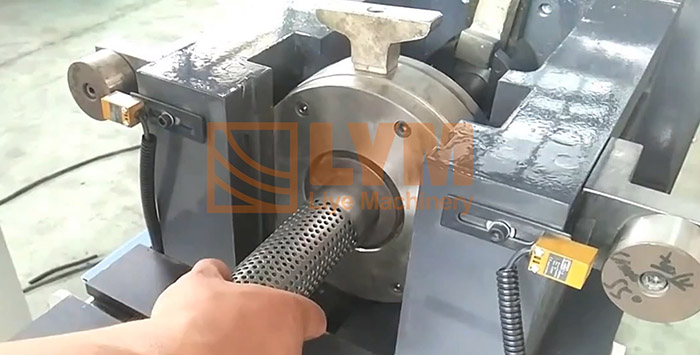

Single head forming with go/no go gauge to test the tube diameter after forming

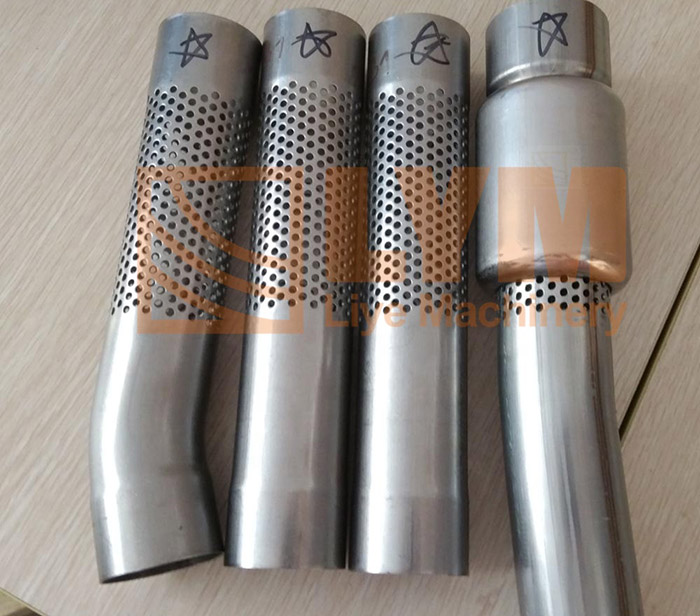

Part of the sample tube
You Name It，We Shape It LYM（Liye Machinery) tube end former can help you form various end shapes, below are the common ones.
Pipe Flaring
Flanging Connecting Fitting
End Forming+Chamfering+Cutting in one machine
Pipe end sealing nut
