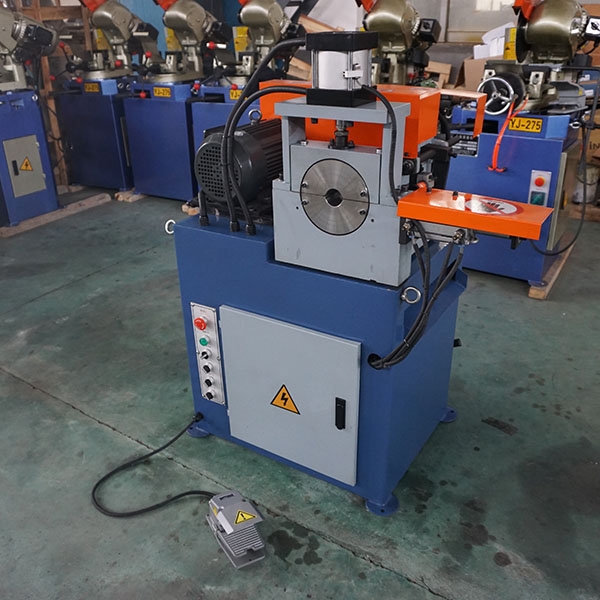

TUBE/BAR CHAMFERING MACHINE(SINGLE HEAD)

TUBE/BAR CHAMFERING MACHINE(SINGLE HEAD)

  • • The machine can complete chamfering and shaving at one time for the inner and outer angles of the end face of the pipe and rod, which is fast and accurate. • In order to ensure that the center line of the processing object and the cutter head is accurate and unchanged, the clamping die and the cutter head after precise design, can be a uniform completion of the processing object. • The cutter head is specially designed, the blade is normalized, and the tool is easy and fast to adjust. • Artificial feeding, automatic hijacking, automatic advance and retreat, fast speed, increase output. • Semi-automatic machine type has two stages of speed: the first stage is fast speed to save working time, the second stage can adjust the cutting chamfer speed to complete the processing of smooth finished surface.
Order phone:+86-13812981723
E-mail:liye@liyemachine.com

Detail

The chamfering machine is a small precision machine tool that specializes in mold manufacturing, hardware machinery, machine tool manufacturing, hydraulic parts, valve manufacturing, textile machinery chamfering, milling, planing and other processing methods.



• The Single head chamfering machine with manual feeding, automatic clamping, automatic advance and retreat knife, fast speed, large output, high efficiency, easy to operate, easy to learn and easy to understand;
• The feeding speed of the main shaft can be adjusted, with the functions of fast feeding and working.
• For different sizes of the workpiece chamfering, only need to change the clip and make a simple tool holder adjustment can be completed;
• It is the best choice for chamfering of metal objects at present.
• According to the chamfering needs, it is divided into straight chamfering and curved chamfering.
• The beveling machine solves the problem of irregular angles, rough slopes, and loud working noises in flame cutting, grinder grinding and other operating processes.
• It has the advantages of easy operation, standard angle, smooth surface, etc., has the advantages of light weight, high bevel probability, high durability, and convenient operation.
• Very suitable for: steel structure, boilers, pressure vessels, equipment manufacturing, shipbuilding, electric power, molds, chemicals, petroleum engineering, metallurgy, heads, iron towers, aerospace and other welding manufacturing fields.

Description

Brand Name: LYM
Model Number DJ52/DJ80/DJ120/DJ150
Type Single Head
Certification CE / SGS / TUV / ISO
Place of Origin China
Application Pipes or solid bars, various materials such as steel, stainless, aluminum and copper
Packaging Details Packed in stretch film firstly, and then reinforced with plywood for outer packing
TUBE/BAR CHAMFERING MACHINE(SINGLE HEAD)插图

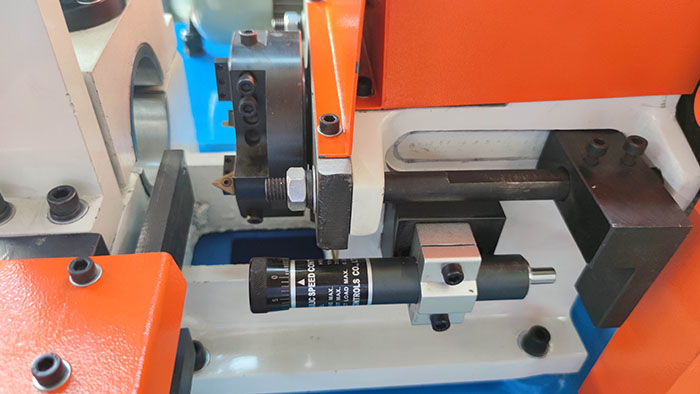

Cutter head of single head chamfering Machine(Suitable for pipe parts inside, outside corner chamfering and end face processing)

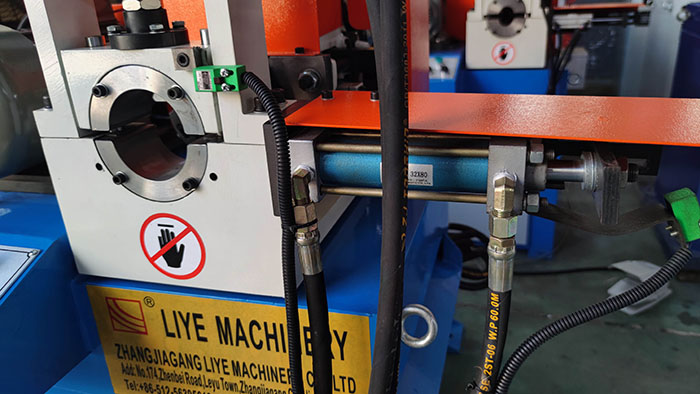

Working System

TUBE/BAR CHAMFERING MACHINE(SINGLE HEAD)插图1
TUBE/BAR CHAMFERING MACHINE(SINGLE HEAD)插图2

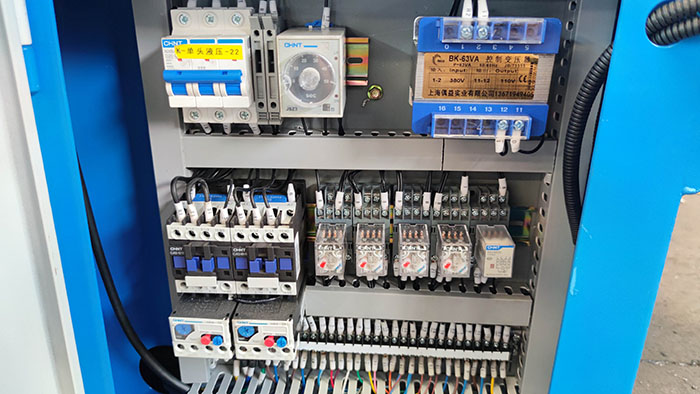

Contro system

More reliable hydraulic system

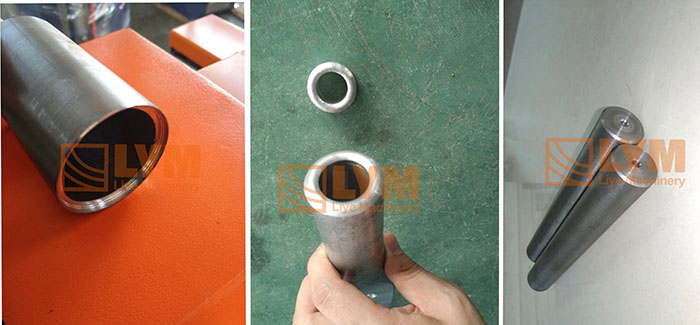

Part of the sample tube

LYM Tube/Bar chamfering machine is widely used in numerous chamfering applications and industries.

TUBE/BAR CHAMFERING MACHINE(SINGLE HEAD)插图3

PIPE/BAR CHAMFERING MACHINE MAIN TECHNICAL SPECIFICATION (SINGLE HEAD)

Model Our Diameter (mm) Processing Length (mm) Videos (Click Here)
DJ52 OD 8–52 Standard 100–600mm
(Could be longer)
DJ80 OD 8–80 Standard 100–600mm
(Could be longer)
DJ120 OD 19–120 Standard 100–600mm
(Could be longer)
DJ150 OD 19–150 Standard 100–600mm
(Could be longer)

Tube Chamfering

Bar Chamfering

Nut Chamfering

Bolt Chamfering
