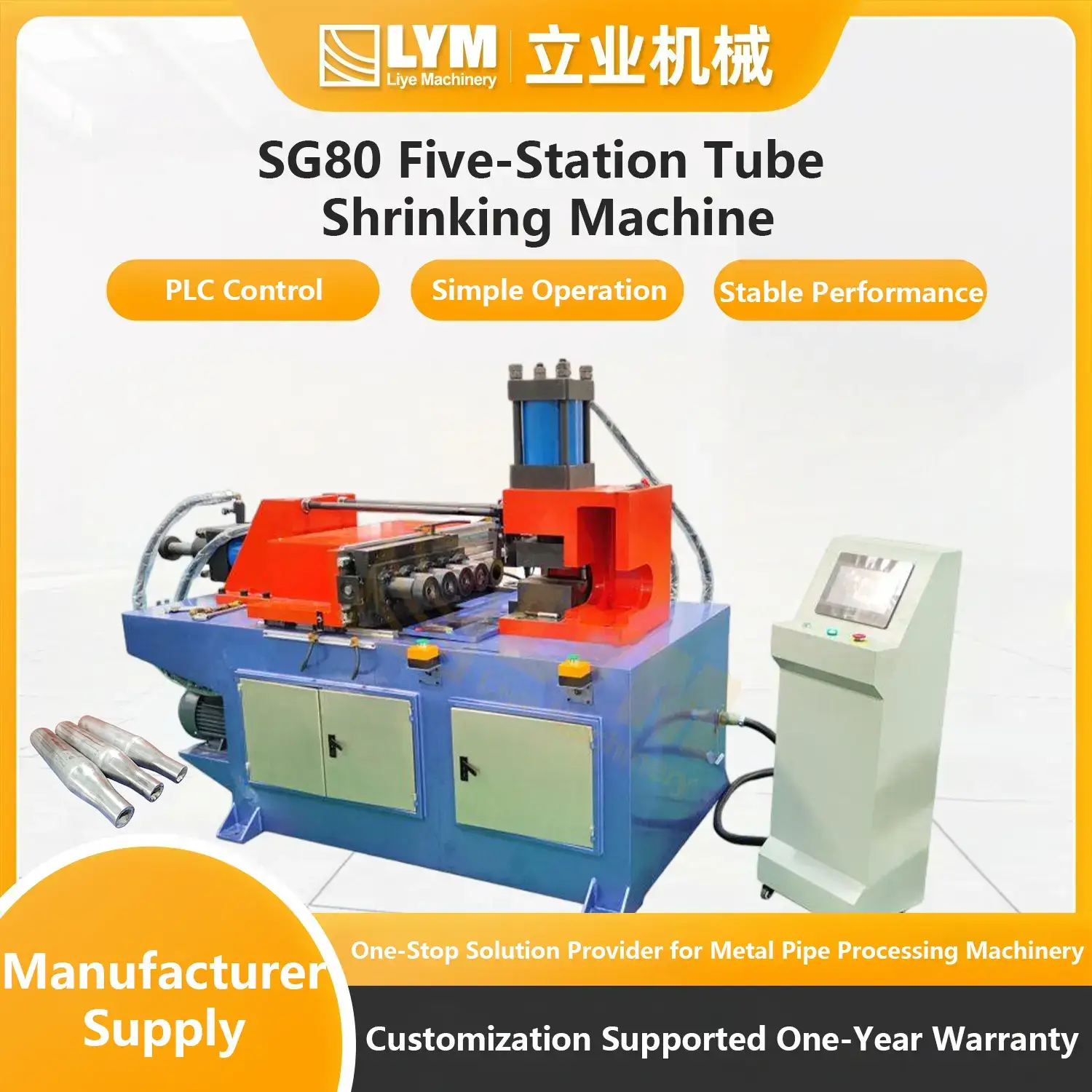

1. The SG80 Five-Station Tube Shrinking Machine is designed for automatic shrinking of scaffolding steel pipes, copper, and aluminum tubes. With five stations, it allows simultaneous multi-piece processing, improving efficiency for small to medium-scale production.

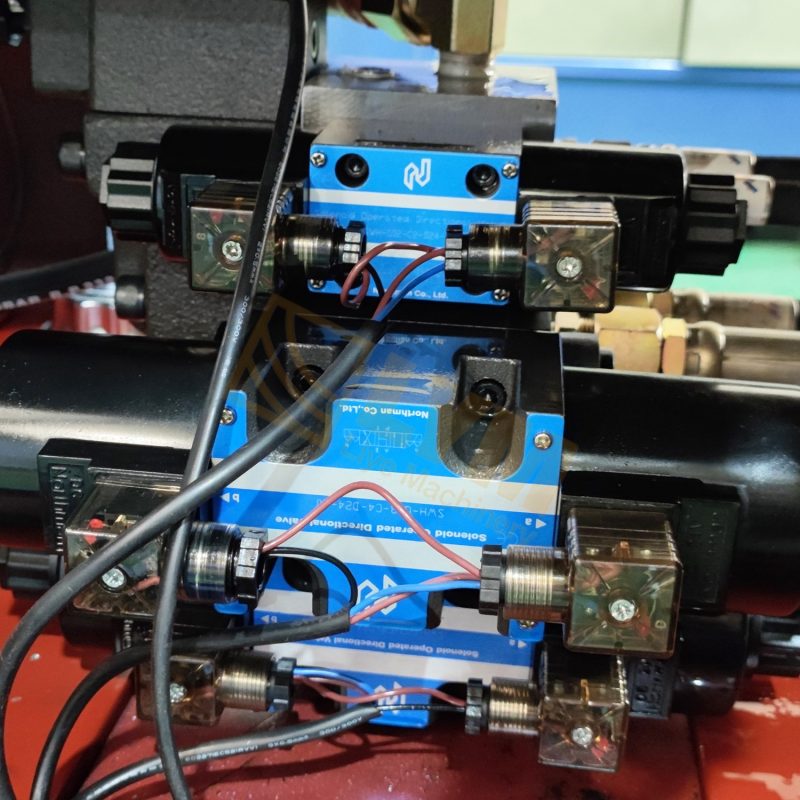

2. The machine features a hydraulic clamping and shrinking system, ensuring precise and consistent end-forming for high-pressure tubes. Adjustable shrinking stroke allows for flexible processing depending on pipe diameter and thickness.
3. Equipped with a 7.5kW hydraulic motor and 1kW servo motor for mold changing, the machine operates at a working pressure of 12MPa, providing stable and powerful forming force.

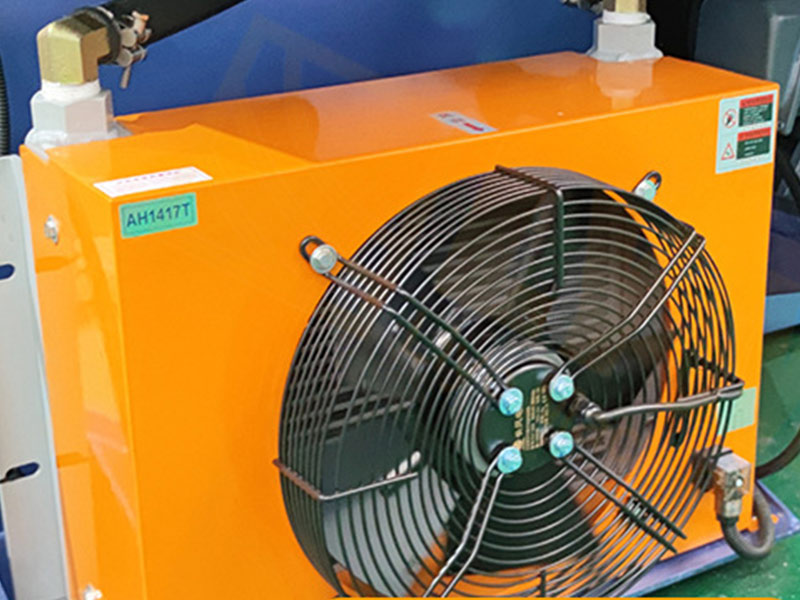

4. With a wind-cooled hydraulic system and automatic lubrication, the SG80 ensures continuous operation, reduced wear, and longer service life. Its compact design and robust structure make it suitable for production lines with space constraints.
| SG80 Five-Station Tube Shrinking Machine | |
| Maximum Shrinking Capacity (Steel Pipe): 80×4MM | Clamping Method: Hydraulic Cylinder |
| Number of Stations: Five-Station | Shrinking Method: Hydraulic Cylinder |
| Maximum Working Stroke: 150MM (customizable) | Mold Changing Method: Servo Motor |
| Shrinking Stroke: Adjustable | Front Positioning Method: Hydraulic Cylinder |
| Servo Motor Power (for Mold Changing): 1KW | Operating Language: Chinese/English |
| Hydraulic System Motor Power: 7.5KW | Power Supply: 380V 50HZ Three-Phase (customizable) |
| Hydraulic Working Pressure: 12MPA | Lubrication System: Automatic |
| Machine Dimensions: 3230×1680×1800MM | Hydraulic Oil Cooling: Air Cooler |
| Machine Weight: 2800KG | |
