1. The SG120 Three-Station Tube Shrinking Machine is designed for heavy-duty end-forming of large-diameter metal tubes such as steel, copper, and aluminum. With its three-station configuration, it enables efficient multi-process operations, improving productivity in medium to large-scale manufacturing.

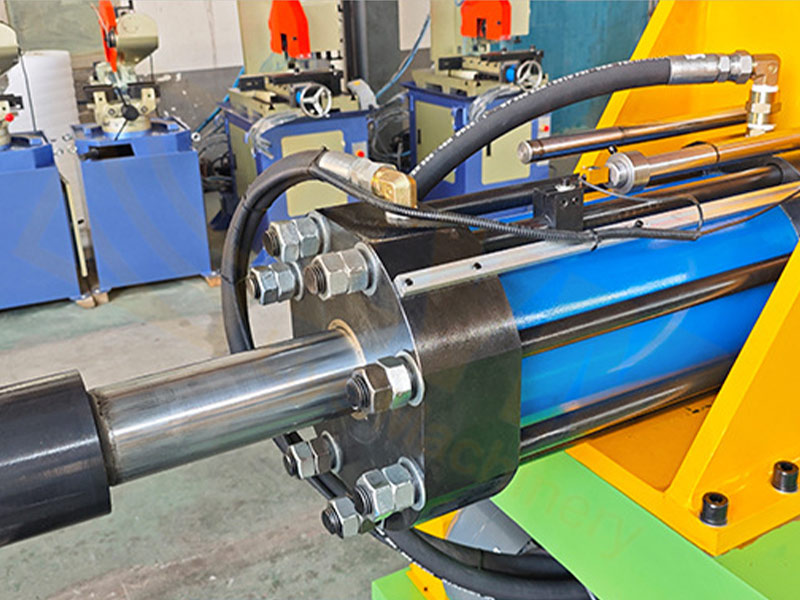

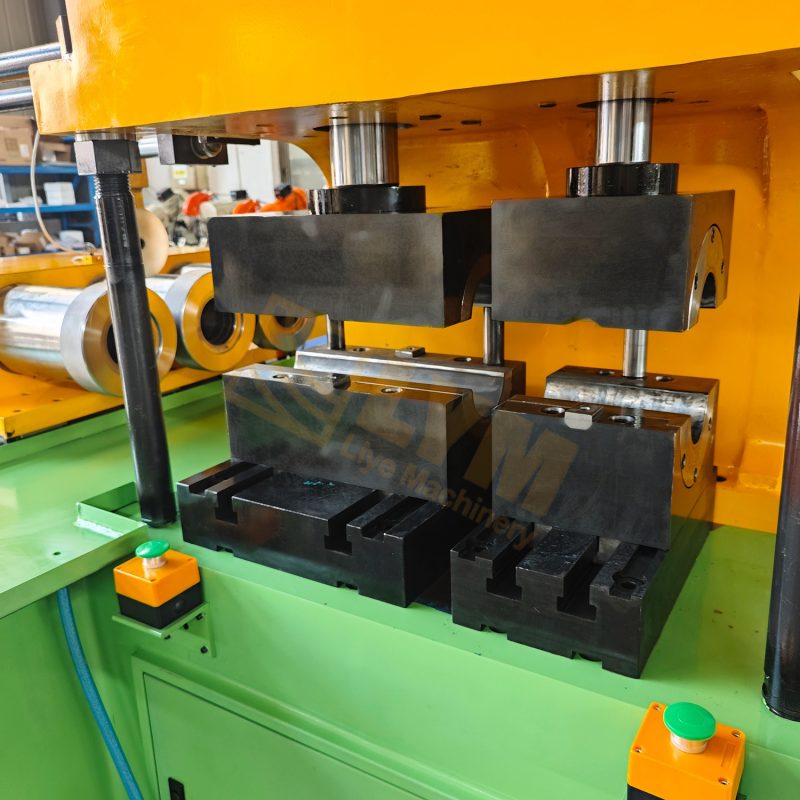

2. The machine is equipped with a double hydraulic clamping cylinder system, providing stronger and more stable clamping force during operation. Combined with a hydraulic-driven shrinking system, it ensures precise and consistent tube end forming, even for thick-walled pipes.

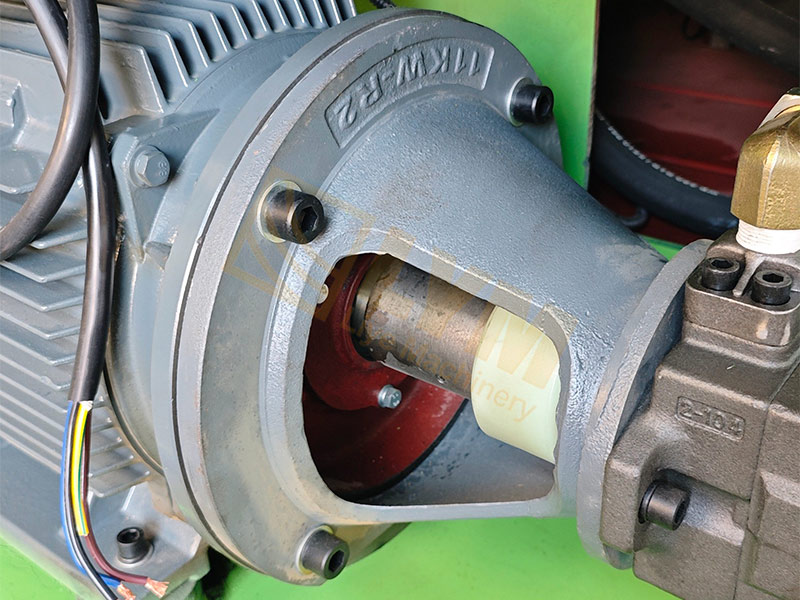

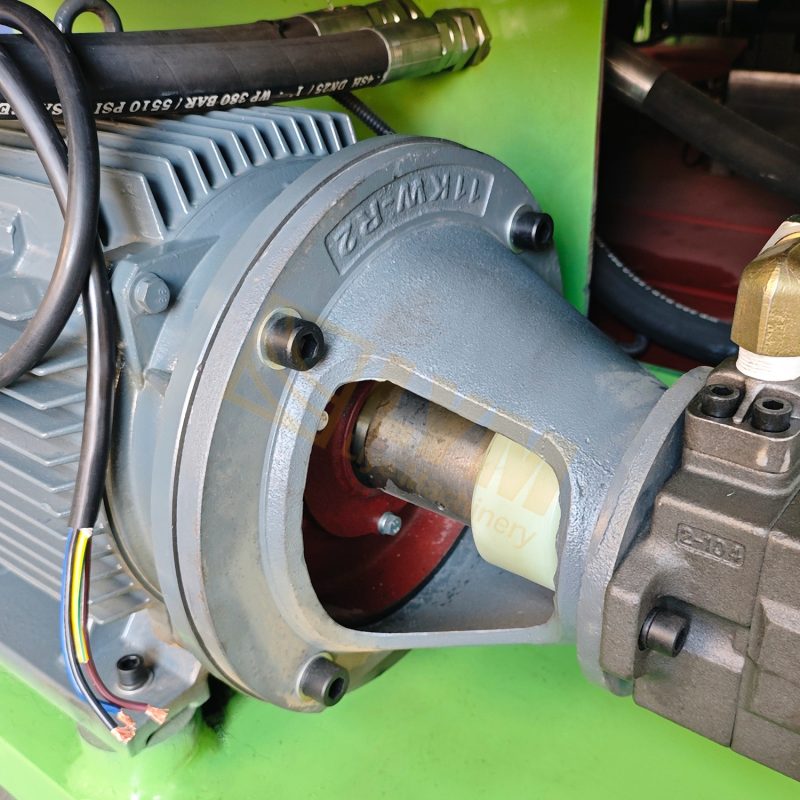

3. Powered by an 18.5kW hydraulic motor and 53L oil pump, the machine operates under a high working pressure of 16MPa. It supports long tube processing up to 6 meters, and the main cylinder stroke can be extended to meet various production requirements.
4. The system features a servo motor with a reducer for mold changing, improving efficiency and positioning accuracy. With a water cooling system and a robust machine structure, it ensures continuous operation, low vibration, and long service life, making it ideal for demanding industrial applications.
| SG120 Three-Station Tube Shrinking Machine (Double Clamping Cylinder) | |
| Maximum Shrinking Capacity (Steel Pipe): 120×5MM | Machine Weight: 6600KG |
| Maximum Shrinking Capacity (Steel Pipe): Φ80×9MM | Operating Language: Chinese/English |
| Main Cylinder Stroke: 280MM (extendable) | Mold Changing Method: Servo Motor + Reducer |

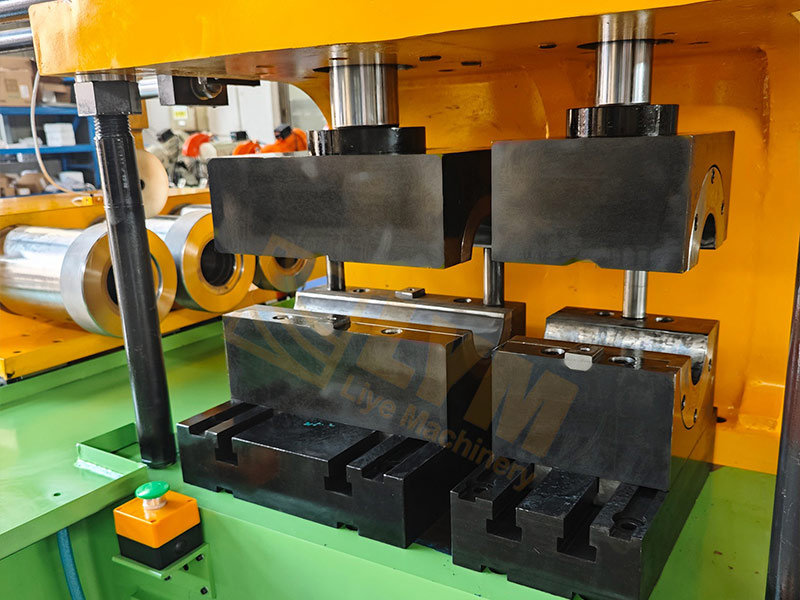

| Number of Stations: Three-Station | Clamping Method: Double Hydraulic Cylinders |
| Maximum Tube Length: 6m | Shrinking Method: Hydraulic Cylinder |
| Oil Pump: 53L | Front Positioning Method: Hydraulic Cylinder |
| Hydraulic Motor Power: 18.5KW | Ejecting Method: Double Hydraulic Cylinders |
| Hydraulic Working Pressure: 16MPA | Power Supply: 380V 50HZ Three-Phase (customizable) |
| Machine Dimensions: 3800×1950×2000MM | Cooling System: Water Cooler |
