• Semi-automatic operation
• Straight and angle cutting

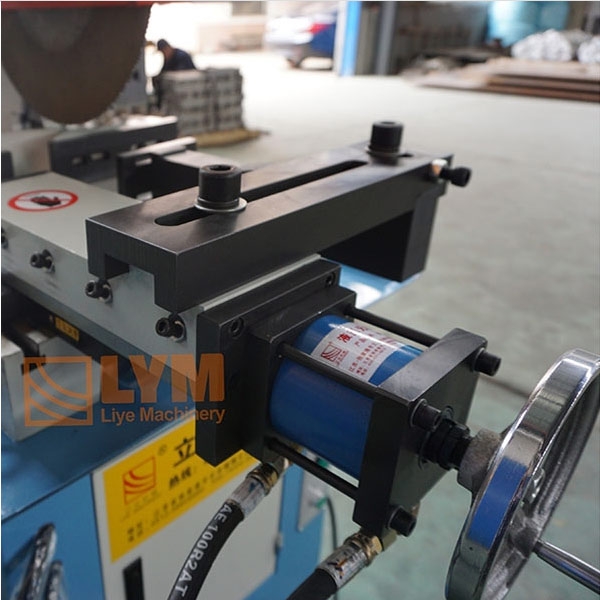

• Airlifting system for angle cut setting
• Roller Type Material Input Stand ( optional)
• Roller Type Material Output Stand and adjustable length gauge and stopper (optional)
| Brand Name: | LYM |
|---|---|
| Model Number | YJ-355Y/YJ-425Y |
| Type | HYDRAULIC CUTTING |
| Certification | CE / SGS / TUV / ISO |
| Place of Origin | China |

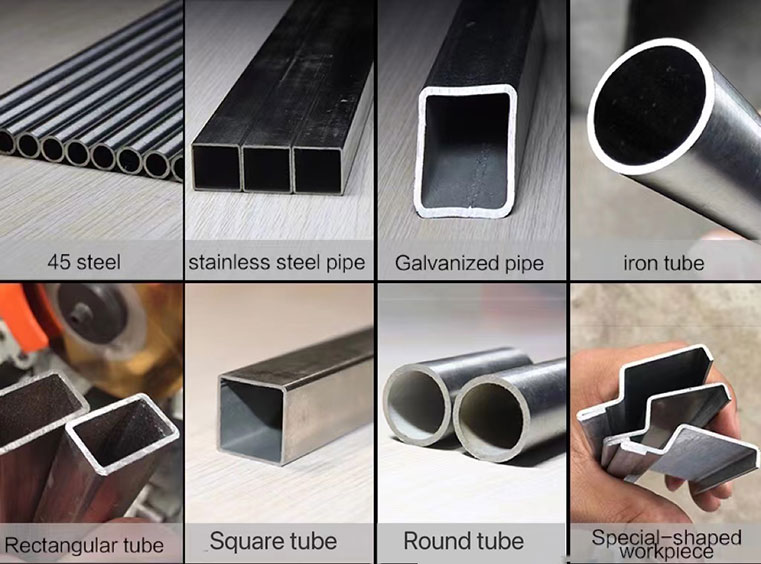

| Application | Pipes or solid bars, various materials such as steel, stainless, aluminum and copper |
| Packaging Details | Packed in stretch film firstly, and then reinforced with plywood for outer packing |

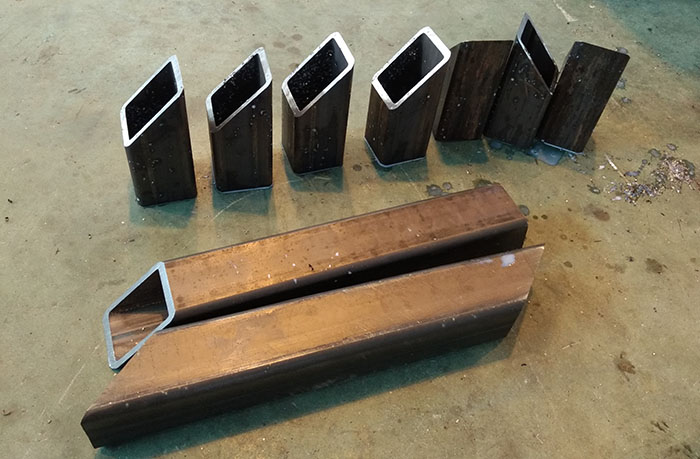

Straight and angle cutting

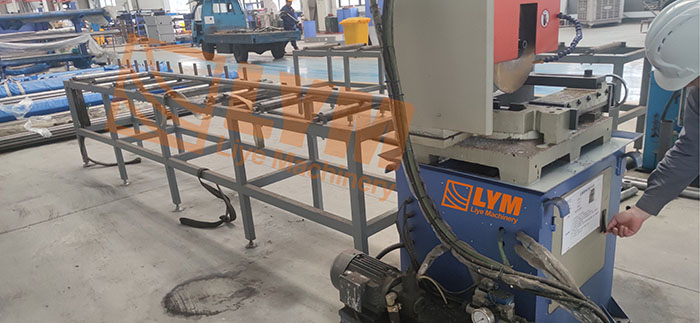

Roller Type Material Input and Output
• Roller Type Material Input Stand (optional)
• Roller Type Material Output Stand and adjustable length gauge and stopper (optional)

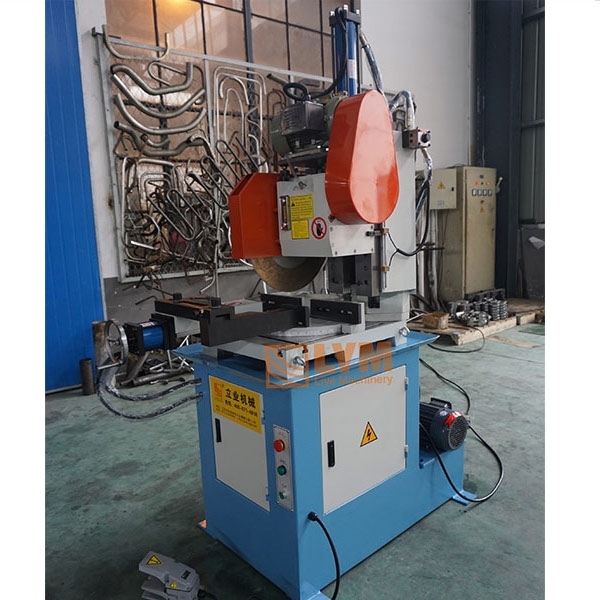

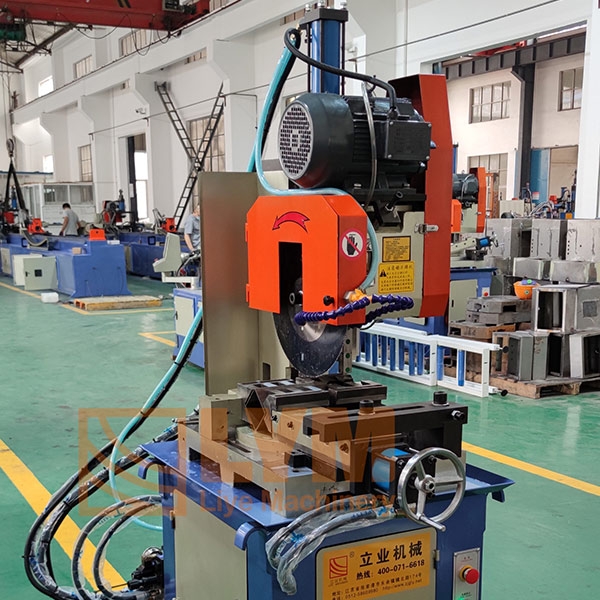

Circular Sawing Machines with Mitre Cutting

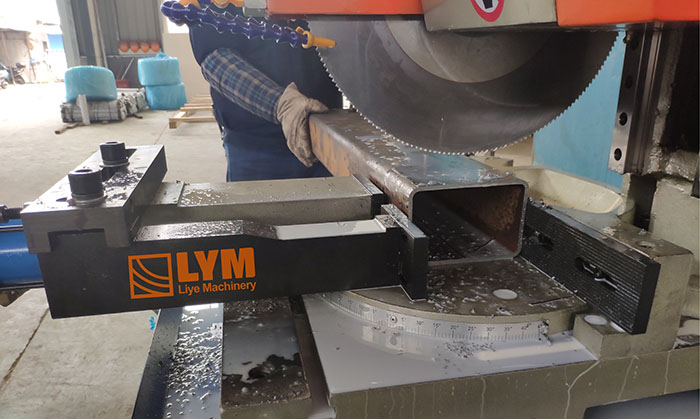

The cut is smooth,no burrs,no sparks
METAL CIRCULAR SAWING MACHINE CUTTING MILD STEEL CAPACITY ( HYDRAULIC CONTOL SERIES)
| Model | Round (mm) | Square (mm) | Rectangular (mm) | L Shaped (mm) | Solid Bar 1 (mm) | Solid Bar 2 (mm) | Video (Click Here) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 90° | 45° | 90° | 45° | 90° | 45° | 90° | 45° | 90° | 45° | 90° | 45° | ||
| YJ-355Y | 120 | 100 | 110x110 | 100x100 | 120x110 | 80x120 | 120x110 | 80x120 | 60 | 50 | 50 | 40 | |
| YJ-425Y | 140 | 110 | 130x130 | 110x110 | 130x130 | 110x110 | 140x120 | 120x110 | 70 | 60 | 60 | 50 | |
