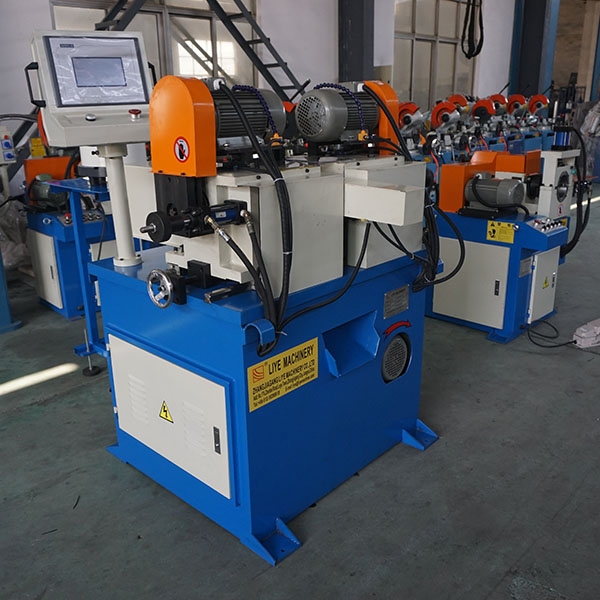

DOUBLE HEAD TUBE/BAR CHAMFERING MACHINE(SHORT MATERIAL TYPE)

DOUBLE HEAD TUBE/BAR CHAMFERING MACHINE(SHORT MATERIAL TYPE)

  • LYM Pipe/Bar chamfering machine is suitable for iron, copper, aluminum and other pipe parts inside, outside corner chamfering and end face processing a quick completion; • The machine can complete chamfering and shaving at one time for the inner and outer angles of the end face of the pipe and rod, which is fast and accurate. • Suitable for short tube/bar material,also can customized with automatically feeding and loading
Order phone:+86-13812981723
E-mail:liye@liyemachine.com

Detail

The chamfering machine with high precision that specializes in mold manufacturing, hardware machinery, machine tool manufacturing, hydraulic parts, valve manufacturing, textile machinery chamfering, milling, planing and other processing methods.



• The double head chamfering machine with automatic feeding, automatic clamping, automatic advance and retreat knife, fast speed, large output, high efficiency, easy to operate, easy to learn and easy to understand;
• The feeding speed of the main shaft can be adjusted, with the functions of fast feeding and working.
• For different sizes of the workpiece chamfering, only need to change the clip and make a simple tool holder adjustment can be completed;
• It is the best choice for chamfering of metal objects at present.
• According to the chamfering needs, it is divided into straight chamfering and curved chamfering.
• The beveling machine solves the problem of irregular angles, rough slopes, and loud working noises in flame cutting, grinder grinding and other operating processes.
• It has the advantages of easy operation, standard angle, smooth surface, etc., has the advantages of light weight, high bevel probability, high durability, and convenient operation.
• Very suitable for: steel structure, boilers, pressure vessels, equipment manufacturing, shipbuilding, electric power, molds, chemicals, petroleum engineering, metallurgy, heads, iron towers, aerospace and other welding manufacturing fields.

Description

Brand Name: LYM
Model Number DJ52/DJ80/DJ120
Type Double Head(short material type)
Certification CE / SGS / TUV / ISO
Place of Origin China
Application Pipes or solid bars, various materials such as steel, stainless, aluminum and copper
Packaging Details Packed in stretch film firstly, and then reinforced with plywood for outer packing
DOUBLE HEAD TUBE/BAR CHAMFERING MACHINE(SHORT MATERIAL TYPE)插图

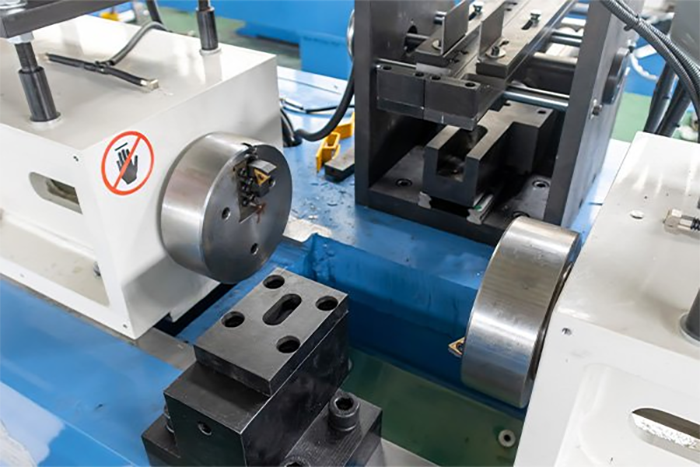

Cutter head of double head chamfering Machine(Suitable for pipe parts inside, outside corner chamfering and end face processing)

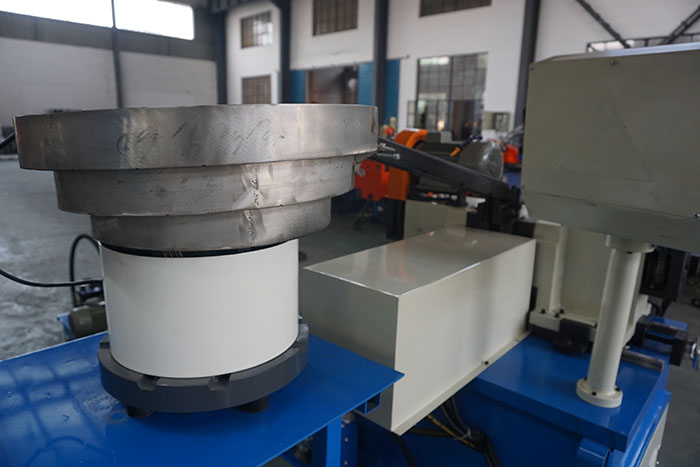

Simple automatic feeding vibration plate

DOUBLE HEAD TUBE/BAR CHAMFERING MACHINE(SHORT MATERIAL TYPE)插图1
DOUBLE HEAD TUBE/BAR CHAMFERING MACHINE(SHORT MATERIAL TYPE)插图2

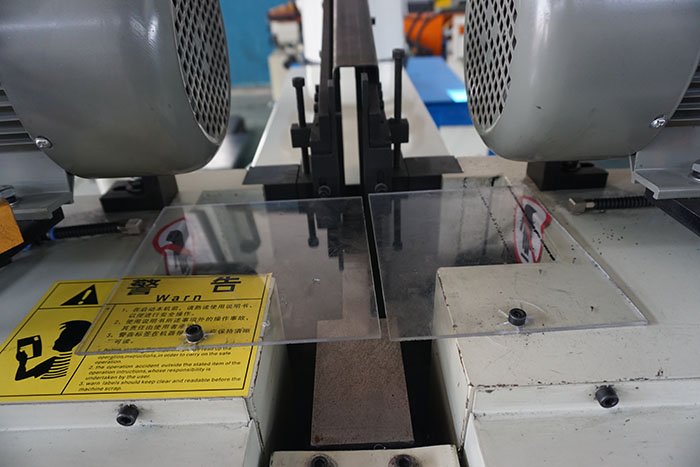

Splash Protection Cover

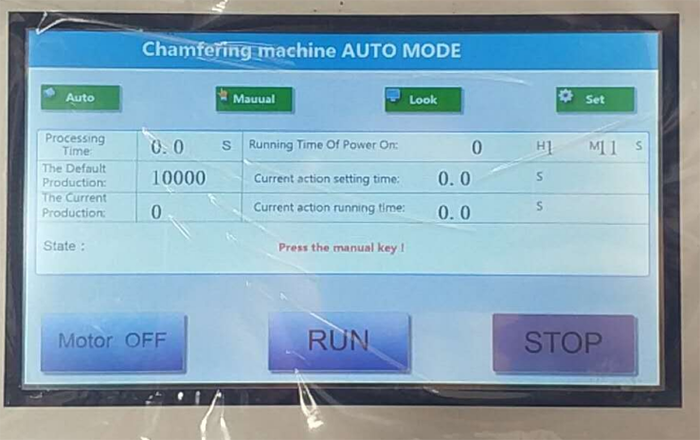

Operation Interface

LYM Tube/Bar chamfering machine is widely used in numerous chamfering applications and industries.

DOUBLE HEAD TUBE/BAR CHAMFERING MACHINE(SHORT MATERIAL TYPE)插图3

Tube Chamfering

Bar Chamfering

Nut Chamfering

Bolt Chamfering
