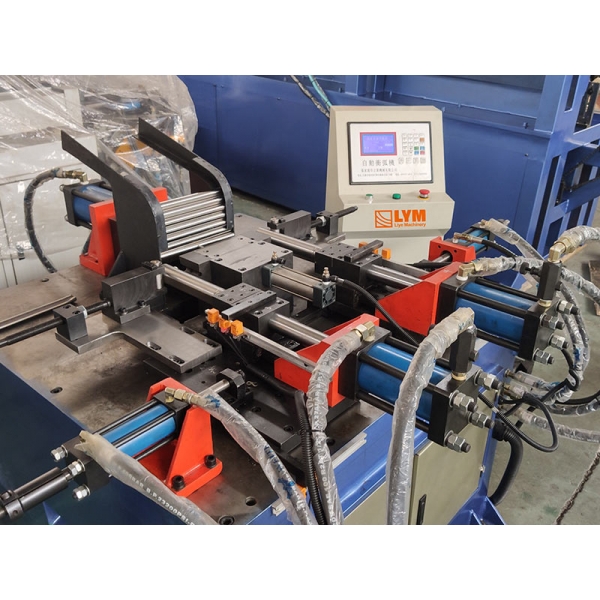

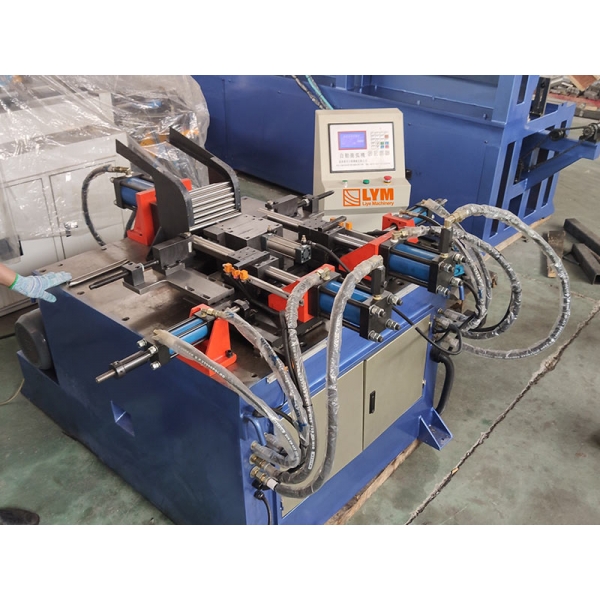

High-speed tube arc punching machine Features
• 20°-90° arc can be made.
• Positive punching and reverse punching are all available.
• Both straight tubes and elbows can be processed.
• Compared with punching machine, it has wider processing range, safer operation, simpler mode change and lower noise.
| Brand Name: | LYM |
|---|---|
| Model Number | CH40/CH50/CH80/CH100/CH120 |
| Type | AUTOMATIC DOUBLE END PUNCHING |
| Certification | CE / SGS / TUV / ISO |
| Place of Origin | China |
| Application | Pipes or solid bars, various materials such as steel, stainless, aluminum and copper |
| Packaging Details | Packed in stretch film firstly, and then reinforced with plywood for outer packing |
Capacity up to 120mm for Tube

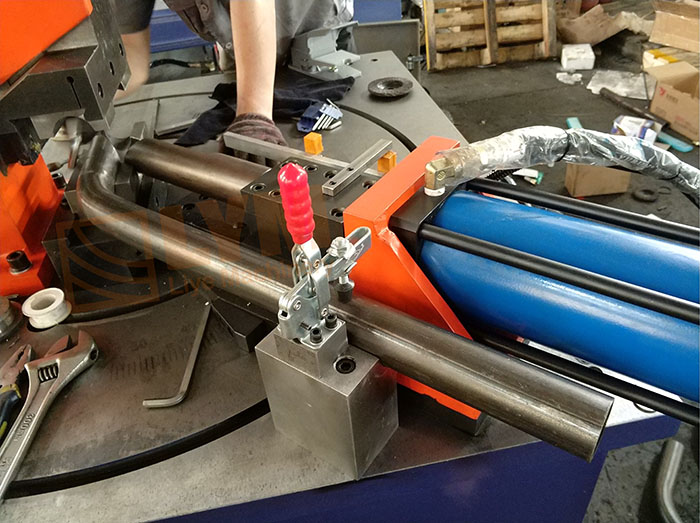

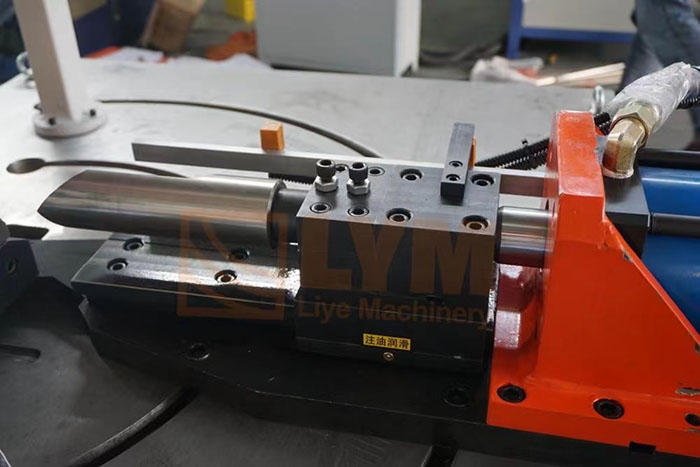

Notching Part
• Positive punching and reverse punching are all available.
• Both straight tubes and elbows can be processed.
20°-90° arc can be made.

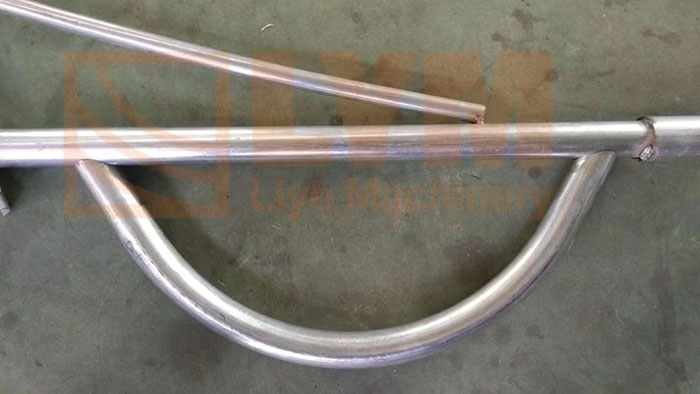

Some Samples
| Model | Punching Capacity (mm) | Adjustable Angle (°) |
|---|---|---|
| CH40 | 40 | 20~90 |
| CH60 | Φ60 | 20~90 |
| CH80 | Φ80 | 20~90 |
| CH100 | Φ100 | 20~90 |
| CH120 | Φ120 | 20~90 |

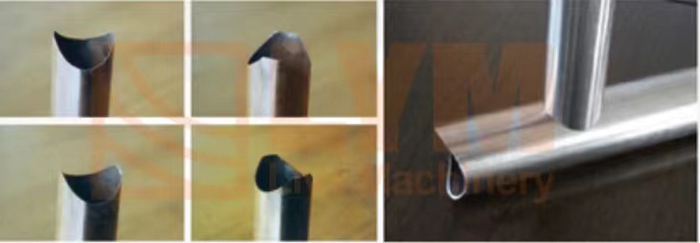

Forward And Backward Notching
Arc Punching+Flattening
Rectangular Tube Arc Notching
Oval Tube Arc Notching
