1. The DJ80Y Hydraulic Single-Head Chamfering Machine is designed for efficient chamfering and end-face processing of round tubes and round bars. It is suitable for stainless steel, steel, aluminum, and other metal materials.
2. The machine adopts a hydraulic clamping and feeding system, providing stable operation, smooth processing performance, and accurate chamfering results for various metal workpieces.
3. Equipped with automatic feeding, automatic clamping, and automatic forward/backward tool movement, the machine greatly improves production efficiency while reducing manual labor intensity.
4. The precision-designed clamping mold and cutter disc ensure accurate center alignment between the workpiece and cutter head, enabling uniform processing of outer chamfers, inner chamfers, and end faces in one operation.
5. Adjustable chamfering speed and a two-stage feeding system help improve processing quality, increase productivity, and extend tool service life for different metal materials.
DJ80Y Hydraulic Single-Head Chamfering Machine
Chamfering Capacity: Φ10-Φ80MM
Machine Weight: 260KG
Machine Dimensions: 1050×920×1100MM
Main Motor Power: 2.2KW
Applicable Materials: Round Tube, Round Bar

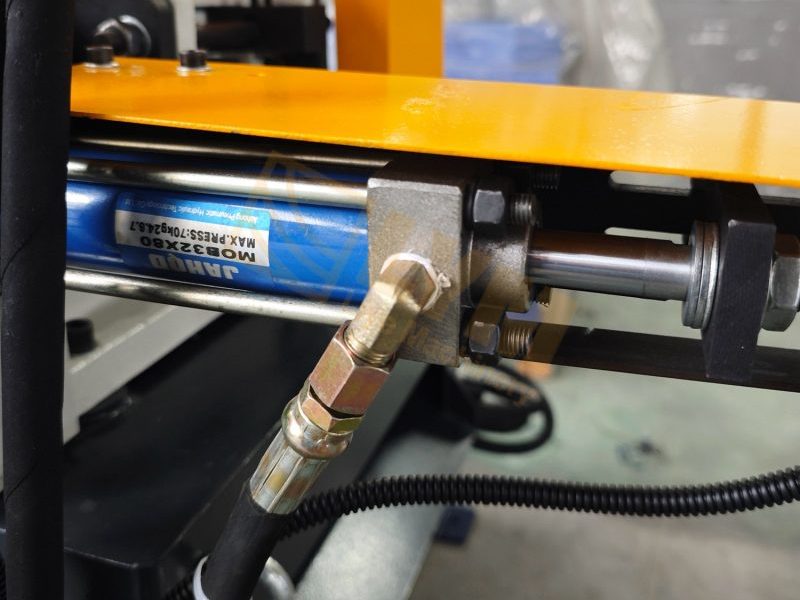

Clamping Method: Hydraulic Cylinder
Oil Pump Motor Power: 0.75KW
Positioning Method: Hydraulic Cylinder
Processing Length: ≥50MM
Feeding Method: Hydraulic Cylinder
Processing Accuracy: ±0.1MM
Chamfering Speed: Adjustable
Working Pressure: 12MPA
Power Supply: 380V 50HZ Three-Phase (customizable)
