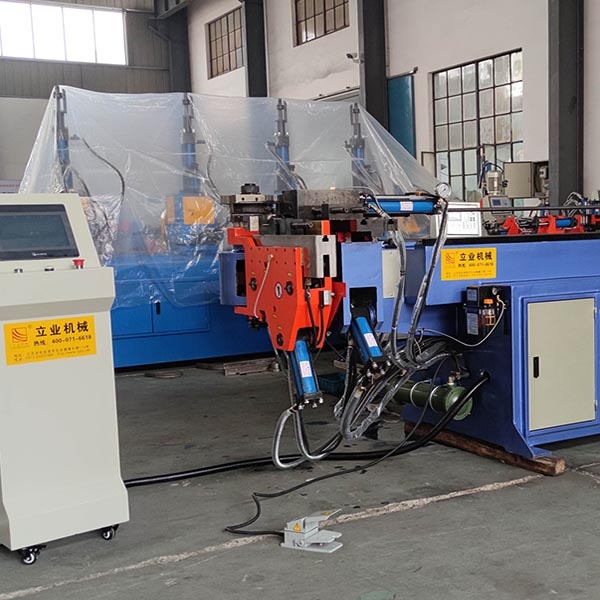

AUTO Pipe Bending Machine(2+1 series) Features :
Hydraulic pressure die assist for every bending stack.
Equipped with Wiper, clamping, and pressure die seats.
Touch screen system.
Electric servo-controlled feeding and rotation axis to ensure high precision (+- 0.1 mm and +- 0.1°) and reliability.
NC programmable hydraulic bending precision up to +- 0.2°
Automatic springback compensation.
Data input by XYZ or YBC coordinates.
Data storage and editing for multiple files.
Automatic mandrel lubricating system (Optional).
| Brand Name: | LYM |
|---|---|
| Model Number | DW18CNCX2A-1S/DW25CNCX2A-1S/DW38CNCX1A-1S/DW50CNCX2A-1S/DW50CNC2A-2S/DW63CNCX2A-1S/DW63CNC2A-2S/DW75CNCX2A-1S/DW89CNCX2A-1S/DW100CNCX2A-1S/DW114CNCX2A-1S/DW130CNCX2A-1S/DW168CNCX2A-1S |
| Type | CNC CONTROL AUTOMATIC (2 ELECTRIC AXIS +1 HYDRAULIC) |
| Certification | CE / SGS / TUV / ISO |
| Place of Origin | China |
| Application | Pipes or solid bars, various materials such as steel, stainless, aluminum and copper |
| Packaging Details | Packed in stretch film firstly, and then reinforced with plywood for outer packing |
CNC 2 Axis with NC Hydraulic Bending, Capacity up to OD 168mm

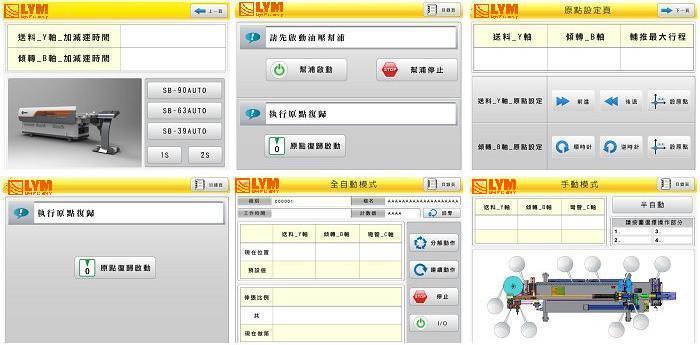

AUTO series :LYM Controls, Software and Operation Interface
| Model | Bending Capacity (mm) | Max Bending Radius (mm) | Motor Power (Kw) | Videos (Scan code) |
|---|---|---|---|---|
| DW18CNCX2A-1S | OD 18 | R80 | 3 |  |
| DW25CNCX2A-1S | OD 25.4 | R100 | 3 | |
| DW38CNC2A-1S | OD 38.1 | R180 | 4 | |
| DW50CNCX2A-1S | OD 50.8 | R250 | 5.5 | |
| DW50CNCX2A-S | OD 50.8 | R250 | 5.5 | |
| DW63CNCX2A-1S | OD 63.5 | R250 | 5.5 | |
| DW63CNCX2A-2S | OD 63.5 | R250 | 5.5 | |
| DW75CNCX2A-1S | OD 76.2 | R250 | 7.5 | |
| DW89CNCX2A-1S | OD 88.9 | R250 | 11 | |
| DW100CNCX2A-1S | OD 110 | R350 | 15 | |
| DW114CNCX2A-1S | OD 114 | R350 | 22 | |
| DW130CNCX2A-1S | OD 127 | R400 | 22 | |
| DW168CNCX2A-1S | OD 168 | R500 | 22 | |

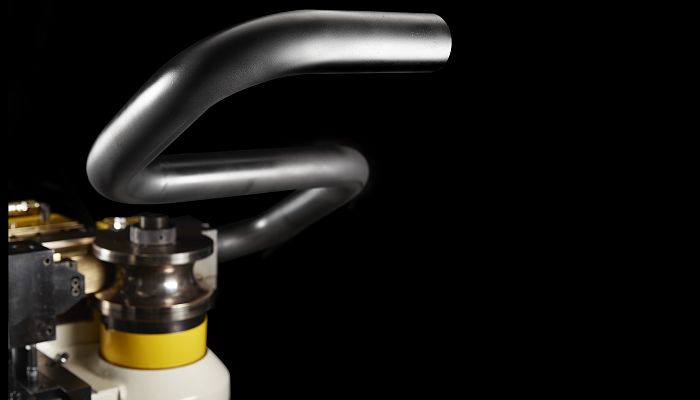

Auto pipe bending machine tube bender for car exhaust
Office chair,rack,shelf
Office chair,rack,shelf
Car forklift tricycle cab pipeline
