• The cutting machine is controlled by PLC and driven by hydraulic pressure. The display operating system is a touch menu type, with a variety of prefabricated cutting lengths,man-machine dialogue operation, manual and fully automatic operation modes can be selected arbitrarily, safety switches Both start and emergency stop functions.
• The hydraulic system, control system, drive system, display system, etc. all adopt imported parts with high reliability, which are high in accuracy and efficiency, and are suitable for mass production.

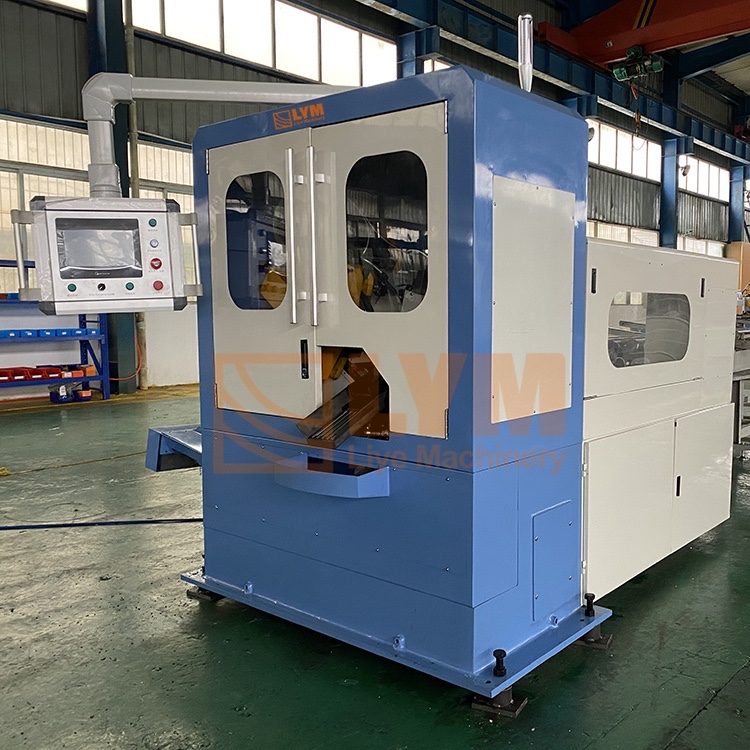

• It is a CNC fully automatic cold saw, equipped with automatic loading and unloading and tail grabbing devices, and the entire sawing process is automatically completed by entering the program. The whole machine has the characteristics of convenient operation, stable performance, high work efficiency, and high safety factor. It is an ideal equipment for the tube and rod processing industry.
| Brand Name: | LYM |
|---|---|
| Model Number | MC-80CNC/MC-120CNC |
| Type | AUTOMATIC CNC CONTROL |
| Certification | CE / SGS / TUV / ISO |
| Place of Origin | China |
| Application | Pipes or solid bars, various materials such as steel, stainless, aluminum and copper |
| Packaging Details | Packed in stretch film firstly, and then reinforced with plywood for outer packing |
Capacity up to 120mm for Solid Bars
Dynamic Cutting
• Fast Approach Speed
• Low Speed during blade entry
• High Speed after cutting through the tube’s wall
• Lowest Speed at re-entry into tube’s lower wall
Software
• LYM Recommendation System for ideal settings based on material and cutting requirements
• Intuitive and user-friendly interface with Touch Screen System
• Digital counter for automatic operation (Cutting length / Quantity set up / Counter)
| Model | Round Tube (mm) | Square Tube (mm) | Rectangular (mm) | Solid bar (mm) | Solid square bar (mm)) |
|---|---|---|---|---|---|
| MC-80CNC | 80 | 67X67 | 80X40 | 80 | 67X67 |
| MC-120CNC | 120 | 100X100 | 120X60 | 120 | 100X100 |
