Pipe and bar Tailing Cutting
• LYM pipe cutting machine can set tailing cutting function,set the shortest crop lengths, the YJ-T bring maximum material savings and more production
Performance
• Vertical Slide for maximum cutting power and rigidity
• Capacity up to 120mm in Tube and 70 mm in Solid Bars

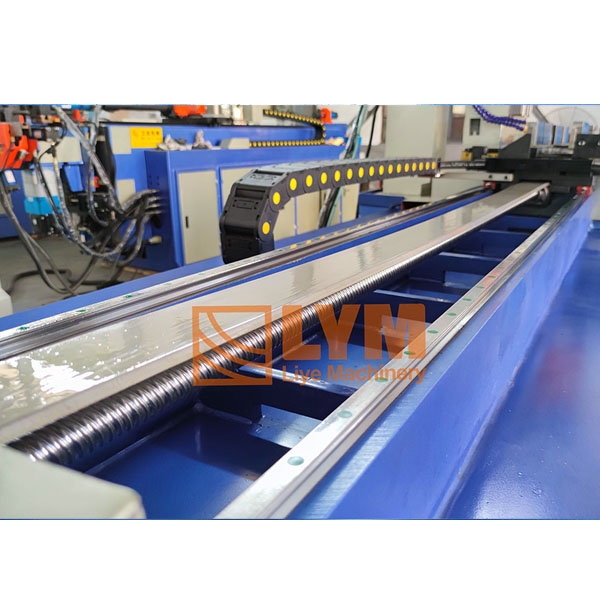

• Flexible Gripper Feeding make the feeding precision
• Patented automatic angle rotation cutting for tubes and bars
Software

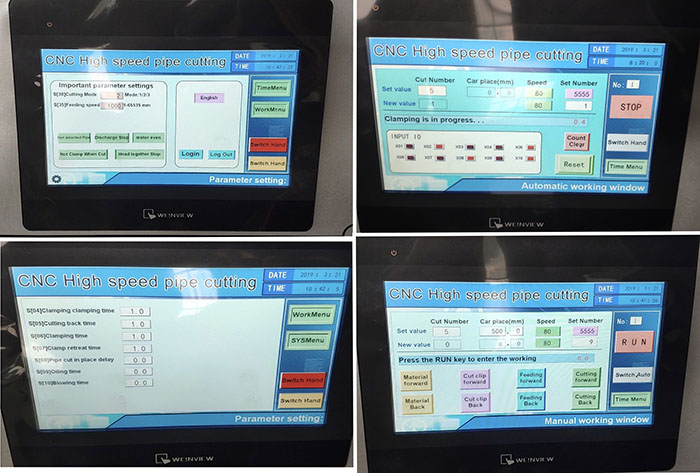

• Intuitive and User-Friendly Interface with Touch Screen system
• Ability to program multiple cutting lengths per pipes and bars
• Large file storage system
• Safety Covers (optional) for maximum operator protection and comfort
• Ability to use Flat and Bundle clamps for multiple tubes cutting
| Brand Name: | LYM |
|---|---|
| Model Number | YJ-325CNC-S/YJ-355CNC-S/YJ-425CNC-S |
| Type | AUTOMATIC SERVO FEEDING+CUTTING+ROTATION(OPTIONAL)+TAILING CUTTING(OPTIONAL) |
| Certification | CE / SGS / TUV / ISO |
| Place of Origin | China |
| Application | Pipes or solid bars, various materials such as steel, stainless, aluminum and copper |
| Packaging Details | Packed in stretch film firstly, and then reinforced with plywood for outer packing |
Capacity up to 120mm for Tube and 70mm in Solid Bars
Patented automatic machine head rotation cutting for pipes and bars

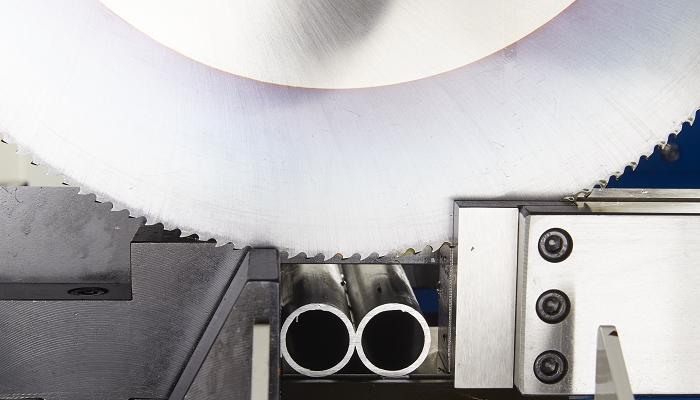

• Vertical sliding saw head ensures stable and precise cutting

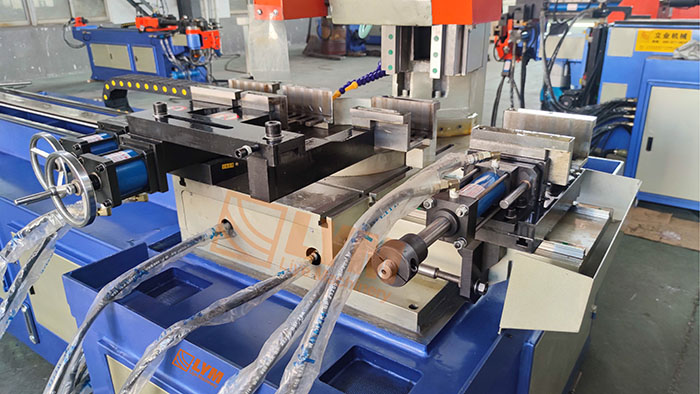

• Clamping vise provides secure material holding
Software
• Intuitive and User Friendly Interface with Touch Screen system
• Ability to program multiple cutting lengths per bar
• Large file storage
• Ability to use Flat and Bundle clamps for multiple tubes cutting
• With tailing cutting function,set the shortest crop lengths,save material

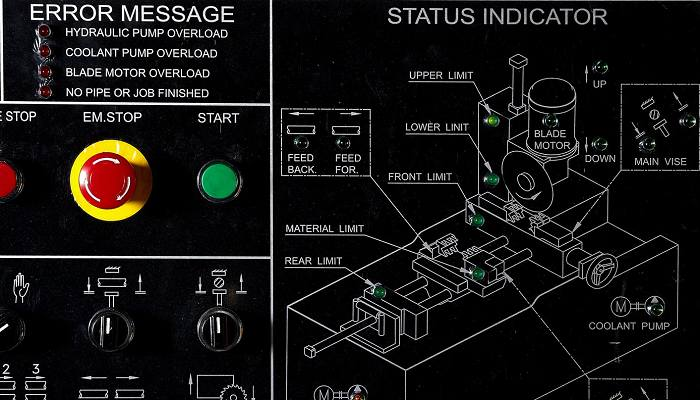

Digital Display of Feeding Length and Programmable Counter. Control Panel with Movements’ Display for Easy troubleshooting
• Digital counter for automatic operation (Cutting length / Quantity set up / Counter)
| Model | Round Tube (mm) | Square Tube (mm) | Rectangular (mm) | Solid bar (mm) | Videos (Scan code) |
|---|---|---|---|---|---|
| YJ325CNC-S-V(clamp up and down) | 70 | 70X70 | 70X90 | 45 | |
| YJ325CNC-S-H(clamp left and right) | 100 | 90X90 | 90X90 | 45 | |
| YJ355CNC-S-V(clamp up and down) | 80 | 80X80 | 80X100 | 50 | |
| YJ355CNC-S-H(clamp left and right) | 120 | 100X100 | 100X100 | 50 | |
| YJ425CNC-S-V(clamp up and down) | 90 | 90X90 | 80X100 | 70 | |
| YJ425CNC-S-H(clamp left and right) | 120 | 100X100 | 100X100 | 70 | |
| YJ425CNC-S-A(with angle cutting function) | 100 | 80X80 | |||
| YJ425CNC-S-T(lateral infeed type) |
